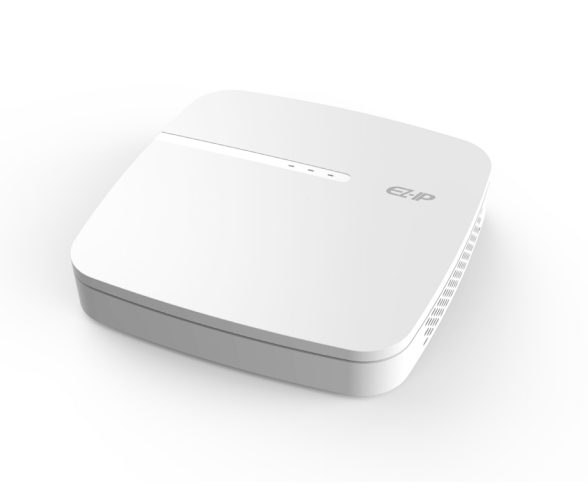

Dahua Technology EZ-IP NVR1B04-4P network video recorder 1U White
Dahua Technology

EZ-IP NVR1B04-4P network video recorder 1U White

Model NVR1B04-4PEAN 6939554946356

49 specifications
  • OSEmbedded LINUX
  • Weight430 g
  • ColourWhite
  • Video input channels4 channels
  • Maximum storage capacity6 TB
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

OS
Embedded LINUX
Weight
430 g
Colour
White
Video input channels
4 channels
Maximum storage capacity
6 TB
Ethernet LAN (RJ-45) ports
1
Brand
Dahua Technology
Model
NVR1B04-4P
Part number
NVR1B04-4P
EAN / UPC
6939554946356
Also known as
Dahua Technology EZ-IP NVR1B04-4P network video recorder 1U White

Specifications

49 specifications in 9 groups

Performance

Video input channels4 channels
Maximum resolution3840 x 2160 pixels
Supported resolutions3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Bit rate20000 Kbit/s
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Multi-screenYes
On Screen Display (OSD)Yes
Video formats supportedH.264+, H.265+
Operating system installedEmbedded LINUX
Backup functionYes
Maximum frame rate30 fps
PTZ controlYes
Playback modesBackup selection, Digital zoom, Fast play, Full screen, Next camera, Pause, Play, Previous camera, Slow play, Stop
SnapshotYes
Recording modesContinuous, Manual, Schedule, Stop
Recording time120 min

Hard drive

Maximum storage capacity6 TB
HDD interfaceSerial ATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
DC-in jackYes
Supported network protocolsHTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P

Features

Rack mountingYes
Rack capacity1U
Product colourWhite
CertificationCE: EN55032, EN55024, EN50130-4, EN60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014

Processor

Built-in processorYes
Processor cores2

Power

Power consumption (max)6 W
Output current1.25 A
Output voltage48 V
Power over Ethernet (PoE) power per port25.5 W
Total Power over Ethernet (PoE) budget50 W

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width204.6 mm
Depth206.6 mm
Height45.2 mm
Weight430 g
Package weight1.07 kg
