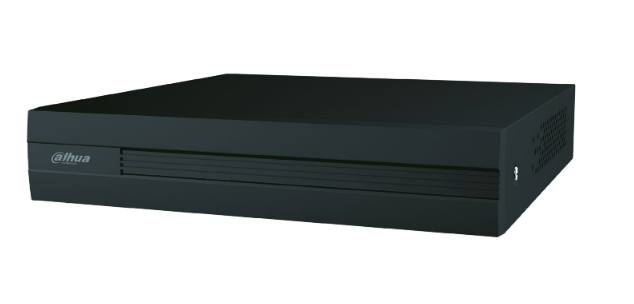

NVR1108HC-S3 network video recorder 1U Black
Model NVR1108HC-S3
37 specifications
- OSEmbedded LINUX
- Weight1.15 kg
- ColourBlack
- Video input channels8 channels
- Number of HDDs supported1
- Rack mountingYes
Overview
- OS
- Embedded LINUX
- Weight
- 1.15 kg
- Colour
- Black
- Video input channels
- 8 channels
- Number of HDDs supported
- 1
- Rack mounting
- Yes
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- NVR1108HC-S3
- Part number
- NVR1108HC-S3
- Also known as
- Dahua Technology NVR1108HC-S3 network video recorder 1U Black
Specifications
37 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 8 channels |
| Maximum resolution | 1920 x 1080 pixels |
| Supported resolutions | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Number of users | 128 user(s) |
| Two-way talk | No |
| Video motion detection | Yes |
| Number of motion detection zones | 396 |
| On Screen Display (OSD) | Yes |
| Video formats supported | AVC, H.264+, H.265+ |
| Operating system installed | Embedded LINUX |
| PTZ control | Yes |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| Maximum storage capacity | 4 TB |
| HDD interface | Serial ATA III |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Ethernet LAN data rates | 10,100 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | Yes |
| Product colour | Black |
| Certification | EN55032, EN55024, EN50130-4, EN60950-1 FCC Part 15 Subpart B, ANSI C63.4-2014 |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 196.6 mm |
| Depth | 197 mm |
| Height | 41.5 mm |
| Weight | 1.15 kg |
