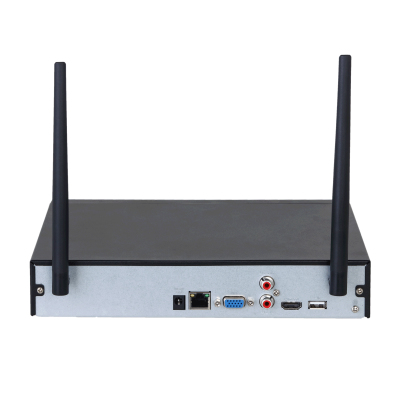

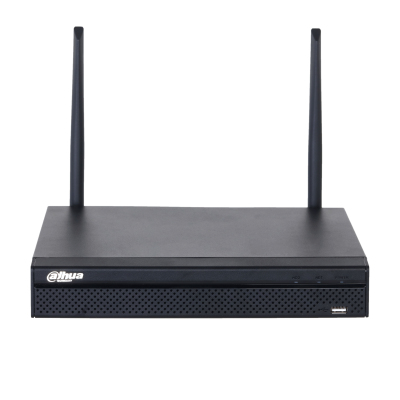

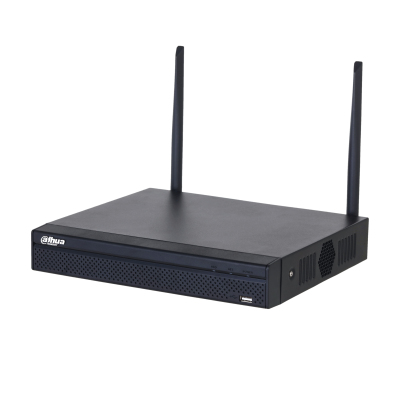

Dahua Technology Lite NVR1104HS-W-S2 network video recorder 1U Black
Dahua Technology

Lite NVR1104HS-W-S2 network video recorder 1U Black

Model NVR1104HS-W-S2

44 specifications
  • OSEmbedded LINUX
  • Weight824 g
  • ColourBlack
  • Video input channels4 channels
  • Number of HDDs installed1
  • Rack mountingYes
See all specifications

Overview

OS
Embedded LINUX
Weight
824 g
Colour
Black
Video input channels
4 channels
Number of HDDs installed
1
Rack mounting
Yes
Brand
Dahua Technology
Model
NVR1104HS-W-S2
Part number
NVR1104HS-W-S2
Also known as
Dahua Technology Lite NVR1104HS-W-S2 network video recorder 1U Black

Specifications

44 specifications in 9 groups

Performance

Video input channels4 channels
Video recording modes720p, 1080p
Video motion detectionYes
Operating system installedEmbedded LINUX
Audio codecsPCM; G711A; G711U; G726
Backup functionYes
Input bandwidth40 Mbit/s
Maximum frame rate25 fps
Output bandwidth20 Mbit/s
Video codecsSmart H.265; H.265; Smart H.264; H.264; MJPEG
Recording modesManual

Hard drive

Number of HDDs installed1
Maximum storage capacity16 TB
HDD interfaceSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100 Mbit/s
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
DC-in jackYes
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P

Features

Rack mountingYes
Rack capacity1U
LED indicatorsHDD, Network, Power
Product colourBlack
CertificationCE: EN62368-1; EN55032; EN55024; EN55035; EN61000- 3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE- RED: EN301489-1; EN 301489-17; EN300328; EN300328; EN62311; FCC ID: 47 CFR PART 15 SUBPART C

Processor

Built-in processorYes

Power

Output current1.5 A
Output voltage12 V

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome; IE 9 or later; Firefox

Operational conditions

Operating temperature (T-T)-10 - 45 °C
Operating relative humidity (H-H)10 - 93%

Weight & dimensions

Width260.3 mm
Depth247.3 mm
Height44.7 mm
Weight824 g
Package width372 mm
Package depth117 mm
Package height308 mm
Package weight1.56 kg
