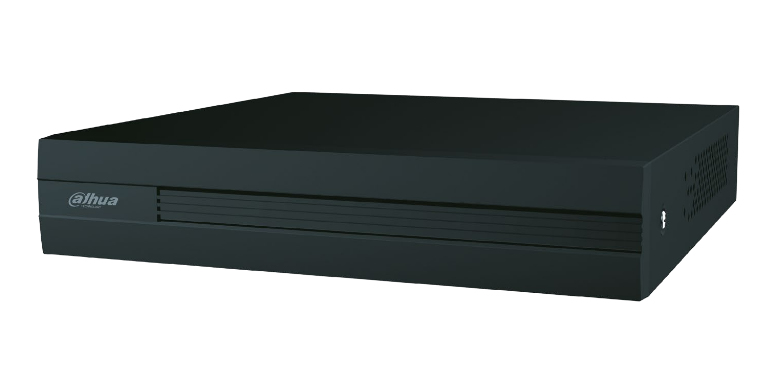

Dahua Technology NVR1104HC-4P-S3 network video recorder 1U Black
Dahua Technology

NVR1104HC-4P-S3 network video recorder 1U Black

Model NVR1104HC-4P-S3EAN 6939554951565

48 specifications
  • OSLinux
  • Weight1.46 kg
  • ColourBlack
  • Video input channels4 channels
  • Number of HDDs supported1
  • Rack mountingYes
See all specifications

Overview

OS
Linux
Weight
1.46 kg
Colour
Black
Video input channels
4 channels
Number of HDDs supported
1
Rack mounting
Yes
Brand
Dahua Technology
Model
NVR1104HC-4P-S3
Part number
NVR1104HC-4P-S3
EAN / UPC
6939554951565
Also known as
Dahua Technology NVR1104HC-4P-S3 network video recorder 1U Black

Specifications

48 specifications in 10 groups

Performance

Video input channels4 channels
Video recording modes720p, 1080p
Maximum resolution1920 x 1080 pixels
Supported resolutions1920 × 1080, 1280 × 1024, 1280 × 720
Number of users128 user(s)
Video motion detectionYes
Number of motion detection zones396
On Screen Display (OSD)Yes
Video formats supportedH.264+, H.265+
Operating system installedLinux
Backup functionYes
PTZ controlYes
Playback modesBackup selection, Digital zoom, Fast play, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Slow play

Hard drive

Number of HDDs supported1
Maximum storage capacity4 TB
HDD interfaceSerial ATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Card reader integratedNo
Built-in optical driveNo

Features

Rack mountingYes
Rack capacity1U
LED indicatorsYes
Product colourBlack
CertificationEN55032, EN55024, EN50130-4, EN60950-1 FCC Part 15 Subpart B, ANSI C63.4-2014

Processor

Built-in processorYes
Processor cores2

Display

Built-in displayNo

Power

Power consumption (max)3.61 W
Output current1.25 A
Output voltage48 V
Power over Ethernet (PoE) power per port25.5 W
Total Power over Ethernet (PoE) budget36 W

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 45 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width197 mm
Depth196.6 mm
Height41.5 mm
Weight1.46 kg
