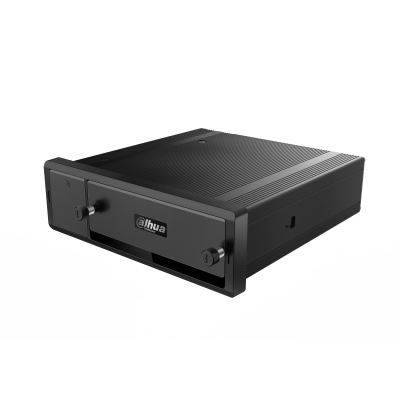

MNVR4104 Black
Model MNVR4104Part no. DHI-DAE-MNVR4104-GFWI
34 specifications
- OSEmbedded LINUX
- Weight1.92 kg
- ColourBlack
- Video input channels4 channels
- Wi-FiYes
- HDD interfaceSATA
Overview
- OS
- Embedded LINUX
- Weight
- 1.92 kg
- Colour
- Black
- Video input channels
- 4 channels
- Wi-Fi
- Yes
- HDD interface
- SATA
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- MNVR4104
- Part number
- DHI-DAE-MNVR4104-GFWI
- Also known as
- Dahua Technology MNVR4104 Black
Specifications
34 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| Alarm input channels | 8 |
| Alarm output channels | 1 |
| Maximum resolution | 800 x 600 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video formats supported | H.264, H.265 |
| Operating system installed | Embedded LINUX |
| Analog signal format system | NTSC, PAL |
| Maximum frame rate | 30 fps |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
Hard drive
| Specification | Value |
|---|---|
| HDD interface | SATA |
| HDD size | 2.5" |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| RS-232 interface | Yes |
| RS-232 ports | 3 |
| RS-485 ports | 2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | CE\FCC\EN50155\ISO7637-2\ISO16750\BIS |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10.2 W |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 190 mm |
| Height | 50 mm |
| Weight | 1.92 kg |
