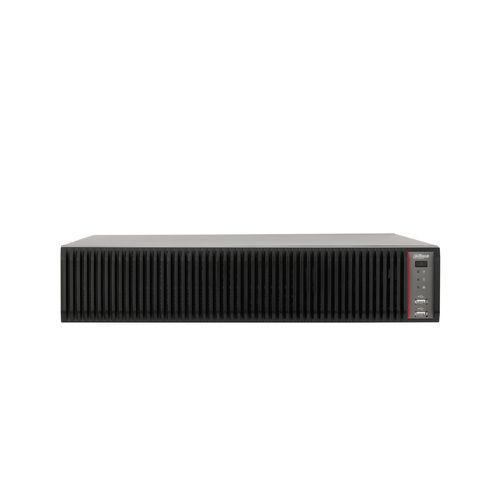

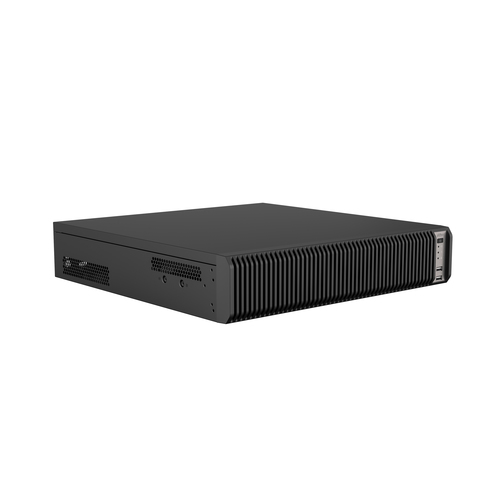

Dahua Technology WizMind IVSS7108 2U
Dahua Technology

WizMind IVSS7108 2U

Model IVSS7108Part no. DHI-IVSS7108

62 specifications
  • OSEmbedded LINUX
  • Weight7.66 kg
  • Video input channels128 channels
  • Wi-FiNo
  • Number of HDDs supported8
  • Ethernet LAN (RJ-45) ports4
See all specifications

Overview

OS
Embedded LINUX
Weight
7.66 kg
Video input channels
128 channels
Wi-Fi
No
Number of HDDs supported
8
Ethernet LAN (RJ-45) ports
4
Brand
Dahua Technology
Model
IVSS7108
Part number
DHI-IVSS7108
Also known as
Dahua Technology WizMind IVSS7108 2U

Specifications

62 specifications in 11 groups

Performance

Video input channels128 channels
Alarm input channels16
Alarm output channels8
People countingYes
Video motion detectionYes
Multi-screenYes
Audio formats supportedG.726, PCM
Video formats supportedH.264, H.265
Operating system installedEmbedded LINUX
Input bandwidth512 Mbit/s
Maximum frame rate60 fps
Output bandwidth512 Mbit/s
Playback controlsYes
Playback modesBackup selection, Digital zoom, Fast play, Forward, Frame by Frame, Full screen, Pause, Play, Reverse, Slow play, Stop
SnapshotYes
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs supported8
Maximum storage capacity16 TB
HDD interfaceSATA III
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60

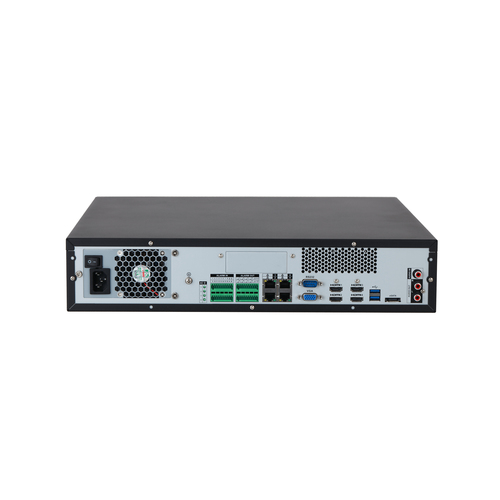

Ports & interfaces

Ethernet LAN (RJ-45) ports4
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)No
HDMI outputYes
HDMI ports quantity4
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs2
eSATA ports quantity1
SATA revision3.0
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
eSATAYes
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Features

Rack mountingYes
Rack capacity2U
CertificationCE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B UL 60950-1

Processor

Built-in processorYes

Display

Built-in displayYes

Power

Power consumption (max)100 W
Power consumption (typical)35 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

System requirements

Browser supportedChrome, PCAPP, IE9 or higher, Firefox

Operational conditions

Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)30 - 85%

Weight & dimensions

Width439.7 mm
Depth446.2 mm
Height89 mm
Weight7.66 kg
Package width562 mm
Package depth599 mm
Package height235 mm
Package typeBox
Package weight10.2 kg
