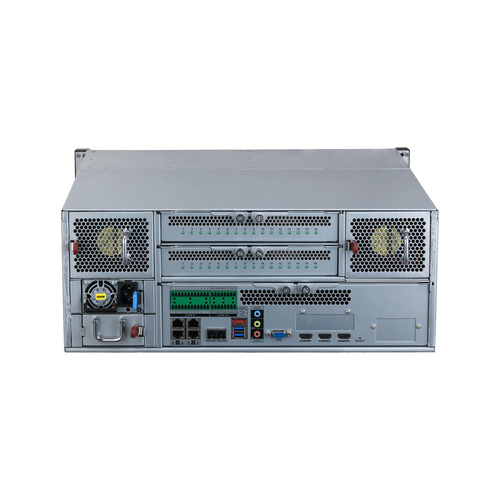

WizMind IVSS7024-16M 4U
Dahua Technology

WizMind IVSS7024-16M 4U

Model IVSS7024-16MPart no. DHI-IVSS7024-16M

64 specifications
  • OSEmbedded LINUX
  • Weight17 kg
  • Video input channels256 channels
  • Wi-FiNo
  • Number of HDDs supported24
  • Ethernet LAN (RJ-45) ports4
See all specifications

Overview

OS
Embedded LINUX
Weight
17 kg
Video input channels
256 channels
Wi-Fi
No
Number of HDDs supported
24
Ethernet LAN (RJ-45) ports
4
Brand
Dahua Technology
Model
IVSS7024-16M
Part number
DHI-IVSS7024-16M
Also known as
Dahua Technology WizMind IVSS7024-16M 4U

Specifications

64 specifications in 11 groups

Performance

Video input channels256 channels
Alarm input channels16
Alarm output channels8
People countingYes
Video motion detectionYes
Multi-screenYes
Audio formats supportedG.726, PCM
Video formats supportedH.264, H.265
Operating system installedEmbedded LINUX
Backup functionYes
Input bandwidth512 Mbit/s
Maximum frame rate60 fps
Output bandwidth128 Mbit/s
Playback controlsYes
Playback modesBackup selection, Digital zoom, Fast play, Forward, Frame by Frame, Full screen, Pause, Play, Reverse, Slow play, Stop
SnapshotYes
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs supported24
Maximum storage capacity16 TB
HDD interfaceSATA III, Serial Attached SCSI (SAS)
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60

Ports & interfaces

Ethernet LAN (RJ-45) ports4
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)No
HDMI outputYes
HDMI ports quantity3
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs1
eSATA ports quantity1
SATA revision3.0
Internal SATA ports quantity24
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
eSATAYes
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Features

Rack mountingYes
Rack capacity4U
CertificationCE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1 FCC: Part 15 Subpart A UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07

Processor

Built-in processorYes

Display

Built-in displayYes

Power

Power consumption (max)288 W
Power consumption (typical)200 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

System requirements

Browser supportedChrome, PCAPP, IE9 or higher, Firefox

Operational conditions

Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)30 - 85%

Weight & dimensions

Width446 mm
Depth514.5 mm
Height175 mm
Weight17 kg
Package width689 mm
Package depth779 mm
Package height552 mm
Package typeBox
Package weight18 kg
