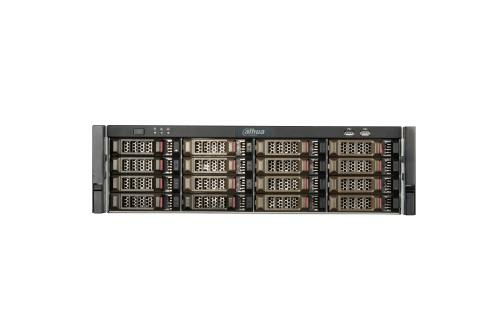

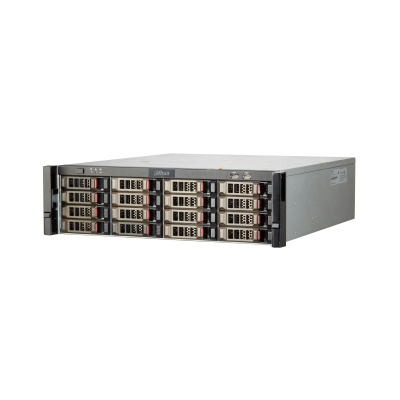

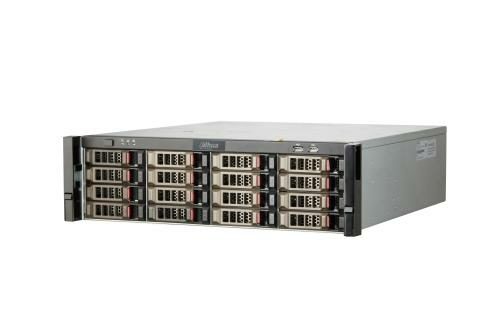

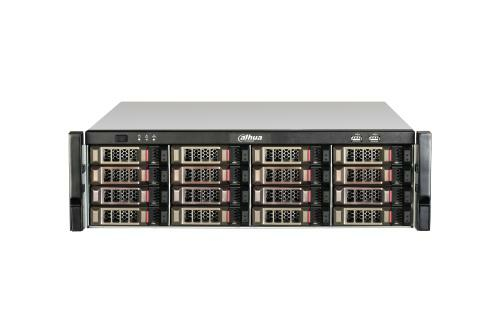

Dahua Technology WizMind IVSS7016-4I network video recorder 3U
Dahua Technology

WizMind IVSS7016-4I network video recorder 3U

Model IVSS7016-4I

45 specifications
  • OSEmbedded LINUX
  • Weight16 kg
  • Video input channels256 channels
  • Number of HDDs supported16
  • Ethernet LAN (RJ-45) ports4
  • Rack mountingYes
See all specifications

Overview

OS
Embedded LINUX
Weight
16 kg
Video input channels
256 channels
Number of HDDs supported
16
Ethernet LAN (RJ-45) ports
4
Rack mounting
Yes
Brand
Dahua Technology
Model
IVSS7016-4I
Part number
IVSS7016-4I
Also known as
Dahua Technology WizMind IVSS7016-4I network video recorder 3U

Specifications

45 specifications in 7 groups

Performance

Video input channels256 channels
Alarm input channels16
Alarm output channels8
Video motion detectionYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726, PCM
Video formats supportedH.264, H.264+, H.265+
Operating system installedEmbedded LINUX
Input bandwidth512 Mbit/s
Output bandwidth128 Mbit/s
PTZ controlYes
Face detectionYes

Hard drive

Number of HDDs supported16
HDD interfaceSATA III, Serial Attached SCSI (SAS)
RAID supportYes
RAID levels0, 1, 5, 6, 10

Ports & interfaces

Ethernet LAN (RJ-45) ports4
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI outputYes
HDMI ports quantity3
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
eSATA ports quantity1
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Features

Rack mountingYes
Rack capacity3U
CertificationCE, FCC, UL

Power

Power consumption (max)292 W
AC input voltage100 - 240 V
AC input frequency50 Hz

Operational conditions

Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)30 - 85%

Weight & dimensions

Width444.8 mm
Depth522.4 mm
Height133.2 mm
Weight16 kg
Package width689 mm
Package depth779 mm
Package height464 mm
Package weight17 kg
