Ultra IVSS7016 3U
Dahua Technology

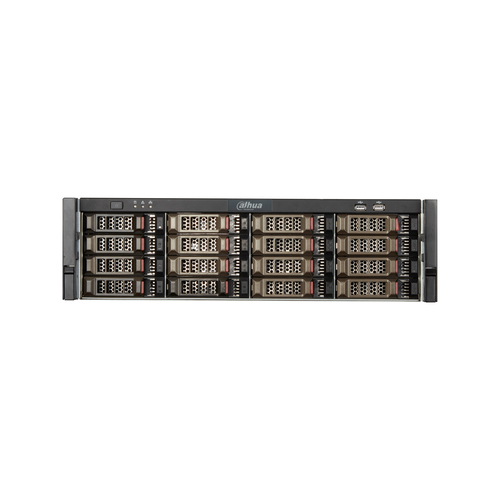

Ultra IVSS7016 3U

Model IVSS7016Part no. DHI-IVSS7016

65 specifications
  • OSEmbedded LINUX
  • Weight16 kg
  • Video input channels256 channels
  • Wi-FiNo
  • Number of HDDs supported16
  • Ethernet LAN (RJ-45) ports4
See all specifications

Overview

OS
Embedded LINUX
Weight
16 kg
Video input channels
256 channels
Wi-Fi
No
Number of HDDs supported
16
Ethernet LAN (RJ-45) ports
4
Brand
Dahua Technology
Model
IVSS7016
Part number
DHI-IVSS7016
Also known as
Dahua Technology Ultra IVSS7016 3U

Specifications

65 specifications in 11 groups

Performance

Video input channels256 channels
Alarm input channels16
Alarm output channels8
People countingYes
Video motion detectionYes
Multi-screenYes
Audio formats supportedG.726, PCM
Video formats supportedH.264, H.265
Operating system installedEmbedded LINUX
Backup functionYes
Input bandwidth768 Mbit/s
Maximum frame rate60 fps
Output bandwidth768 Mbit/s
Playback controlsYes
Playback modesBackup selection, Digital zoom, Fast play, Forward, Frame by Frame, Full screen, Pause, Play, Reverse, Stop
SnapshotYes
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs supported16
Maximum storage capacity16 TB
HDD interfaceSATA III, Serial Attached SCSI (SAS)
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60

Ports & interfaces

Ethernet LAN (RJ-45) ports4
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)No
HDMI outputYes
HDMI ports quantity3
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs1
eSATA ports quantity1
SATA revision3.0
Internal SATA ports quantity16
Audio output1-channel, speaker output, audio linkage output
RS-232 interfaceYes
RS-232 ports1
RS-485 ports1
eSATAYes
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Features

Rack mountingYes
Rack capacity3U
CertificationCE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B UL 60950-1

Processor

Built-in processorYes

Display

Built-in displayYes

Power

Power consumption (max)292 W
Power consumption (typical)100 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

System requirements

Browser supportedChrome, PCAPP, IE9 or higher, Firefox

Operational conditions

Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)30 - 85%

Weight & dimensions

Width444.8 mm
Depth522.4 mm
Height133.2 mm
Weight16 kg
Package width689 mm
Package depth779 mm
Package height464 mm
Package typeBox
Package weight17 kg
