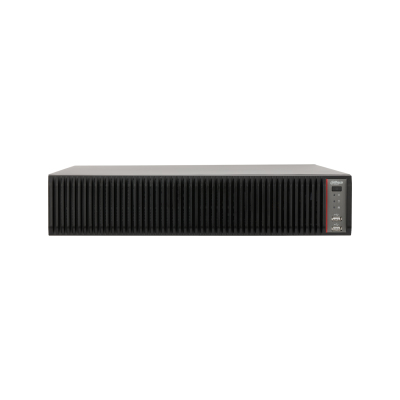

IVSS7008-1T network video recorder 2U Black
Model IVSS7008-1T
35 specifications
- Weight8.55 kg
- ColourBlack
- Video input channels128 channels
- Maximum storage capacity10 TB
- Ethernet LAN (RJ-45) ports4
- Rack mountingYes
Overview
- Weight
- 8.55 kg
- Colour
- Black
- Video input channels
- 128 channels
- Maximum storage capacity
- 10 TB
- Ethernet LAN (RJ-45) ports
- 4
- Rack mounting
- Yes
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- IVSS7008-1T
- Part number
- IVSS7008-1T
- Also known as
- Dahua Technology IVSS7008-1T network video recorder 2U Black
Specifications
35 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 128 channels |
| Alarm input channels | 16 |
| Alarm output channels | 8 |
| Number of simultaneously playbacked channels | 16 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | HDMI1/2/3 : 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 VGA1/2 : 1920 × 1080 , 1280 × 1024, 1280 × 720 |
| On Screen Display (OSD) | Yes |
| Input bandwidth | 320 Mbit/s |
| Recording modes | Schedule |
Hard drive
| Specification | Value |
|---|---|
| Maximum storage capacity | 10 TB |
| RAID support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| HDMI output | Yes |
| HDMI ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) output ports | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 2 |
| RS-232 interface | Yes |
| RS-485 ports | 1 |
| eSATA | Yes |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 2U |
| Product colour | Black |
| Certification | CE FCC UL |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor cores | 2 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439.7 mm |
| Depth | 446.2 mm |
| Height | 90.8 mm |
| Weight | 8.55 kg |
