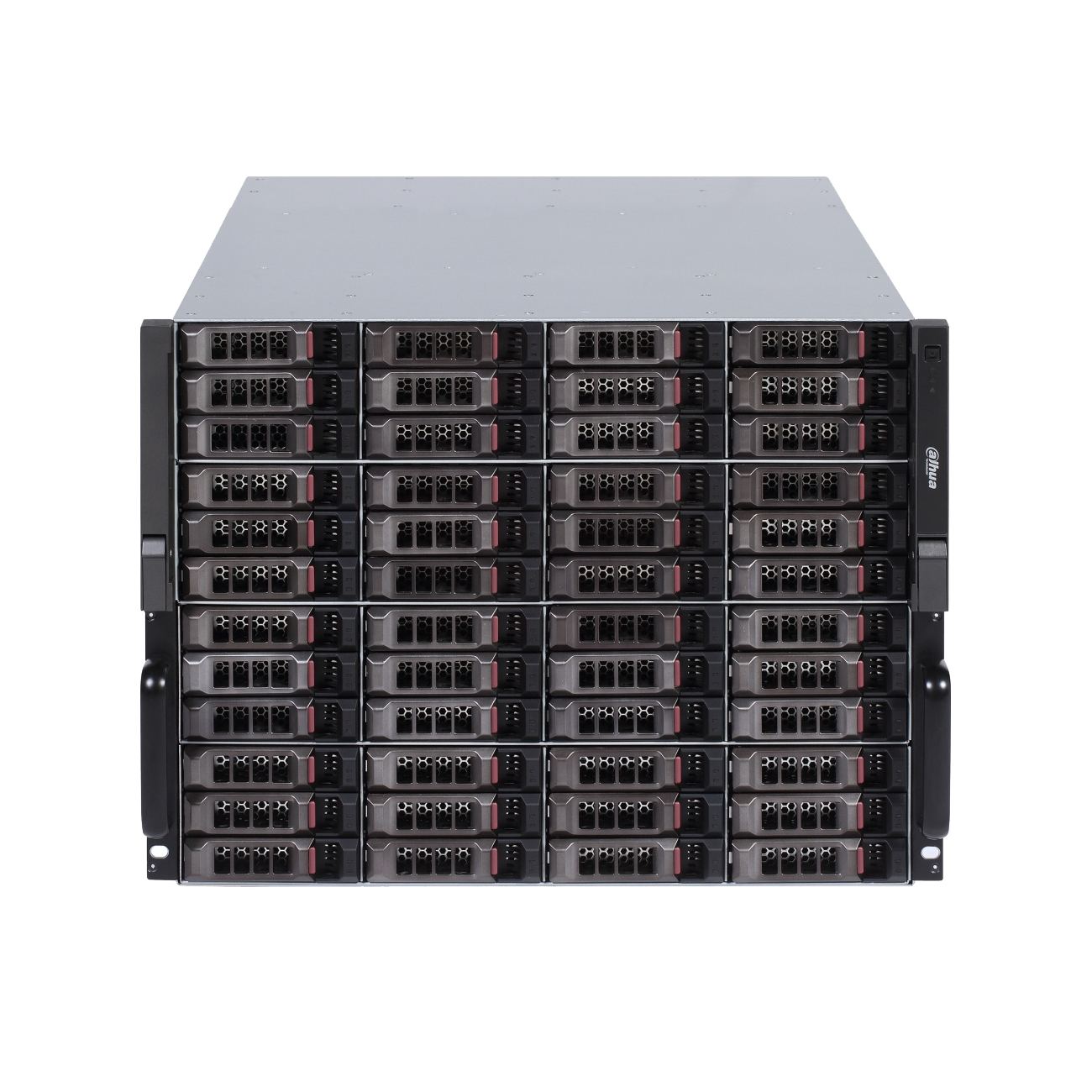

Dahua Technology EVS5048S-R network video recorder Black
Dahua Technology

EVS5048S-R network video recorder Black

Model EVS5048S-R

31 specifications
  • Memory4000 MB
  • OSEmbedded LINUX
  • Weight50 kg
  • ColourBlack
  • Video input channels320 channels
  • Wi-FiNo
See all specifications

Overview

Memory
4000 MB
OS
Embedded LINUX
Weight
50 kg
Colour
Black
Video input channels
320 channels
Wi-Fi
No
Brand
Dahua Technology
Model
EVS5048S-R
Part number
EVS5048S-R
Also known as
Dahua Technology EVS5048S-R network video recorder Black

Specifications

31 specifications in 9 groups

Performance

Video input channels320 channels
Internal memory4000 MB
Number of users128 user(s)
Operating system installedEmbedded LINUX
Number of fans1 fan(s)

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed48
Maximum storage capacity10 TB
HDD interfaceSATA
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60

Ports & interfaces

Ethernet LAN (RJ-45) ports5
Ethernet LAN data rates10,100,1000 Mbit/s
eSATA ports quantity1
RS-232 interfaceYes
eSATAYes

Features

Product colourBlack

Processor

Built-in processorYes

Power

Power consumption (max)950 W
Power consumption (typical)175 W
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80%
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width482.6 mm
Depth558.5 mm
Height347.8 mm
Weight50 kg
Package weight70 kg
