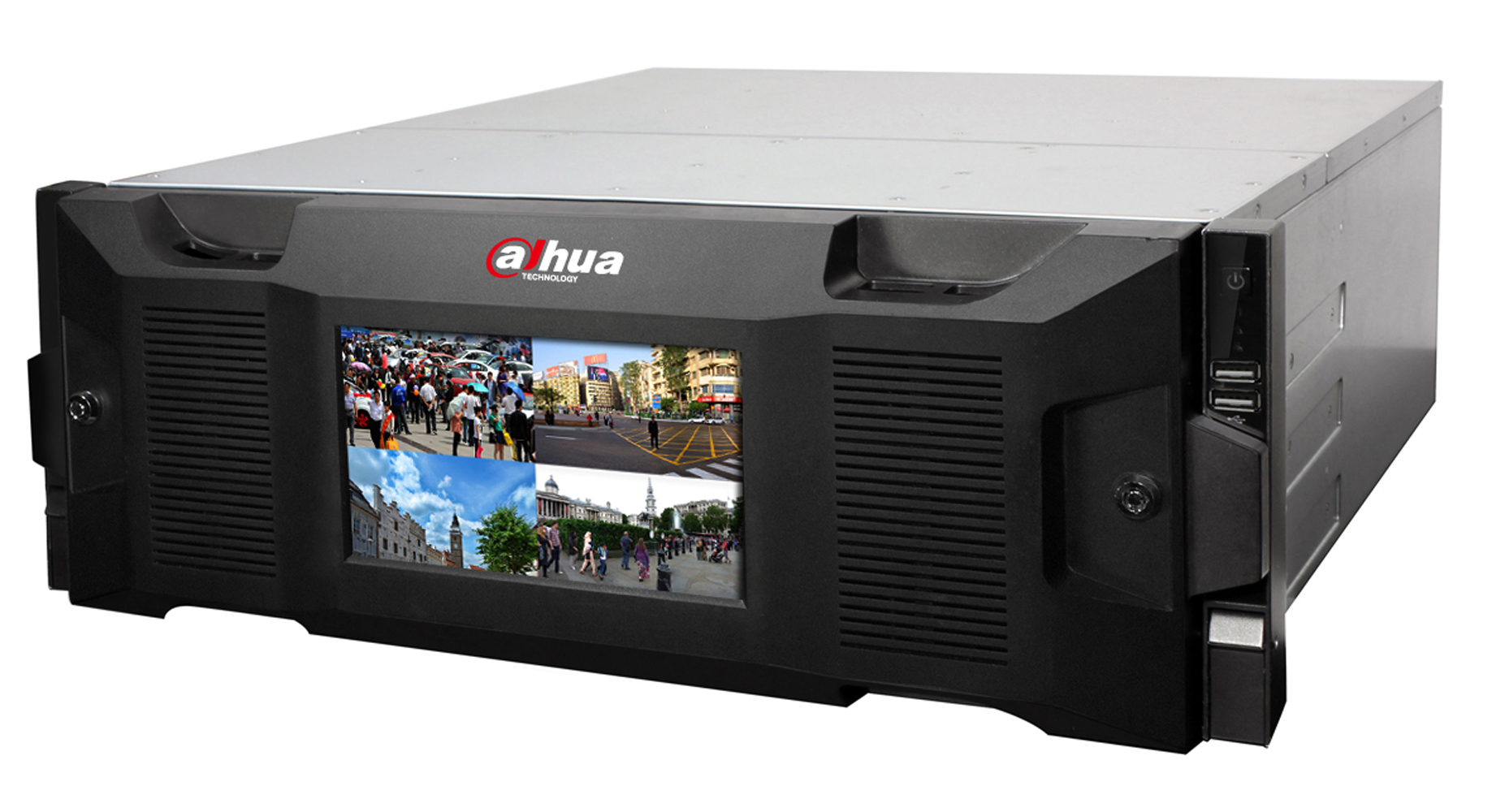

Pro DHI-NVR7A24DR-256 network video recorder 4U Black
Model DHI-NVR7A24DR-256Part no. DHI-NVR7A24DR-256-24T
33 specifications
- Memory8192 MB
- ColourBlack
- Video input channels256 channels
- Number of HDDs supported24
- Ethernet LAN (RJ-45) ports4
- Rack mountingYes
Overview
- Memory
- 8192 MB
- Colour
- Black
- Video input channels
- 256 channels
- Number of HDDs supported
- 24
- Ethernet LAN (RJ-45) ports
- 4
- Rack mounting
- Yes
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- DHI-NVR7A24DR-256
- Part numbers
- DHI-NVR7A24DR-256-24T, DHI-NVR7A24DR-256, DHI-NVR7A24DR-256-12T, DHI-NVR7A24DR-256-8T, DHI-NVR7A24DR-256-2T, DHI-NVR7A24DR-256-4T
- Also known as
- Dahua Technology Pro DHI-NVR7A24DR-256 network video recorder 4U Black
Specifications
33 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 256 channels |
| Internal memory | 8192 MB |
| Internal memory type | DDR3 |
| Video formats supported | H.264, H.265, M-JPEG |
| Backup function | Yes |
| DHCP client | Yes |
| PTZ control | Yes |
| Split screen | Yes |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 24 |
| Total installed storage capacity | 0 GB |
| Maximum storage capacity | 96 TB |
| HDD interface | Serial ATA |
| RAID support | Yes |
| RAID levels | 0, 1, 5 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| HDMI output | Yes |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA | Yes |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 4U |
| Product colour | Black |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 494 mm |
| Height | 175 mm |
