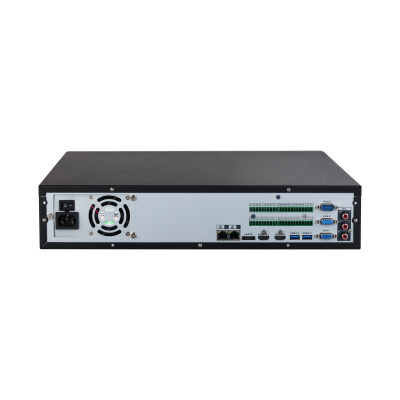

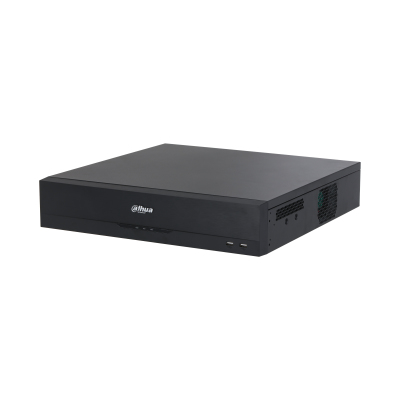

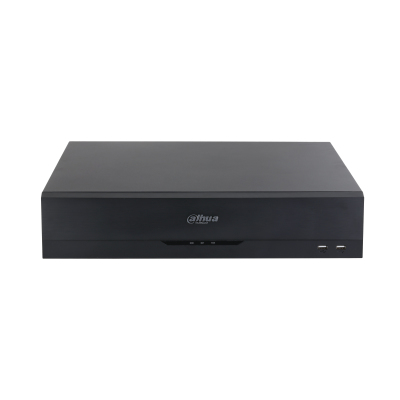

Dahua Technology DHI-NVR5864-EI network video recorder Black
Dahua Technology

DHI-NVR5864-EI network video recorder Black

Model DHI-NVR5864-EIEAN 6923172586063

43 specifications
  • Storage0 GB
  • OSEmbedded LINUX
  • Weight6.4 kg
  • ColourBlack
  • Video input channels64 channels
  • Wi-FiNo
See all specifications

Overview

Storage
0 GB
OS
Embedded LINUX
Weight
6.4 kg
Colour
Black
Video input channels
64 channels
Wi-Fi
No
Brand
Dahua Technology
Model
DHI-NVR5864-EI
Part number
DHI-NVR5864-EI
EAN / UPC
6923172586063
Also known as
Dahua Technology DHI-NVR5864-EI network video recorder Black

Specifications

43 specifications in 10 groups

Performance

Video input channels64 channels
Alarm input channels16
Alarm output channels8
Video recording modes1080p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720
Operating system installedEmbedded LINUX
Backup functionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported8
Maximum storage capacity128 TB
HDD interfaceSATA
RAID supportYes
RAID levels0, 1, 5, 6, 10

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity2
USB 2.0 ports quantity2
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
RS-232 ports1
RS-485 ports2
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

Features

Rack mountingYes
Product colourBlack

Processor

Built-in processorYes

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome;IE;Safari;Edge;Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width439.9 mm
Depth457.9 mm
Height89 mm
Weight6.4 kg
Package width570 mm
Package depth570 mm
Package height226 mm
Package weight9.01 kg
