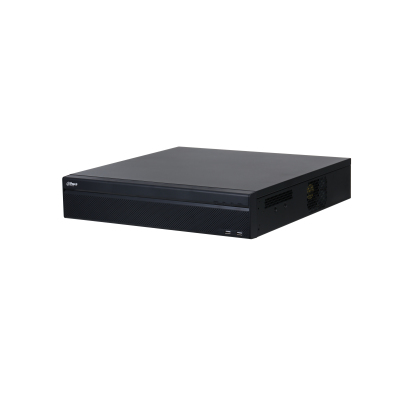

Dahua Technology Pro DHI-NVR5832-16P-4KS2E network video recorder Black

Dahua Technology

Pro DHI-NVR5832-16P-4KS2E network video recorder Black

Model DHI-NVR5832-16P-4KS2EEAN 6939554939099

42 specifications

Memory10000 MB
Storage10 TB
Weight7 kg
ColourBlack
Video input channels1 channels
Wi-FiYes

See all specifications

Overview

Memory: 10000 MB
Storage: 10 TB
Weight: 7 kg
Colour: Black
Video input channels: 1 channels
Wi-Fi: Yes

Brand: Dahua Technology
Category: Network Video Recorders (NVR)
Model: DHI-NVR5832-16P-4KS2E
Part number: DHI-NVR5832-16P-4KS2E
EAN / UPC: 6939554939099
Also known as: Dahua Technology Pro DHI-NVR5832-16P-4KS2E network video recorder Black

Specifications

42 specifications in 10 groups

Performance

Specification	Value
Video input channels	1 channels
Alarm input channels	16
Video recording modes	720p, 1080p, 2160p
Maximum resolution	3840 x 2160 pixels
Internal memory	10000 MB
Multi-screen	Yes

Wireless LAN features

Specification	Value
Wi-Fi	Yes

Hard drive

Specification	Value
Number of HDDs installed	8
HDD capacity	10 TB
Number of HDDs supported	8
Maximum storage capacity	10000 TB
HDD interface	Serial ATA III

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	16
USB 2.0 ports quantity	4
eSATA ports quantity	1
RS-232 interface	Yes
RS-232 ports	1
RS-485 ports	1
eSATA	Yes

Features

Specification	Value
On/off switch	Yes
Product colour	Black
Certification	EN55032, EN55024, EN50130-4, EN60950-1 Part 15 Subpart B, ANSI C63.4-2014 UL 60950-1

Processor

Specification	Value
Built-in processor	Yes
Processor cores	4

Power

Specification	Value
Power consumption (max)	150 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE) power per port	25.5 W
Total Power over Ethernet (PoE) budget	150 W

System requirements

Specification	Value
Linux operating systems supported	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	451.5 mm
Height	95 mm
Weight	7 kg
Package width	9500 mm
Package type	Box
