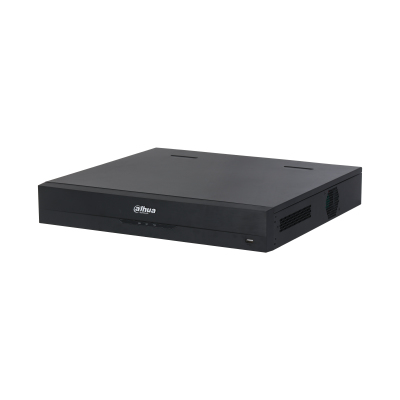

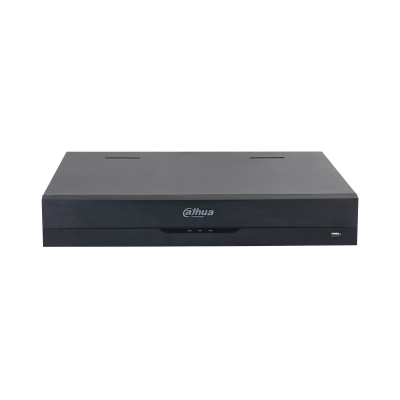

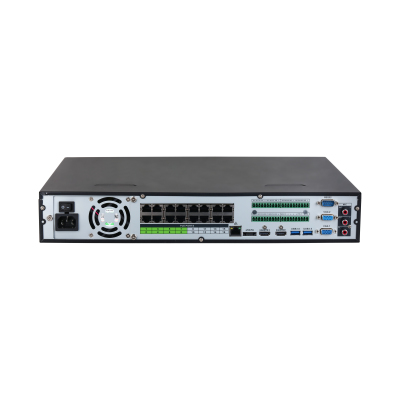

Dahua Technology WizSense DHI-NVR5416-16P-EI network video recorder 1.5U Black
Dahua Technology

WizSense DHI-NVR5416-16P-EI network video recorder 1.5U Black

Model DHI-NVR5416-16P-EIEAN 6923172589859

52 specifications
  • OSEmbedded LINUX
  • Weight4.82 kg
  • ColourBlack
  • Video input channels16 channels
  • Wi-FiNo
  • Number of HDDs supported4
See all specifications

Overview

OS
Embedded LINUX
Weight
4.82 kg
Colour
Black
Video input channels
16 channels
Wi-Fi
No
Number of HDDs supported
4
Brand
Dahua Technology
Model
DHI-NVR5416-16P-EI
Part number
DHI-NVR5416-16P-EI
EAN / UPC
6923172589859
Also known as
Dahua Technology WizSense DHI-NVR5416-16P-EI network video recorder 1.5U Black

Specifications

52 specifications in 9 groups

Performance

Video input channels16 channels
Alarm input channels16
Alarm output channels6
Video recording modes720p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Audio formats supportedG.711 A-law, G.711 μ-law, G.726, PCM
Video formats supportedH.265+, H.265, H.264+, H.264, M-JPEG
Operating system installedEmbedded LINUX
Backup functionYes
Maximum frame rate30 fps
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs supported4
Maximum storage capacity16 TB
HDD interfaceSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
HDMI ports quantity2
USB 2.0 ports quantity1
VGA (D-Sub) output ports2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Audio RCA inputs1
Audio RCA outputs2
Internal SATA ports quantity4
RS-232 ports1
RS-485 ports1
eSATAYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

Features

Rack mountingYes
Rack capacity1.5U
Product colourBlack

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power over Ethernet (PoE) power per port25.5 W
Total Power over Ethernet (PoE) budget150 W

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome;IE;Safari;Edge;Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width440 mm
Depth415.1 mm
Height70 mm
Weight4.82 kg
Package width530 mm
Package depth500 mm
Package height210 mm
Package weight7.09 kg
