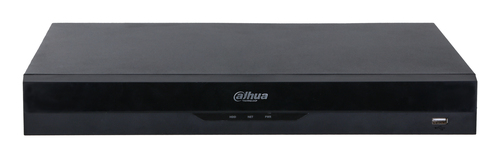

Dahua Technology DHI-NVR5216-8P-EI2 network video recorder 1U Black
Dahua Technology

DHI-NVR5216-8P-EI2 network video recorder 1U Black

Model DHI-NVR5216-8P-EI2

45 specifications
  • Storage0 GB
  • OSEmbedded LINUX
  • Weight2.5 kg
  • ColourBlack
  • Video input channels16 channels
  • Wi-FiNo
See all specifications

Overview

Storage
0 GB
OS
Embedded LINUX
Weight
2.5 kg
Colour
Black
Video input channels
16 channels
Wi-Fi
No
Brand
Dahua Technology
Model
DHI-NVR5216-8P-EI2
Part number
DHI-NVR5216-8P-EI2
Also known as
Dahua Technology DHI-NVR5216-8P-EI2 network video recorder 1U Black

Specifications

45 specifications in 10 groups

Performance

Video input channels16 channels
Alarm input channels4
Alarm output channels2
Maximum resolution7680 x 4320 pixels
Supported resolutions7680×4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Video motion detectionYes
Operating system installedEmbedded LINUX
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported2
Maximum storage capacity20 TB
HDD interfaceSATA

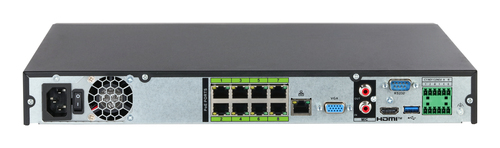

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
HDMI ports quantity1
USB 2.0 ports quantity1
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio RCA inputs1
Audio RCA outputs1
RS-232 interfaceYes
RS-485 ports1
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search; iSCSI

Features

Rack mountingYes
Rack capacity1U
Product colourBlack

Processor

Built-in processorYes

Power

AC input voltage100 - 240 V
AC input frequency50/60 Hz

System requirements

Browser supportedChrome; IE; Safari; Edge; Firefox

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width375 mm
Depth329.6 mm
Height53 mm
Weight2.5 kg
Package width451 mm
Package depth147 mm
Package height425 mm
Package weight3.96 kg
