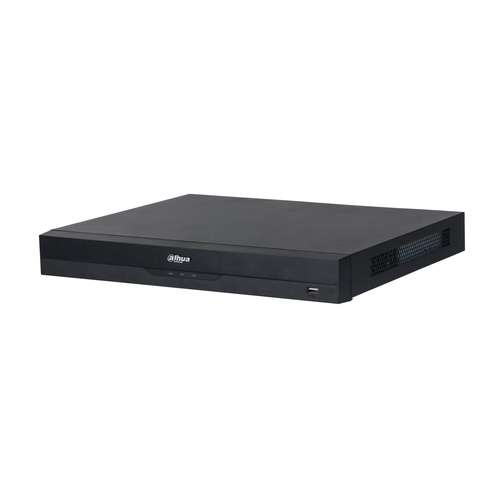

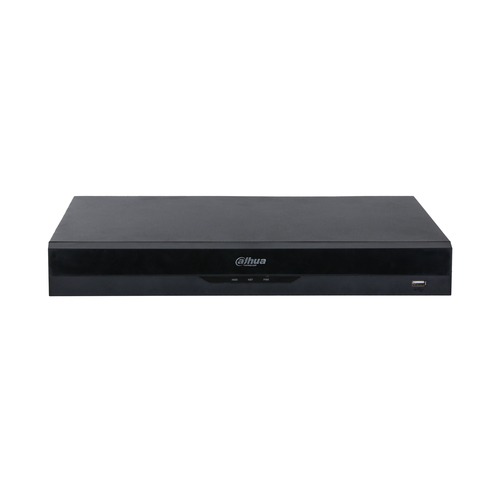

Dahua Technology WizSense DHI-NVR5216-8P-EI network video recorder Black
Dahua Technology

WizSense DHI-NVR5216-8P-EI network video recorder Black

Model DHI-NVR5216-8P-EIEAN 6923172589811

45 specifications
  • OSEmbedded LINUX
  • Weight2.57 kg
  • ColourBlack
  • Video input channels16 channels
  • Number of HDDs supported2
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

OS
Embedded LINUX
Weight
2.57 kg
Colour
Black
Video input channels
16 channels
Number of HDDs supported
2
Ethernet LAN (RJ-45) ports
1
Brand
Dahua Technology
Model
DHI-NVR5216-8P-EI
Part number
DHI-NVR5216-8P-EI
EAN / UPC
6923172589811
Also known as
Dahua Technology WizSense DHI-NVR5216-8P-EI network video recorder Black

Specifications

45 specifications in 9 groups

Performance

Video input channels16 channels
Alarm input channels4
Alarm output channels2
Video recording modes720p, 1080p, 2160p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
Video motion detectionYes
Audio formats supportedG.711 A-law, G.711 μ-law, G.726, PCM
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG
Operating system installedEmbedded LINUX
Face detectionYes

Hard drive

Number of HDDs supported2
Maximum storage capacity20 TB
HDD interfaceSATA

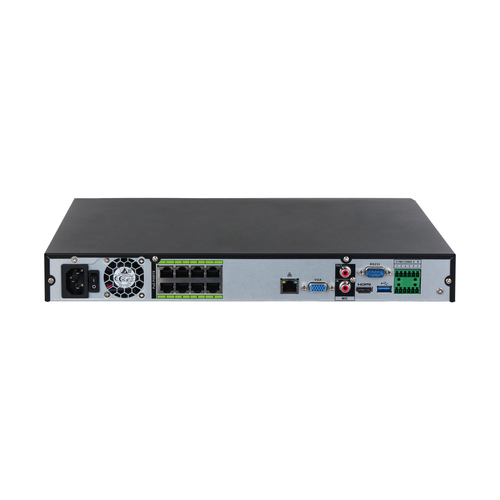

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity8
HDMI ports quantity1
USB 2.0 ports quantity1
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
RS-232 interfaceYes
RS-485 ports1

Features

Rack mountingYes
Compatible productsDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec
On/off switchYes
Product colourBlack
CertificationFCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014

Processor

Built-in processorYes

Power

AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Power over Ethernet (PoE) power per port25.5 W

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 65 °C
Operating relative humidity (H-H)10 - 93%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width375 mm
Depth329.4 mm
Height53 mm
Weight2.57 kg
Package width451 mm
Package depth147 mm
Package height425 mm
Package weight3.8 kg
