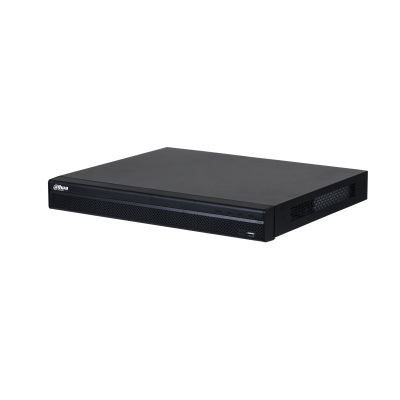

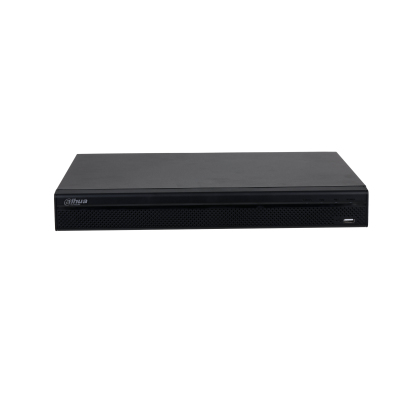

Dahua Technology Lite DHI-NVR4232-4KS2/L network video recorder 1U Black
Dahua Technology

Lite DHI-NVR4232-4KS2/L network video recorder 1U Black

Model DHI-NVR4232-4KS2/L

55 specifications
  • OSEmbedded LINUX
  • Weight1.5 kg
  • ColourBlack
  • Video input channels32 channels
  • Wi-FiNo
  • Number of HDDs installed0
See all specifications

Overview

OS
Embedded LINUX
Weight
1.5 kg
Colour
Black
Video input channels
32 channels
Wi-Fi
No
Number of HDDs installed
0
Brand
Dahua Technology
Model
DHI-NVR4232-4KS2/L
Part number
DHI-NVR4232-4KS2/L
Also known as
Dahua Technology Lite DHI-NVR4232-4KS2/L network video recorder 1U Black

Specifications

55 specifications in 10 groups

Performance

Video input channels32 channels
Alarm input channels4
Alarm output channels2
Video recording modes1080p
Resolution at capture speed1920x1080@30fps
Data transfer rate (single HDD mode)128 Mbit/s
People countingYes
Video motion detectionYes
Multi-screenYes
On Screen Display (OSD)Yes
Audio formats supportedPCM
Video formats supportedH.264
Image formats supportedMJPEG
Operating system installedEmbedded LINUX
Backup functionYes
Playback controlsYes
Playback modesPause, Play, Slow play, Stop
SnapshotYes
Recording modesManual
Face detectionYes

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
Number of HDDs supported2
HDD interfaceSATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
SATA revision3.0
Internal SATA ports quantity2
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search; P2P

Features

Rack mountingYes
Rack capacity1U
Brand compatibilityAny brand
Product colourBlack
CertificationEN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC

Processor

Built-in processorYes

Power

Power consumption (typical)5.6 W
Output current4 A
Output voltage12 V

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 93%

Weight & dimensions

Width375 mm
Depth282.9 mm
Height53 mm
Weight1.5 kg
Package width433 mm
Package depth140 mm
Package height363 mm
Package weight2.6 kg
