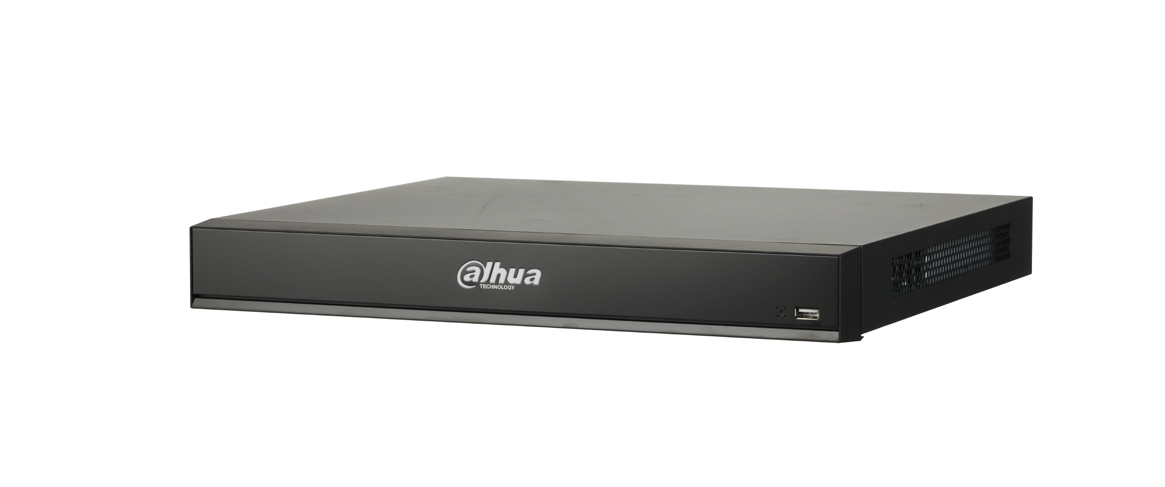

Dahua Technology DHI-NVR4216-16P-I 1U Black
Dahua Technology

DHI-NVR4216-16P-I 1U Black

Model DHI-NVR4216-16P-IPart no. NVR4216-16P-I

50 specifications
  • Storage0 GB
  • OSEmbedded LINUX
  • Weight2.68 kg
  • ColourBlack
  • Video input channels16 channels
  • Wi-FiNo
See all specifications

Overview

Storage
0 GB
OS
Embedded LINUX
Weight
2.68 kg
Colour
Black
Video input channels
16 channels
Wi-Fi
No
Brand
Dahua Technology
Model
DHI-NVR4216-16P-I
Part number
NVR4216-16P-I
Also known as
Dahua Technology DHI-NVR4216-16P-I 1U Black

Specifications

50 specifications in 10 groups

Performance

Video input channels16 channels
Alarm input channels4
Alarm output channels2
Maximum resolution3840 x 2160 pixels
Supported resolutions3840 x 2160, 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
Number of users128 user(s)
Two-way talkYes
Video motion detectionYes
Number of motion detection zones396
Video loss detectionYes
Multi-screenYes
Operating system installedEmbedded LINUX
Backup functionYes
Input bandwidth200 Mbit/s
PTZ controlYes
Video codecsSmart H.265+/H.265/Smart H.264+/H.264/MJPEG

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported2
Maximum storage capacity16000 TB
HDD interfaceSerial ATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports17
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity16
HDMI ports quantity1
USB 2.0 ports quantity1
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
RS-232 interfaceYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, P2P

Features

Rack mountingYes
Rack capacity1U
Product colourBlack
CertificationCE EN55035, EN55032, EN55024, EN50130-4, EN60950-1 FCC 15 B, ANSI C63.4-2014 UL 60950-1

Processor

Built-in processorYes

Power

Power consumption (typical)6.1 W
AC input voltage100 - 240 V
Power over Ethernet (PoE) power per port25.5 W
Total Power over Ethernet (PoE) budget130 W

System requirements

Mobile operating systems supportedAndroid, iOS

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Width375 mm
Depth321 mm
Height53.8 mm
Weight2.68 kg
Package weight4.02 kg
