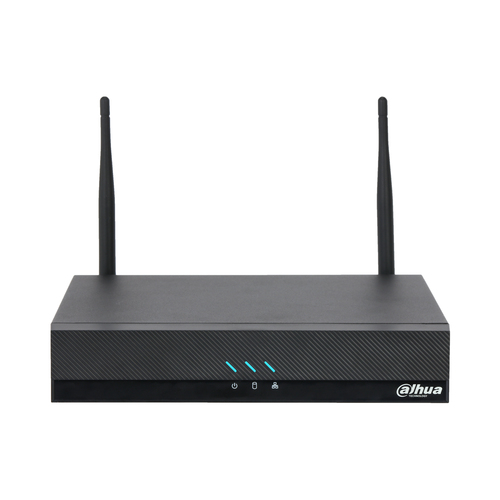

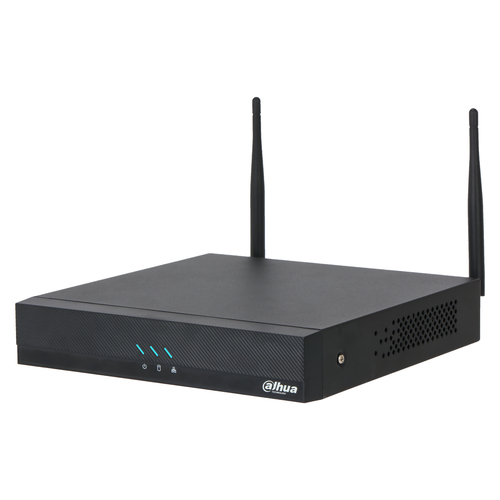

DHI-NVR2104HC-W network video recorder 1U Black
Model DHI-NVR2104HC-W
34 specifications
- Storage0 GB
- OSEmbedded LINUX
- Weight570 g
- ColourBlack
- Video input channels4 channels
- Wi-FiYes
Overview
- Storage
- 0 GB
- OS
- Embedded LINUX
- Weight
- 570 g
- Colour
- Black
- Video input channels
- 4 channels
- Wi-Fi
- Yes
- Brand
- Dahua Technology
- Category
- Network Video Recorders (NVR)
- Model
- DHI-NVR2104HC-W
- Part number
- DHI-NVR2104HC-W
- Also known as
- Dahua Technology DHI-NVR2104HC-W network video recorder 1U Black
Specifications
34 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Operating system installed | Embedded LINUX |
| Backup function | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Number of HDDs supported | 1 |
| Maximum storage capacity | 20 TB |
| HDD interface | SATA |

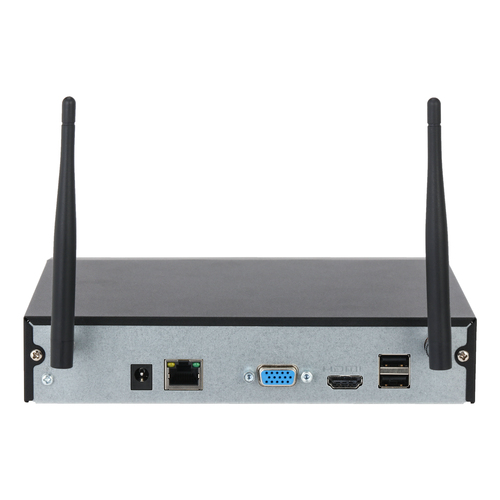

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search |
Features
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 197 mm |
| Depth | 234 mm |
| Height | 41.5 mm |
| Weight | 570 g |
| Package width | 332 mm |
| Package depth | 240 mm |
| Package height | 64 mm |
| Package weight | 980 g |
