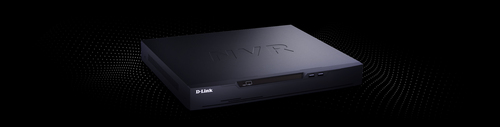

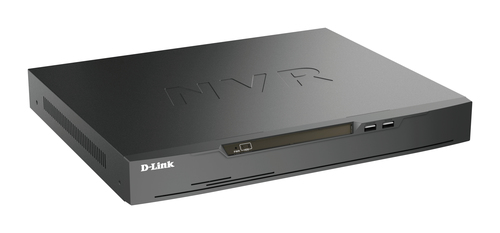

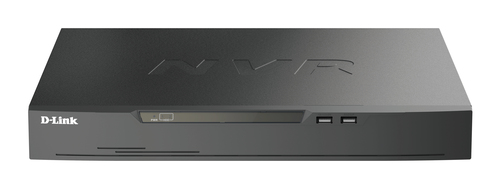

D-Link DNR 4020 16P JustConnect 16 Channel H 265 PoE Network Video Recorder
D-Link

DNR 4020 16P JustConnect 16 Channel H 265 PoE Network Video Recorder

Model DNR-4020-16PEAN 790069455780

46 specifications
  • Storage0 GB
  • Weight2.8 kg
  • ColourBlack
  • Video input channels16 channels
  • Wi-FiNo
  • Number of HDDs installed0
See all specifications

Overview

Storage
0 GB
Weight
2.8 kg
Colour
Black
Video input channels
16 channels
Wi-Fi
No
Number of HDDs installed
0
Brand
D-Link
Model
DNR-4020-16P
Part number
DNR-4020-16P
EAN / UPC
790069455780, 790069458569
Also known as
D-Link DNR 4020 16P JustConnect 16 Channel H 265 PoE Network Video Recorder

Specifications

46 specifications in 11 groups

Performance

Video input channels16 channels
Alarm input channels8
Alarm output channels2
Maximum resolution3840 x 2160 pixels
Audio formats supportedAAC, G.711
Video formats supportedH.264, H.265
Number of fans1 fan(s)
PTZ controlYes
Playback modesBackup selection, Forward, Frame by Frame, Play, Reverse, Stop
Recording modesEvent, Manual, Schedule

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported2
Maximum storage capacity16 TB
HDD interfaceSATA, SATA II, SATA III
HDD size3.5"

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16
HDMI outputYes
HDMI ports quantity1
USB 2.0 ports quantity3
VGA (D-Sub) output ports1
Audio output3.5 mm
Microphone inYes
Networking standardsIEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Supported network protocolsHTTP/HTTPS, RTP, RTSP, RTCP, SNMP v1/v2c/v3, IPv4, ARP, TCP, UDP, ICMP

Features

Product colourBlack

Power

Power consumption (max)143 W
AC input voltage100 - 240 V
Output current5 A
Output voltage52 V
Power over Ethernet (PoE) power per port15 W
Total Power over Ethernet (PoE) budget120 W

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 70 °C

Technical details

Compliance certificatesCE, RoHS

Weight & dimensions

Width372 mm
Depth310.5 mm
Height46.5 mm
Weight2.8 kg

Logistics data

Harmonized System (HS) code85219000
