14-Slot Media Converter Chassis
Model CVH-2000EAN 4015867185124
24 specifications
- Weight420 g
- ColourBlack
- Rack mountingYes
- Operating relative humidity (H-H)5 - 90%
- AC input frequency50 - 60 Hz
- Depth315 mm
Overview
- Weight
- 420 g
- Colour
- Black
- Rack mounting
- Yes
- Operating relative humidity (H-H)
- 5 - 90%
- AC input frequency
- 50 - 60 Hz
- Depth
- 315 mm
- Brand
- LevelOne
- Category
- Network Equipment Chassis
- Model
- CVH-2000
- Part number
- CVH-2000
- EAN / UPC
- 4015867185124
- Also known as
- LevelOne 14-Slot Media Converter Chassis
Specifications
24 specifications in 6 groups
Technical details
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Compliance certificates | RoHS |
| LED indicators | Power |
| Number of bays | 14 |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Size (imperial) | 48.3 cm (19") |
| Country of origin | China |
| Compatible products | FVT-2001 FVT-2002 FVT-2201 FVT-2401 GVT-2000 GVT-2001 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-265 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 315 mm |
| Height | 91 mm |
| Weight | 420 g |
| Width | 427 mm |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 550 x 410 x 185 mm |
| Package width | 550 mm |
| Package depth | 410 mm |
| Package height | 185 mm |
| Package weight | 860 g |
Similar products
All network equipment chassis
StarTech.com
20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Fiber Media Converter
Model ETCHS2U
- Noise
- 44.5 dB
- Weight
- 6.1 kg
- Colour
- Black
StarTech.com
15-Slot Unmanaged Media Converter Chassis for MCM Media Converter Series, Full Power Isolation, Active Cooling
Model MCM15-MEDIA-CHASSIS
- Colour
- Black
- Rack mounting
- Yes
- Operating relative humidity (H-H)
- 5 - 90%
StarTech.com
7-Slot Unmanaged Media Converter Chassis for MCM Media Converter Series, Full Power Isolation, Active Cooling
Model MCM7-MEDIA-CHASSIS
- Colour
- Black
- Rack mounting
- Yes
- Operating relative humidity (H-H)
- 5 - 90%
Dell
210-AETR network equipment chassis 1U Black
Model 210-AETR
- Weight
- 25.2 kg
- Colour
- Black
- Rack capacity
- 1U
D-Link
DGS-6608-SK network equipment chassis 8U Black
Model DGS-6608-SK
- Colour
- Black
- Rack capacity
- 8U
- Operating relative humidity (H-H)
- 10 - 90%
TP-Link
FC1420(UN) network equipment chassis 2U Black
Model FC1420(UN)
- Colour
- Black
- Rack capacity
- 2U
- Operating relative humidity (H-H)
- 10 - 90%
TP-Link
14-Slot Media Converter Chassis
Model TL-FC1420
- Colour
- Black
- Rack capacity
- 2U
- Operating relative humidity (H-H)
- 10 - 90%
TP-Link

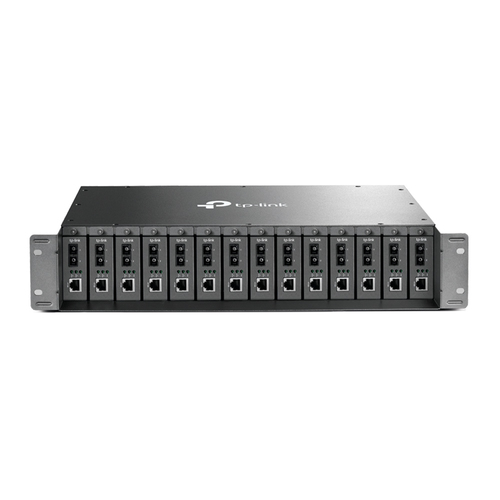

14-Slot Rackmount Chassis
