DNX9190DSE3 navigator Fixed
17.1 cm (6.75") TFT Touchscreen 2.5 kg Black
Model DNX9190DSE3EAN 019048226419
83 specifications
- Display17.1 cm (6.75")
- Resolution1280 x 720 pixels
- Storage16 GB
- TypeFixed
- Weight2.5 kg
- ColourBlack
Overview
- Display
- 17.1 cm (6.75")
- Resolution
- 1280 x 720 pixels
- Storage
- 16 GB
- Type
- Fixed
- Weight
- 2.5 kg
- Colour
- Black
- Brand
- Kenwood
- Category
- Navigator
- Model
- DNX9190DSE3
- Part number
- DNX9190DSE3
- EAN / UPC
- 019048226419
- Also known as
- Kenwood DNX9190DSE3 navigator Fixed 17.1 cm (6.75") TFT Touchscreen 2.5 kg Black
Specifications
83 specifications in 14 groups
GPS type
| Specification | Value |
|---|---|
| Auto | Yes |
GPS Performance
| Specification | Value |
|---|---|
| Antenna | External |
| GPS accuracy - position | 2 m |
| GPS accuracy - velocity | 0.05 m/s |
Map
| Specification | Value |
|---|---|
| Maps included | Yes |
| Map coverage | Albania |
| Lifetime map updates | No |
| Ability to add maps | Yes |
| License term in years | 3 year(s) |
| Map storage | Memory card |
| Map view options | 2D/3D |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.1 cm (6.75") |
| Touchscreen | Yes |
| Widescreen | Yes |
| Display | TFT |
| Backlight display | Yes |
| Display resolution | 1280 x 720 pixels |
| Display size (HxV) | 152.1 x 79.5 mm |
| Touch technology | Multi-touch |
Memory
| Specification | Value |
|---|---|
| Storage media type | Memory card |
| Internal storage capacity | 16 GB |
| Compatible memory cards | SD, SDHC, SDXC |
| Maximum memory card size | 2 TB |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Bluetooth functions | Audiostreaming, Handsfree calling |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, DAB+, FM, LW, MW |
| Preset stations quantity | 20 |
| AM band range | 531 - 1611 kHz |
| FM band range | 87.5 - 108 MHz |
Performance
| Specification | Value |
|---|---|
| Audio playback | Yes |
| Equalizer bands quantity | 13 |
| Video playback | Yes |
| Built-in camera | No |
| Hands-free calling | Yes |
| CD player | Yes |
| DVD player | Yes |
| MP3-player | Yes |
| Dimmer | Yes |
| Night mode | Yes |
| Dashcam control | Yes |
| Dashcam link | Yes |
| Display off mode | Yes |
| Rear-view camera ready | Yes |
| Backup function | Yes |
| Integrated clock | Yes |
| Clock mode | 24h |
| High pass filter | Yes |
| Low pass filter | Yes |
| Analog signal format system | NTSC, PAL |
| Video formats supported | H.264, MKV, MPEG1, MPEG2, MPEG4, WMV |
| Audio formats supported | AAC, FLAC, MP3, Vorbis, WAV, WMA |
| Image formats supported | BMP, JPEG, PNG |
Design
| Specification | Value |
|---|---|
| Form factor | Fixed |
| Product colour | Black |
| DIN size | 2 DIN |
| Interface type | Touch Screen |
| Key illumination colour | Blue |

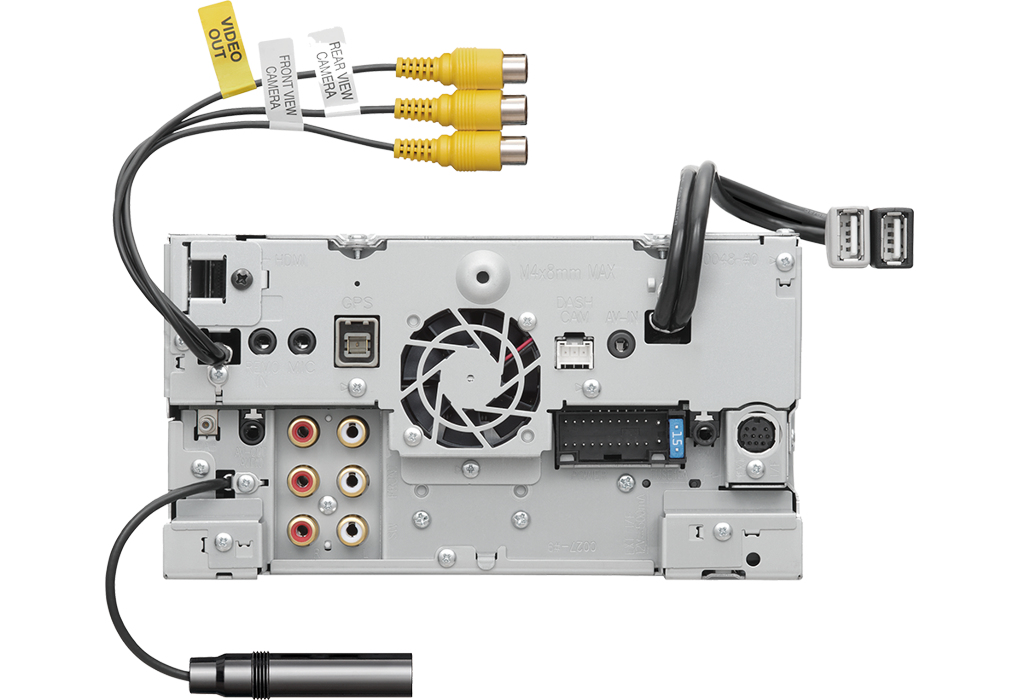

Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | Yes |
| USB 2.0 ports quantity | 2 |
| AV input | Yes |
| Composite video in | 1 |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
| Width | 182 mm |
| Depth | 163 mm |
| Height | 112 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
