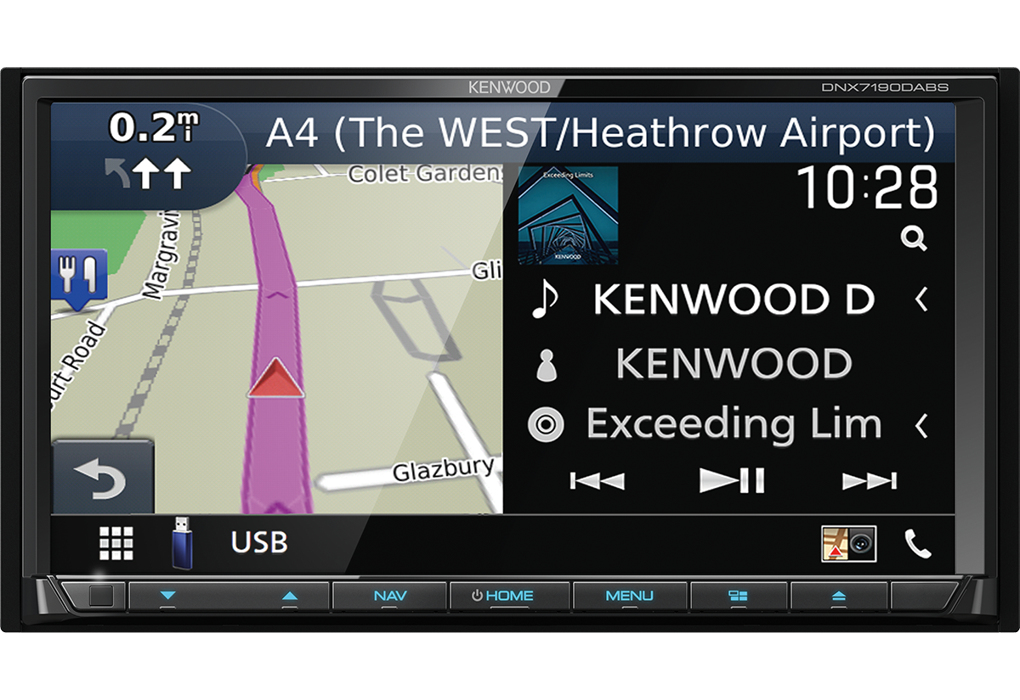

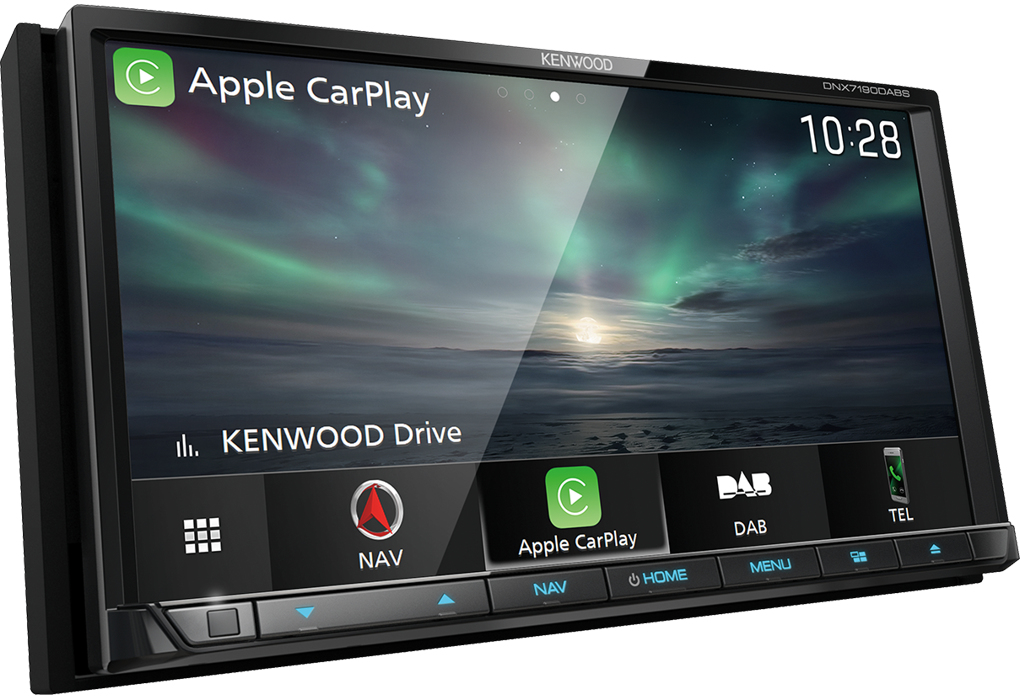

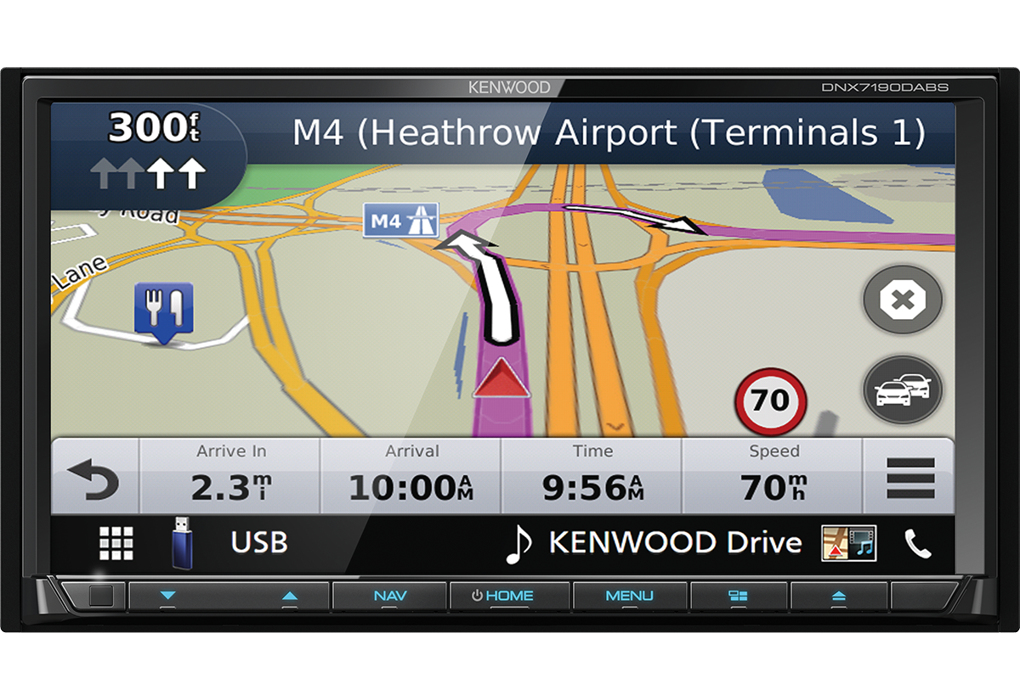

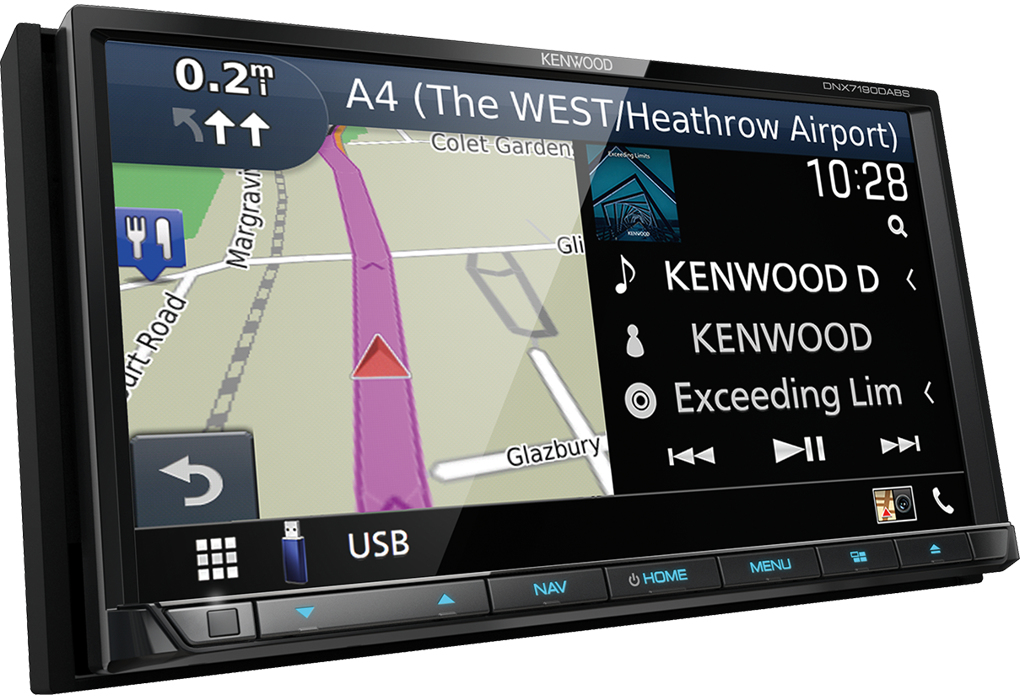

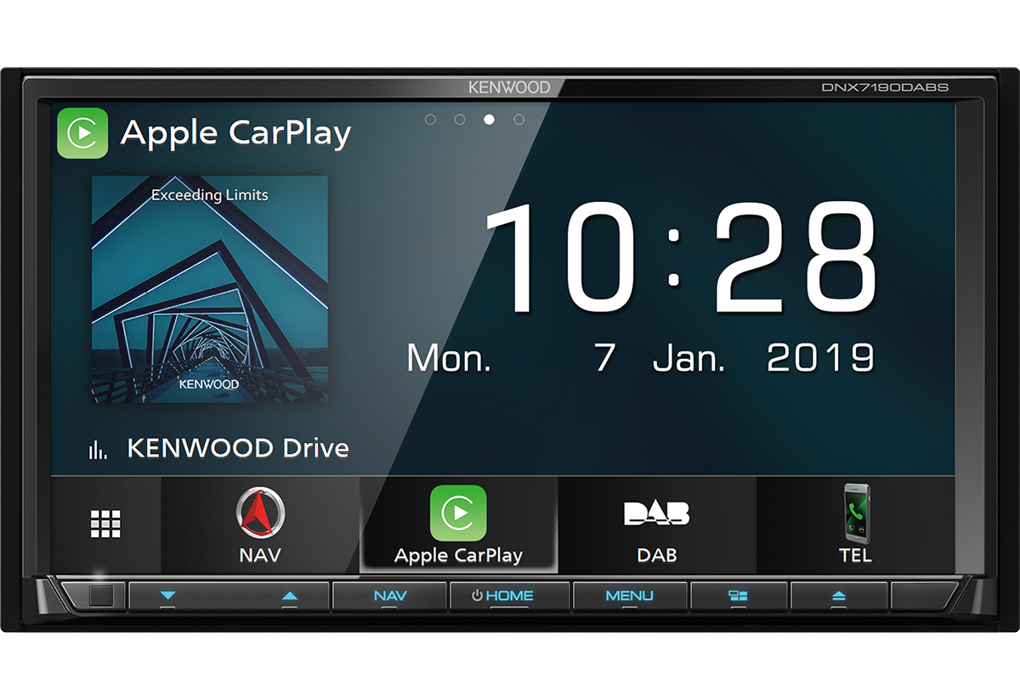

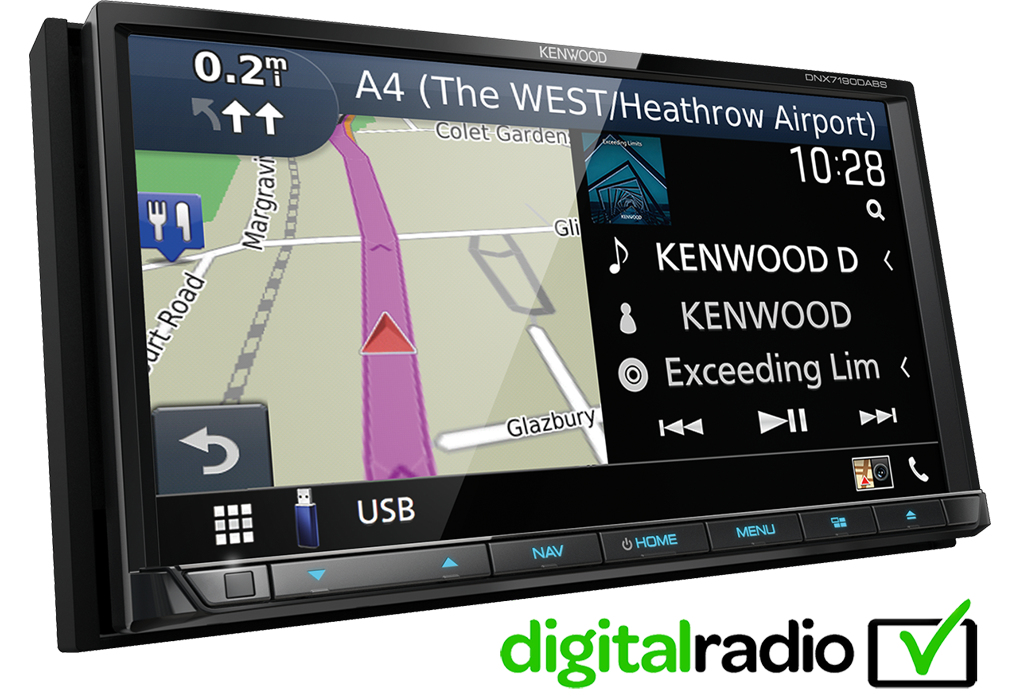

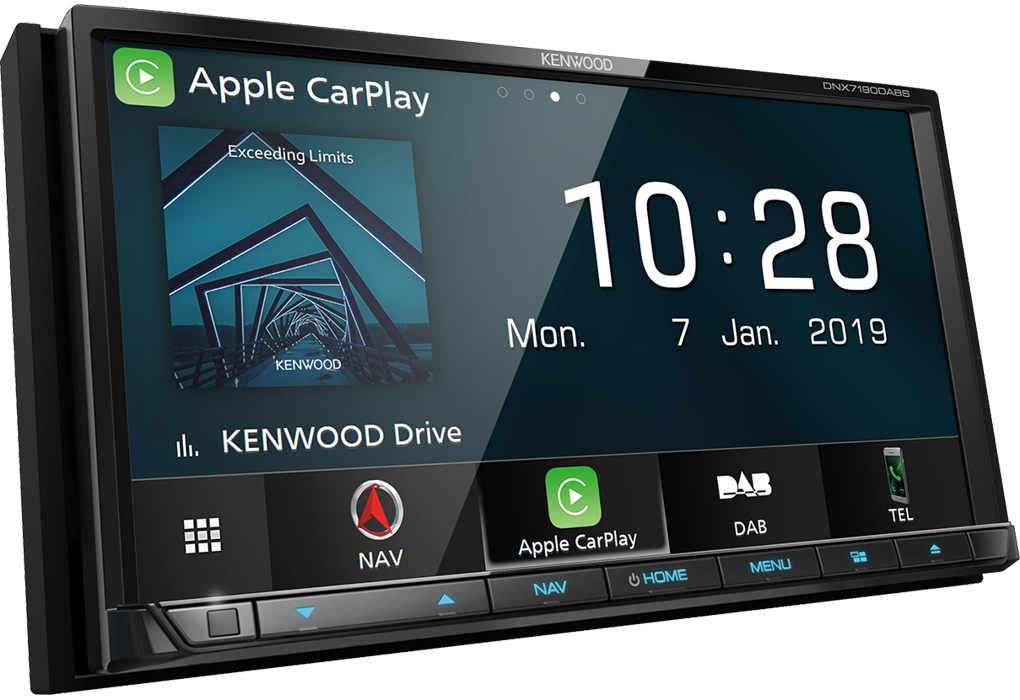

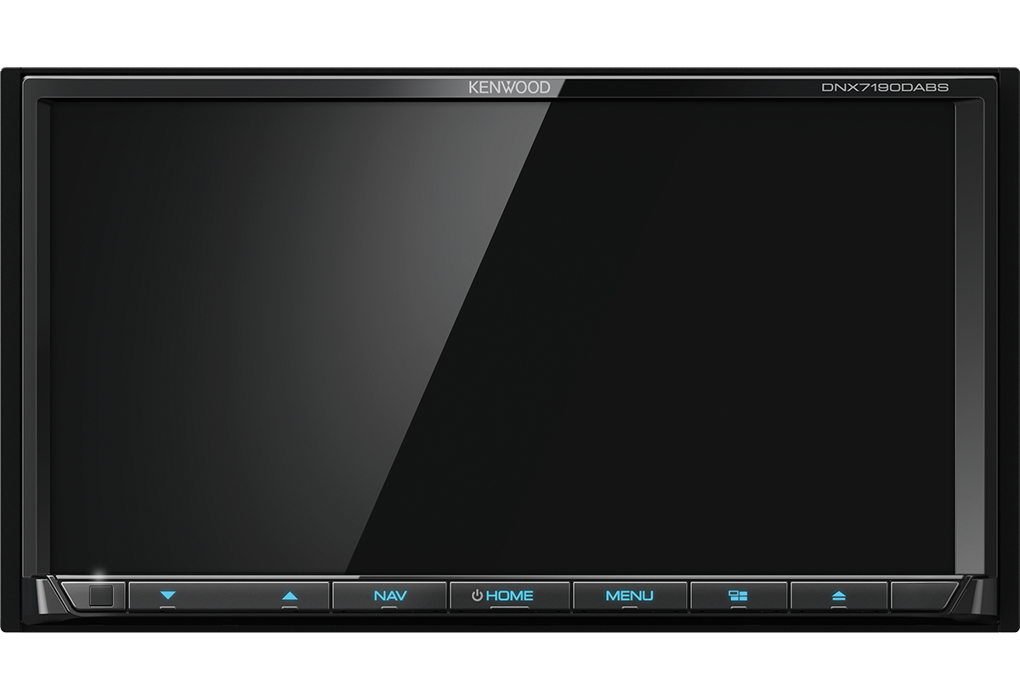

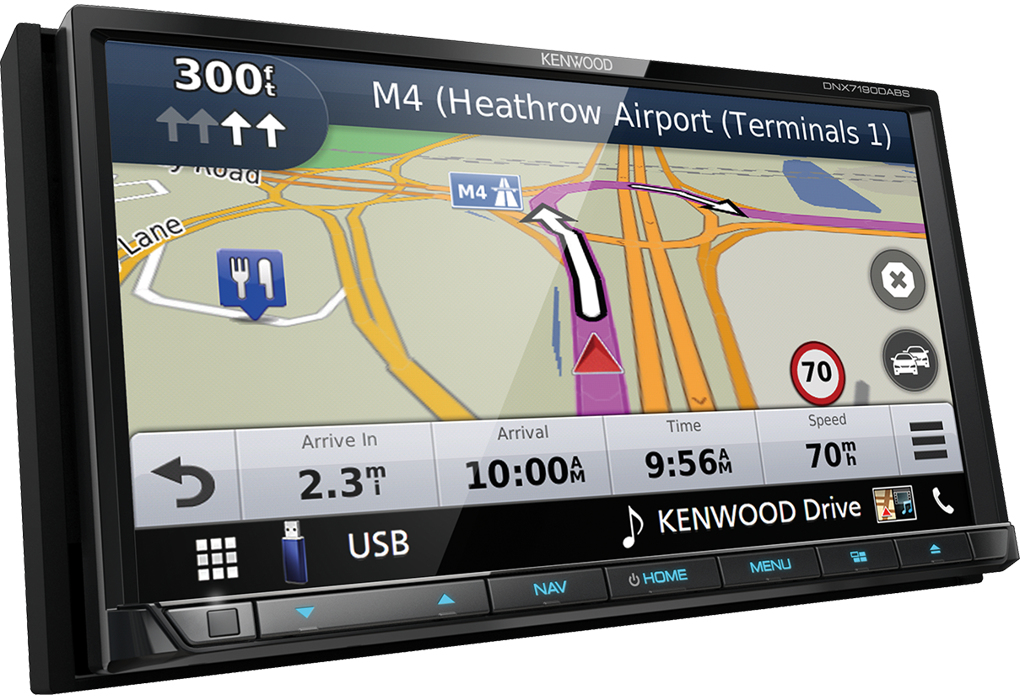

DNX7190DABS navigator Fixed
17.6 cm (6.95") TFT Touchscreen 2.5 kg Black
Model DNX7190DABS
65 specifications
- Display17.6 cm (6.95")
- Resolution800 x 480 pixels
- TypeFixed
- Weight2.5 kg
- ColourBlack
- AutoYes
Overview
- Display
- 17.6 cm (6.95")
- Resolution
- 800 x 480 pixels
- Type
- Fixed
- Weight
- 2.5 kg
- Colour
- Black
- Auto
- Yes
- Brand
- Kenwood
- Category
- Navigator
- Model
- DNX7190DABS
- Part number
- DNX7190DABS
- Also known as
- Kenwood DNX7190DABS navigator Fixed 17.6 cm (6.95") TFT Touchscreen 2.5 kg Black
Specifications
65 specifications in 14 groups
GPS type
| Specification | Value |
|---|---|
| Auto | Yes |
GPS Performance
| Specification | Value |
|---|---|
| Antenna | External |
| GPS accuracy - position | 2 m |
| GPS accuracy - velocity | 0.05 m/s |
Map
| Specification | Value |
|---|---|
| Maps included | Yes |
| Map coverage | Northern Europe, Southern Europe |
| Lifetime map updates | No |
| Ability to add maps | Yes |
| License term in years | 3 year(s) |
| Map storage | Memory card |
| Map view options | 2D/3D |
Display
| Specification | Value |
|---|---|
| Display diagonal | 17.6 cm (6.95") |
| Touchscreen | Yes |
| Widescreen | Yes |
| Display | TFT |
| Backlight display | Yes |
| Display resolution | 800 x 480 pixels |
Memory
| Specification | Value |
|---|---|
| Storage media type | Memory card |
| Compatible memory cards | SD, SDHC, SDIO |
| Maximum memory card size | 2 TB |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth functions | Audiostreaming, Handsfree calling |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, DAB+, FM, LW, MW |
| Preset stations quantity | 20 |
| AM band range | 531 - 1611 kHz |
| FM band range | 87.5 - 108 MHz |
Performance
| Specification | Value |
|---|---|
| Audio playback | Yes |
| Equalizer bands quantity | 13 |
| Video playback | Yes |
| Built-in camera | No |
| CD player | Yes |
| DVD player | Yes |
| MP3-player | Yes |
| Night mode | Yes |
| Rear-view camera ready | Yes |
| High pass filter | Yes |
| Low pass filter | Yes |
| Video formats supported | H.264, MKV, MPEG1, MPEG2, MPEG4, WMV |
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
| Image formats supported | BMP, JPEG, PNG |
Design
| Specification | Value |
|---|---|
| Form factor | Fixed |
| Product colour | Black |
| DIN size | 2 DIN |
| Interface type | Touch Screen |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | Yes |
| USB 2.0 ports quantity | 2 |
| AV input | Yes |
| Composite video in | 1 |
| Headphone connectivity | 3.5 mm |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.5 kg |
| Width | 182 mm |
| Depth | 163 mm |
| Height | 112 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
