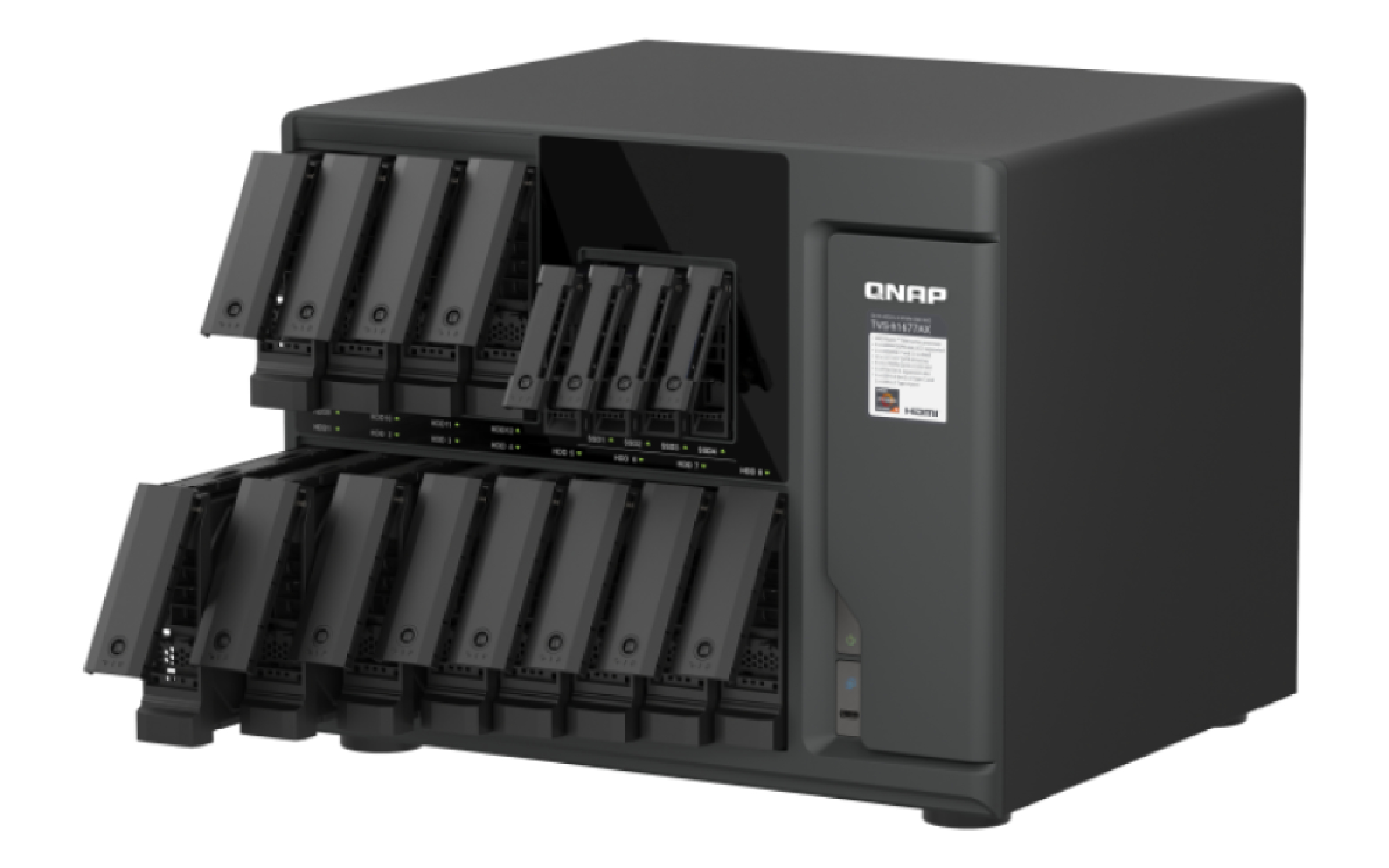

TVS-H1677AX-R5-16G NAS/storage server Tower AMD Ryzen™ 5
16 GB DDR5 0 TB QuTS hero Black
Model TVS-H1677AX-R5-16GEAN 4711103092651
74 specifications
- ProcessorAMD Ryzen™ 5
- Memory16 GB
- TypeNAS
- OSQuTS hero
- Weight11 kg
- ColourBlack
Overview
- Processor
- AMD Ryzen™ 5
- Memory
- 16 GB
- Type
- NAS
- OS
- QuTS hero
- Weight
- 11 kg
- Colour
- Black
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TVS-H1677AX-R5-16G
- Part number
- TVS-H1677AX-R5-16G
- EAN / UPC
- 4711103092651
- Also known as
- QNAP TVS-H1677AX-R5-16G NAS/storage server Tower AMD Ryzen™ 5 16 GB DDR5 0 TB QuTS hero Black
Specifications
74 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 16 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA III, Serial ATA II, U.2 |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | ext3, ext4, NTFS, FAT32, HFS, HFS+, exFAT |
| Auto-rebuild | Yes |
| Bad block scan | Yes |
| Disk roaming | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor generation | AMD Ryzen 7000 Series |
| Processor boost frequency | 5.1 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5 |
| ECC | Yes |
| Memory form factor | UDIMM |
| Memory slots | 4 |
| Flash memory | 5000 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500,10000,1000 Mbit/s |
| DHCP server | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 5 fan(s) |
| Fan diameter | 8 cm |
| Fan diameter 2 | 6 cm |
| Drive bay locking | Yes |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Buzzer | Yes |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| On/off switch | Yes |
| Reset button | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QuTS hero |
| Operating system version | h5.2.9 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 369.9 mm |
| Depth | 319.8 mm |
| Height | 294.3 mm |
| Weight | 11 kg |
| Package width | 440 mm |
| Package depth | 469 mm |
| Package height | 493 mm |
| Package weight | 13.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
