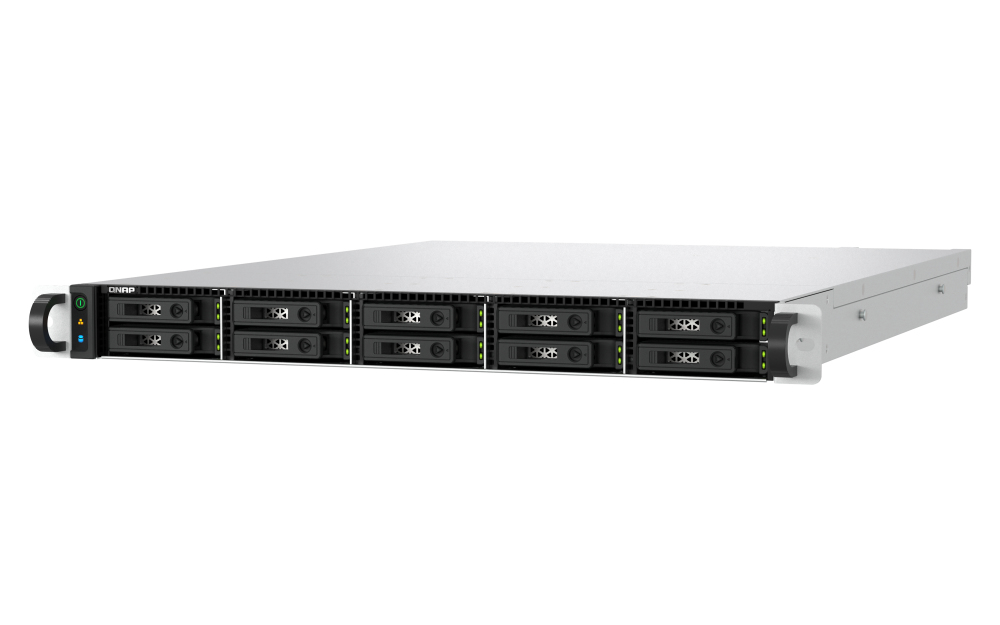

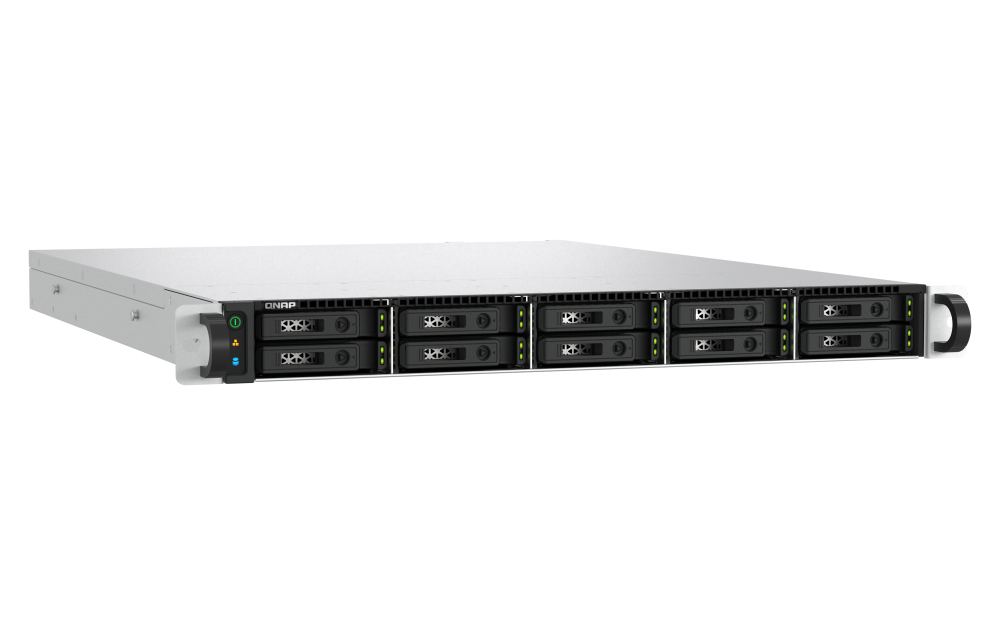

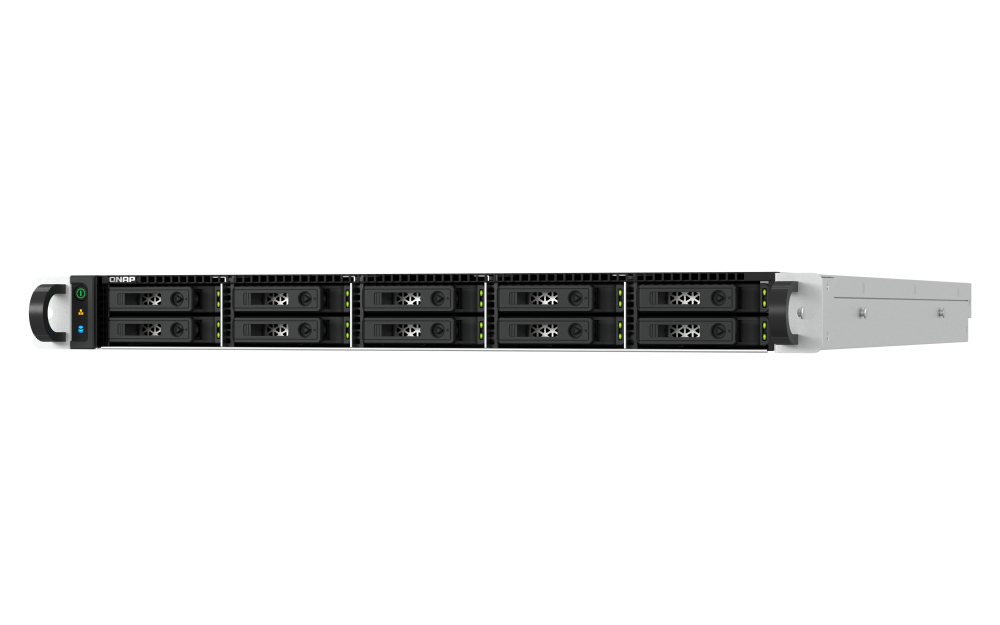

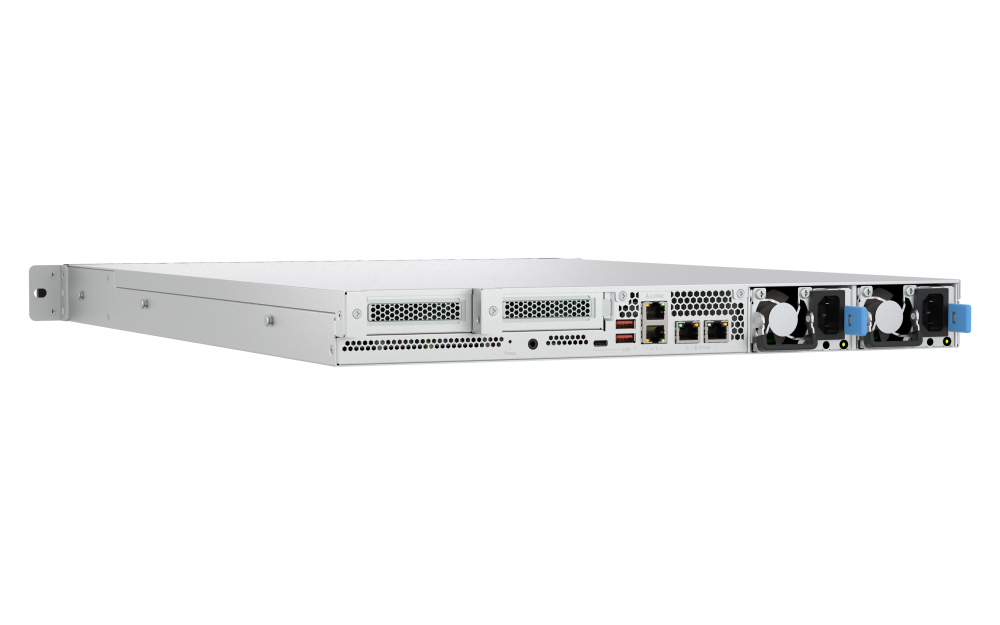

TS-h1077AFU-R7-32G NAS Rack (1U) AMD Ryzen™ 7
32 GB DDR5 0 TB QNAP QTS Black, Grey
Model TS-h1077AFU-R7-32GPart no. TS-H1077AFU-R7-32GEAN 885022033980
63 specifications
- ProcessorAMD Ryzen™ 7
- Memory32 GB
- TypeNAS
- OSQNAP QTS
- Weight9.43 kg
- ColourBlack, Grey
Overview
- Processor
- AMD Ryzen™ 7
- Memory
- 32 GB
- Type
- NAS
- OS
- QNAP QTS
- Weight
- 9.43 kg
- Colour
- Black, Grey
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-h1077AFU-R7-32G
- Part number
- TS-H1077AFU-R7-32G
- EAN / UPC
- 885022033980, 4711103091678
- Also known as
- QNAP TS-h1077AFU-R7-32G NAS Rack (1U) AMD Ryzen™ 7 32 GB DDR5 0 TB QNAP QTS Black, Grey
Specifications
63 specifications in 13 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 10 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA II |
| Storage drive sizes supported | 2.5,3.5" |
| Total installed system drives capacity | 5 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Auto-rebuild | Yes |
| Bad block scan | Yes |
| Disk roaming | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor boost frequency | 5.3 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| On-board graphics card model | AMD Radeon Graphics |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| ECC | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500,10000 Mbit/s |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Grey |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Buzzer | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP QTS |
| Operating system version | 5.2.7 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 3520 W |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 580 mm |
| Height | 44 mm |
| Weight | 9.43 kg |
| Package width | 561 mm |
| Package depth | 763 mm |
| Package height | 170 mm |
| Package weight | 12.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
