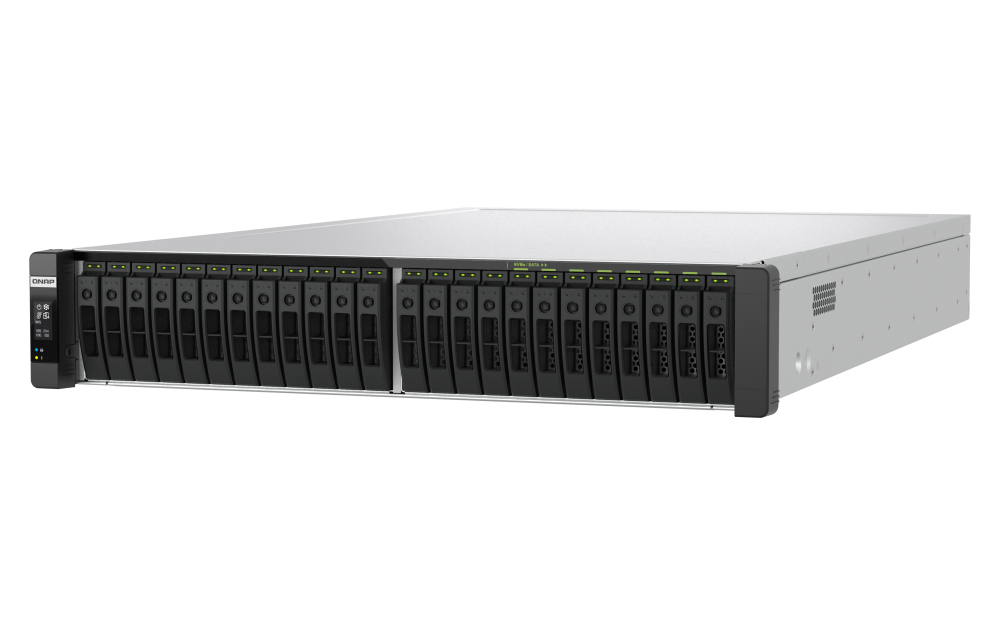

TDS-H2489FU-R2-4314-1T NAS/storage server Rack (2U) Intel Xeon Silver
1 TB DDR4 QNAP QTS
Model TDS-H2489FU-R2-4314-1TEAN 885022028764
80 specifications
- ProcessorIntel Xeon Silver
- Memory1 TB
- TypeNAS
- OSQNAP QTS
- Weight22.8 kg
- Storage drives installedNo
Overview
- Processor
- Intel Xeon Silver
- Memory
- 1 TB
- Type
- NAS
- OS
- QNAP QTS
- Weight
- 22.8 kg
- Storage drives installed
- No
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TDS-H2489FU-R2-4314-1T
- Part number
- TDS-H2489FU-R2-4314-1T
- EAN / UPC
- 885022028764, 4711103086452
- Also known as
- QNAP TDS-H2489FU-R2-4314-1T NAS/storage server Rack (2U) Intel Xeon Silver 1 TB DDR4 QNAP QTS
Specifications
80 specifications in 13 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Number of storage drives supported | 24 |
| Installed storage drive type | No |
| Supported storage drive types | SSD |
| Supported storage drive interfaces | Serial ATA III, U.2 |
| Storage drive sizes supported | 2.5,U.2 |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 4314 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 16 |
| Processor threads | 32 |
| Processor cache | 24 MB |
| Number of processors supported | 2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 TB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 1 TB |
| ECC | Yes |
| Memory form factor | RDIMM |
| Memory slots | 32 |
| Flash memory | 5000 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,25000 Mbit/s |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PCI Express x8 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Number of fans | 6 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Snapshot | Yes |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Built-in FTP server | Yes |
| Hot spare | Yes |
| System log | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP QTS |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 1200 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 467.59 W |
| AC input voltage | 100-240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 446.2 mm |
| Depth | 713.2 mm |
| Height | 88.3 mm |
| Weight | 22.8 kg |
| Package width | 611 mm |
| Package depth | 262 mm |
| Package height | 960 mm |
| Package weight | 27.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
