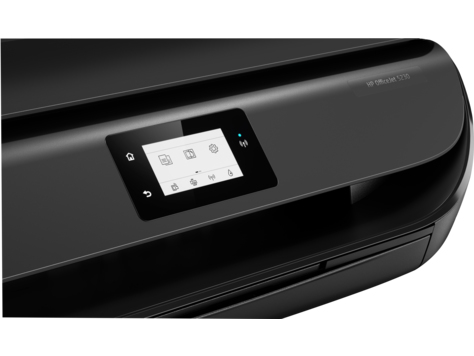

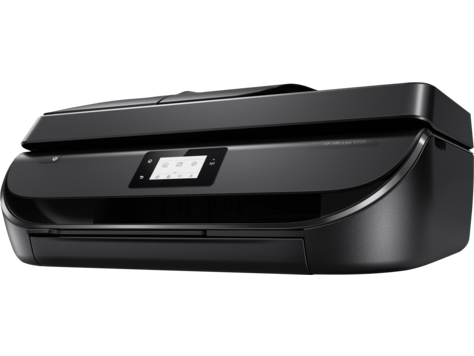

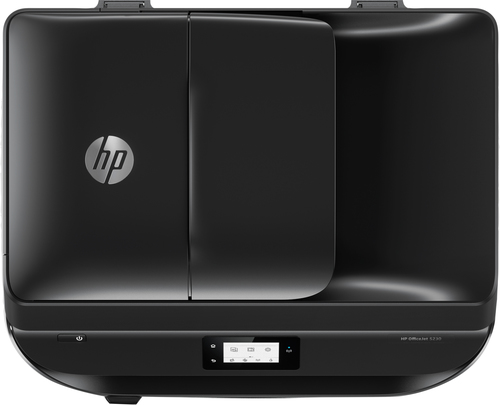

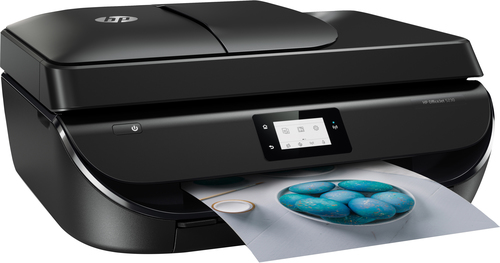

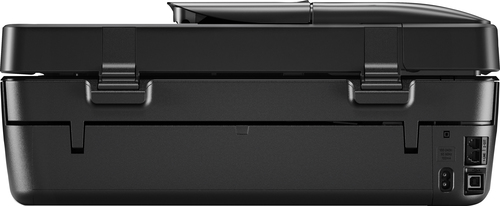

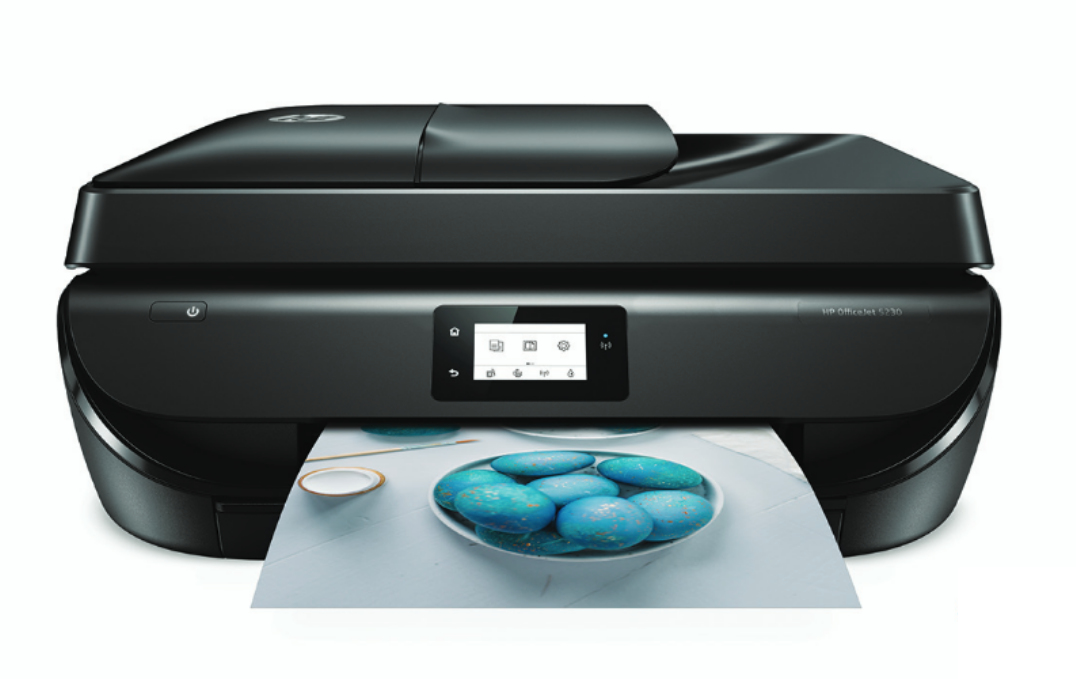

HP OfficeJet 5230 All-in-One Printer
Model 5230Part no. M2U82B #BHC
75 specifications
- Display5.59 cm (2.2")
- Memory256 MB
- Weight6.55 kg
- ColourBlack
- Print technologyInkjet
- CopyingColour copying
Overview
- Display
- 5.59 cm (2.2")
- Memory
- 256 MB
- Weight
- 6.55 kg
- Colour
- Black
- Print technology
- Inkjet
- Copying
- Colour copying
- Brand
- HP
- Category
- Multifunction Printer
- Model
- 5230
- Part number
- M2U82B #BHC
- Also known as
- HP OfficeJet 5230 All-in-One Printer
Specifications
75 specifications in 17 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Printing | Colour printing |
| Duplex printing | Yes |
| Maximum resolution | 4800 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 10 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 7 ppm |
| Time to first page (black, normal) | 16 s |
| Time to first page (colour, normal) | 19 s |
Copying
| Specification | Value |
|---|---|
| Copying | Colour copying |
| Maximum copy resolution | 600 x 300 DPI |
Scanning
| Specification | Value |
|---|---|
| Scanning | Colour scanning |
| Optical scanning resolution | 1200 x 1200 DPI |
| Maximum scan area | 216 x 279 mm |
| Scanner type | Flatbed scanner |
| Scan speed (black) | 3 ppm |
| Scan speed (colour) | 7 ppm |
| Image formats supported | BMP, JPG, Raw, TIF |
| Document formats supported |
Fax
| Specification | Value |
|---|---|
| Faxing | Colour faxing |
| Fax resolution (black) | 300 x 300 DPI |
| Modem speed | 33.6 Kbit/s |
| Fax memory | 100 pages |
| Speed dialling | No |
| Fax broadcasting | 20 locations |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 1000 pages per month |
| Digital sender | No |
| Number of print cartridges | 2 |
| Page description languages | PCL 3 |
| All-In-One-multitasking | No |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 100 sheets |
| Total output capacity | 25 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Paper tray media types | Glossy paper, Matte paper, Photo paper, Plain paper, Recycled paper |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| ISO C-series sizes (C0...C9) | C6 |
| Envelopes sizes | DL |
| Borderless printing media sizes | 8.5x11 |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | USB 2.0, Wireless LAN |
| Direct printing | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | No |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Mobile printing technologies | Apple AirPrint, HP ePrint, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Maximum internal memory | 256 MB |
| Card reader integrated | No |
| Processor frequency | 800 MHz |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Market positioning | Home & office |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 5.59 cm (2.2") |
| Colour display | No |
Power
| Specification | Value |
|---|---|
| Power consumption (average operating) | 14 W |
| Power consumption (ready) | 3.75 W |
| Power consumption (sleep) | 0.89 W |
| Power consumption (off) | 0.11 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Home, Windows 10 Home x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Profession |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012, Windows Server 2016 |
| Mobile operating systems supported | Android, BlackBerry OS, Symbian, Windows Phone 8, Windows RT |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Depth | 369 mm |
| Height | 190 mm |
| Weight | 6.55 kg |
Packaging content
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
| Manual | Yes |
| Warranty card | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
