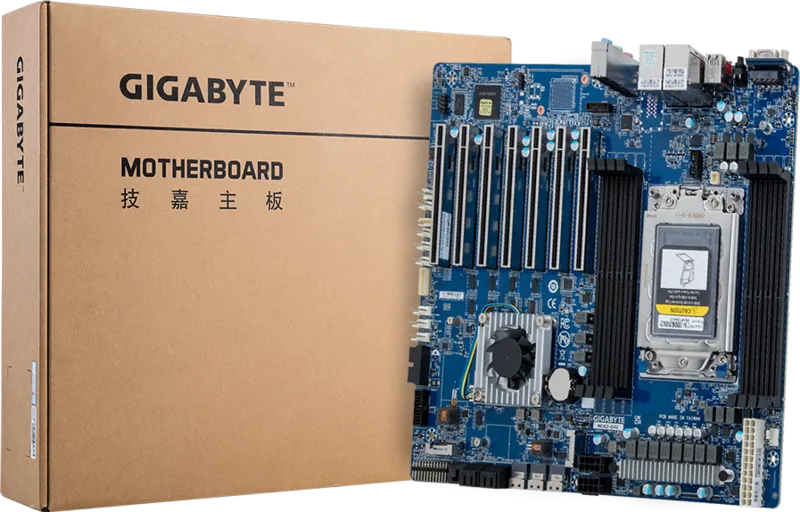

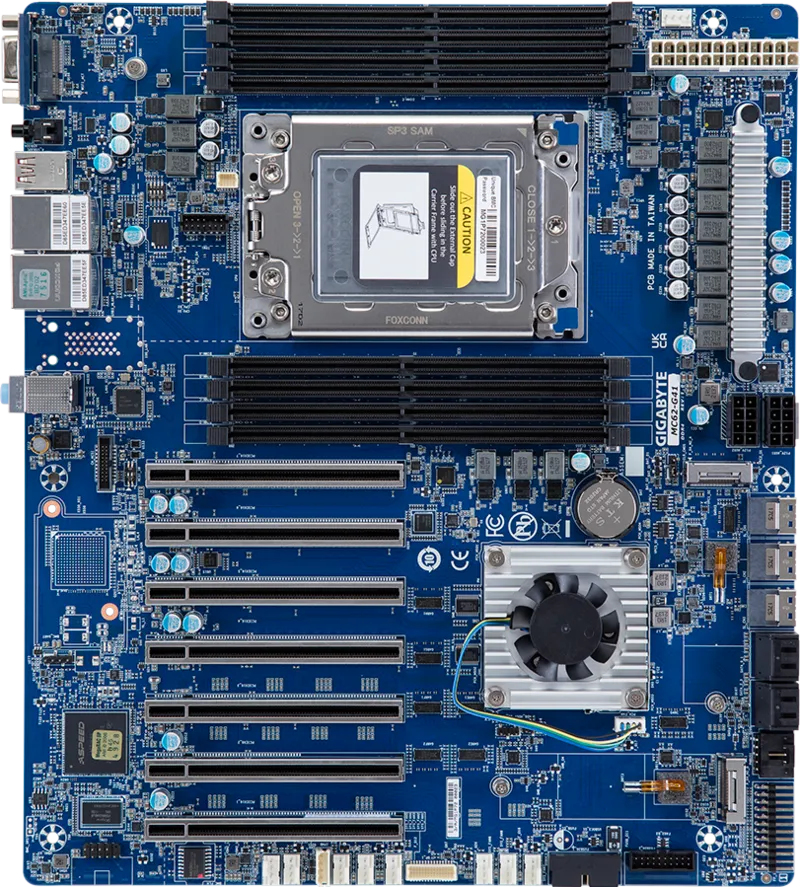

GIGABYTE MC62-G41 Rev. 1.x
Model MC62-G41 Rev. 1.xPart no. 9MC62G41MR-00EAN 4719331836719
70 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Parallel processing technology supportNot supported
- USB 2.0 connectors0
- Ethernet LANYes
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 0
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- MC62-G41 Rev. 1.x
- Part number
- 9MC62G41MR-00
- EAN / UPC
- 4719331836719
- Also known as
- GIGABYTE MC62-G41 Rev. 1.x AMD WRX80 Socket sWRX8 CEB
Specifications
70 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket sWRX8 |
| Compatible processor series | AMD Ryzen Threadripper PRO 3000 WX-Series, AMD Ryzen Threadripper PRO 5000 WX-Series |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 3200 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA, SlimSAS, PCI Express 4.0 |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 18 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card model | Aspeed AST2600 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 8 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| 12V power connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |

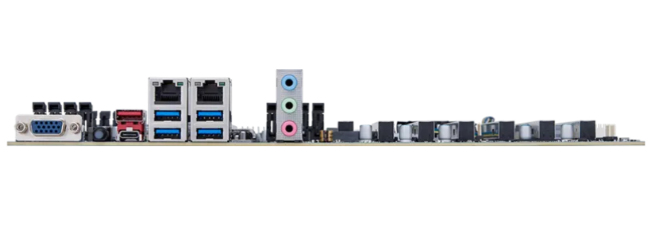

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210, Intel® X550-AT2 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | CEB |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD WRX80 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Compatible operating systems | Red Hat Enterprise Linux 8.2; Red Hat Enterprise Linux 8.3; Ubuntu 20.04 LTS; Windows 10; Windows 11 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 7 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 360 mm |
| Package depth | 330 mm |
| Package height | 80 mm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 267 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Compare GIGABYTE MC62-G41 Rev. 1.x
Compare any products- GIGABYTE MC62-G41 Rev. 1.x vsGIGABYTE B550M DS3H ACCompare specs
- GIGABYTE MC62-G41 Rev. 1.x vsGIGABYTE A620M S2HCompare specs

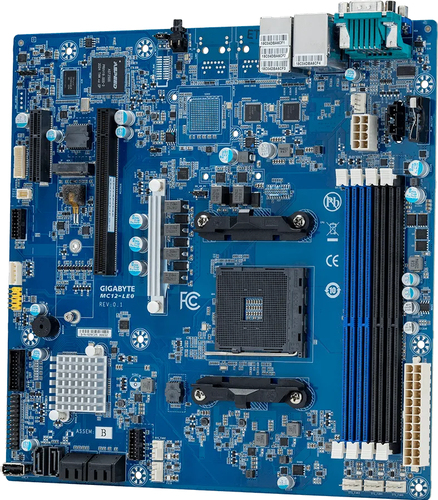

- GIGABYTE MC62-G41 Rev. 1.x vsGIGABYTE MC12-LE0 Rev. 1.xCompare specs
- GIGABYTE MC62-G41 Rev. 1.x vsGIGABYTE MS03-6L0 Intel C741 LGA 4677 (Socket E) ATXCompare specs
- GIGABYTE MC62-G41 Rev. 1.x vsASUS TUF GAMING B760M-BTF WIFI D4Compare specs

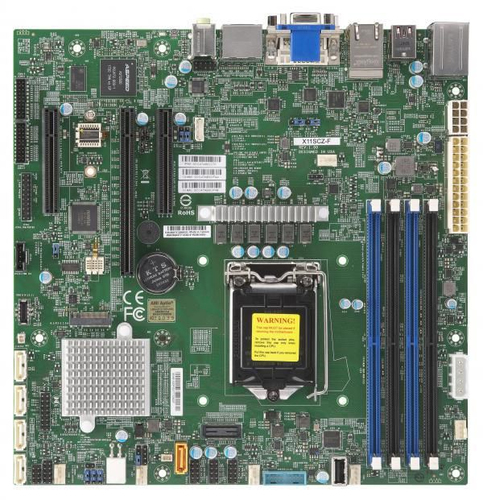

- GIGABYTE MC62-G41 Rev. 1.x vsErnitec E-MBD-X11SCZ-F motherboard Intel C246 LGA 1151 (Socket H4) ATXCompare specs
