Product comparison · 2 motherboards

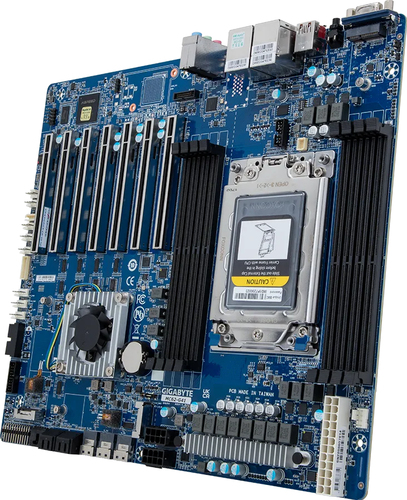

GIGABYTE MC62-G41 Rev. 1.x vs GIGABYTE MS03-6L0 Intel C741 LGA 4677 (Socket E) ATX

57specifications compared
25differ
32identical
23known for one product only

Key differences

Processor manufacturer
- MC62-G41 Rev. 1.x:AMD
- MS03-6L0 Intel C741 LGA 4677 (Socket E) ATX:Intel
Processor socket
- MC62-G41 Rev. 1.x:Socket sWRX8
- MS03-6L0 Intel C741 LGA 4677 (Socket E) ATX:LGA 4677 (Socket E)
Supported memory types
- MC62-G41 Rev. 1.x:DDR4-SDRAM
- MS03-6L0 Intel C741 LGA 4677 (Socket E) ATX:DDR5-SDRAM
Supported memory clock speed (max)
- MC62-G41 Rev. 1.x:3200 MHz
- MS03-6L0 Intel C741 LGA 4677 (Socket E) ATX:5600 MHz
Number of HDDs supported
- MC62-G41 Rev. 1.x:4
- MS03-6L0 Intel C741 LGA 4677 (Socket E) ATX:6
Number of storage drives supported
- MC62-G41 Rev. 1.x:18
- MS03-6L0 Intel C741 LGA 4677 (Socket E) ATX:7
USB 3.2 Gen 1 (3.1 Gen 1) connectors
- MC62-G41 Rev. 1.x:2
- MS03-6L0 Intel C741 LGA 4677 (Socket E) ATX:1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
- MC62-G41 Rev. 1.x:0
- MS03-6L0 Intel C741 LGA 4677 (Socket E) ATX:1

Side by side

Differences highlightedShow differences only

Comparison of MC62-G41 Rev. 1.x, MS03-6L0
80 specifications	A GIGABYTE MC62-G41 Rev. 1.x View product	B GIGABYTE MS03-6L0 Intel C741 LGA 4677 (Socket E) ATX Model MS03-6L0 View product
Processor3 differ
Processor manufacturerDiffers	AMD	Intel
Processor socketDiffers	Socket sWRX8	LGA 4677 (Socket E)
Compatible processor seriesDiffers	AMD Ryzen Threadripper PRO 3000 WX-Series, AMD Ryzen Threadripper PRO 5000 WX-Series	Intel® Xeon®
Supported processor socketsKnown for one	Unknown — not stated by the source	LGA 4677 (Socket E)
Memory2 differ
Supported memory typesDiffers	DDR4-SDRAM	DDR5-SDRAM
Number of memory slots	8	8
Memory slots type	DIMM	DIMM
Memory channels	Octa-channel	Octa-channel
ECC сompatibilityKnown for one	ECC & Non-ECC	Unknown — not stated by the source
Supported memory clock speed (max)Differs	3200 MHz	5600 MHz
Storage controllers3 differ
Supported storage drive types	HDD & SSD	HDD & SSD
Supported storage drive interfacesDiffers	M.2, SATA, SlimSAS, PCI Express 4.0	M.2, SATA
Number of HDDs supportedDiffers	4	6
Number of storage drives supportedDiffers	18	7
RAID support	Yes	Yes
RAID levels	0, 1, 5, 10	0, 1, 5, 10
Graphicsidentical
Parallel processing technology supportKnown for one	Not supported	Unknown — not stated by the source
On-board graphics card model	Aspeed AST2600	Aspeed AST2600
On-board graphics cardKnown for one	Unknown — not stated by the source	Yes
Graphics card familyKnown for one	Unknown — not stated by the source	ASPEED
Internal I/O5 differ
USB 2.0 connectors	0	0
USB 3.2 Gen 1 (3.1 Gen 1) connectorsDiffers	2	1
USB 3.2 Gen 2 (3.1 Gen 2) connectorsDiffers	0	1
Number of SATA III connectorsDiffers	4	0
Front panel connector	Yes	Yes
ATX Power connector (24-pin)	Yes	Yes
CPU fan connector	Yes	Yes
Number of CPU fan connectorsDiffers	2	1
Number of chassis fan connectorsDiffers	8	7
EPS power connector (8-pin)	Yes	Yes
Number of EPS power connectors (8-pin)	2	2
12V power connector	Yes	Yes
Number of COM connectorsKnown for one	1	Unknown — not stated by the source
TPM connector	Yes	Yes
Number of SATA connectorsKnown for one	Unknown — not stated by the source	2
Rear panel I/O ports4 differ
USB 2.0 ports quantity	0	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityDiffers	0	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantityDiffers	5	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantityDiffers	1	0
Ethernet LAN (RJ-45) portsDiffers	1	6
VGA (D-Sub) ports quantity	1	1
HDMI ports quantity	0	0
DVI-D ports quantity	0	0
Headphone outputsKnown for one	1	Unknown — not stated by the source
Line-inKnown for one	Yes	Unknown — not stated by the source
Microphone inKnown for one	Yes	Unknown — not stated by the source
Serial ports quantityKnown for one	Unknown — not stated by the source	1
Network2 differ
Ethernet LAN	Yes	Yes
Ethernet interface typeDiffers	Gigabit Ethernet	Gigabit Ethernet, 10 Gigabit Ethernet
LAN controllerDiffers	Intel I210, Intel® X550-AT2	Broadcom BCM57416, Intel® I210-AT
Wi-Fi	No	No
Features2 differ
Component for	Server	Server
Motherboard form factorDiffers	CEB	ATX
Motherboard chipset family	AMD	AMD
Motherboard chipsetDiffers	AMD WRX80	Intel C741
Audio chipKnown for one	Realtek ALC4080	Unknown — not stated by the source
Audio output channelsKnown for one	7.1 channels	Unknown — not stated by the source
Compatible operating systemsKnown for one	Red Hat Enterprise Linux 8.2; Red Hat Enterprise Linux 8.3; Ubuntu 20.04 LTS; Windows 10; Windows 11	Unknown — not stated by the source
Product colourKnown for one	Unknown — not stated by the source	Blue
Cooling typeKnown for one	Unknown — not stated by the source	Passive
Power source typeKnown for one	Unknown — not stated by the source	ATX
Expansion slots2 differ
PCI Express x16 (Gen 4.x) slotsKnown for one	7	Unknown — not stated by the source
Number of M.2 (M) slotsDiffers	2	1
1st M.2 largest key size	2280	2280
1st M.2 highest PCI Express generationDiffers	4.0	3.0
2nd M.2 largest key sizeKnown for one	2280	Unknown — not stated by the source
2nd M.2 highest PCI Express generationKnown for one	4.0	Unknown — not stated by the source
PCI Express x8 (Gen 5.x) slotsKnown for one	Unknown — not stated by the source	1
PCI Express x16 (Gen 5.x) slotsKnown for one	Unknown — not stated by the source	5
Operational conditionsidentical
Storage temperature (T-T)	-40 - 60 °C	-40 - 60 °C
Operating temperature (T-T)	10 - 40 °C	10 - 40 °C
Operating relative humidity (H-H)	8 - 80%	8 - 80%
Storage relative humidity (H-H)	20 - 95%	20 - 95%
Packaging dataidentical
Package width	360 mm	360 mm
Package depth	330 mm	330 mm
Package height	80 mm	80 mm
Weight & dimensions2 differ
WidthDiffers	305 mm	304.8 mm
DepthDiffers	267 mm	244 mm
Packaging contentidentical
Cables includedKnown for one	SATA	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
