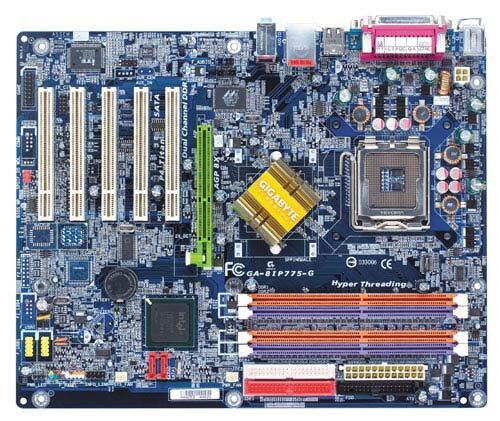

GIGABYTE GA-8IP775-G (rev. 1.x)
Model GA-8IP775-G (rev. 1.x)Part no. GA-8IP775G
32 specifications
- Processor manufacturerIntel
- Supported memory typesDDR-SDRAM
- Supported storage drive interfacesSATA
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR-SDRAM
- Supported storage drive interfaces
- SATA
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-8IP775-G (rev. 1.x)
- Part number
- GA-8IP775G
- Also known as
- GIGABYTE GA-8IP775-G (rev. 1.x) Intel 865P LGA 775 (Socket T) ATX
Specifications
32 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® 4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 400 MHz |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| CD/AUX audio in | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| COM ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel 865P |
| Audio chip | RealTek ALC850 |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 5 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 3 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
