Product comparison · 2 motherboards

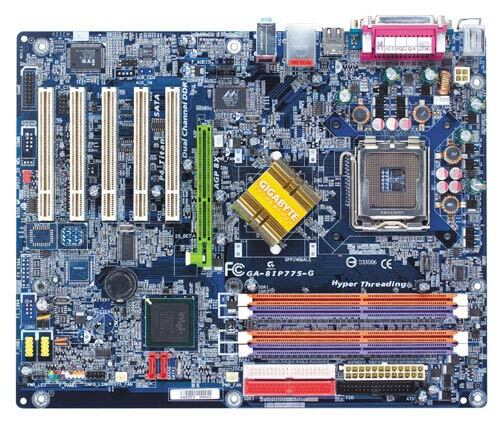

GIGABYTE GA-8IP775-G (rev. 1.x) vs MSI PRO B760M-A

25specifications compared
15differ
10identical
44known for one product only

Key differences

Processor socket
- GA-8IP775-G (rev. 1.x):LGA 775 (Socket T)
- PRO B760M-A:LGA 1700
Supported memory types
- GA-8IP775-G (rev. 1.x):DDR-SDRAM
- PRO B760M-A:DDR4-SDRAM
Maximum internal memory
- GA-8IP775-G (rev. 1.x):4 GB
- PRO B760M-A:128 GB
Supported storage drive interfaces
- GA-8IP775-G (rev. 1.x):SATA
- PRO B760M-A:M.2, PCI Express, SATA
USB 2.0 connectors
- GA-8IP775-G (rev. 1.x):2
- PRO B760M-A:6
Number of SATA connectors
- GA-8IP775-G (rev. 1.x):2
- PRO B760M-A:4
USB 2.0 ports quantity
- GA-8IP775-G (rev. 1.x):4
- PRO B760M-A:6
Ethernet interface type
- GA-8IP775-G (rev. 1.x):Gigabit Ethernet
- PRO B760M-A:2.5 Gigabit Ethernet

Side by side

Differences highlightedShow differences only

Comparison of GA-8IP775-G (rev. 1.x), PRO B760M-A
69 specifications	A GIGABYTE GA-8IP775-G (rev. 1.x)View product	B MSI PRO B760M-A View product
Processor2 differ
Processor manufacturer	Intel	Intel
Processor socketDiffers	LGA 775 (Socket T)	LGA 1700
Compatible processor seriesDiffers	Intel® Pentium® 4	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i7 Extreme Edition, Intel® Core™ i9, Intel Core i9 Extreme Edition, Intel® Pentium® D, Intel® Pentium® Dual-Core, Intel® Pentium® Extreme Edition, Intel Pentium G, Intel® Pentium® Gold, Intel® Pentium® III, Intel® Pentium® M
Maximum number of SMP processorsKnown for one	Unknown — not stated by the source	1
Supported processor socketsKnown for one	Unknown — not stated by the source	LGA 1700
Memory2 differ
Supported memory typesDiffers	DDR-SDRAM	DDR4-SDRAM
Number of memory slots	4	4
Memory channels	Dual-channel	Dual-channel
ECC сompatibilityKnown for one	Unknown — not stated by the source	Non-ECC
Maximum internal memoryDiffers	4 GB	128 GB
Supported memory clock speed (max)Known for one	400 MHz	Unknown — not stated by the source
Storage controllers1 differ
Supported storage drive typesKnown for one	Unknown — not stated by the source	HDD & SSD
Supported storage drive interfacesDiffers	SATA	M.2, PCI Express, SATA
RAID supportKnown for one	Unknown — not stated by the source	Yes
RAID levelsKnown for one	Unknown — not stated by the source	0, 1, 5, 10
Internal I/O2 differ
USB 2.0 connectorsDiffers	2	6
USB 3.2 Gen 1 (3.1 Gen 1) connectorsKnown for one	Unknown — not stated by the source	7
USB 3.2 Gen 2 (3.1 Gen 2) connectorsKnown for one	Unknown — not stated by the source	2
Number of SATA connectorsDiffers	2	4
Audio connectorKnown for one	Unknown — not stated by the source	Yes
Front panel audio connectorKnown for one	Unknown — not stated by the source	Yes
ATX Power connector (24-pin)Known for one	Unknown — not stated by the source	Yes
CPU fan connectorKnown for one	Unknown — not stated by the source	Yes
Number of chassis fan connectorsKnown for one	Unknown — not stated by the source	1
Chassis intrusion connectorKnown for one	Unknown — not stated by the source	Yes
EPS power connector (8-pin)Known for one	Unknown — not stated by the source	Yes
TPM connectorKnown for one	Unknown — not stated by the source	Yes
RGB LED pin headerKnown for one	Unknown — not stated by the source	Yes
CD/AUX audio inKnown for one	Yes	Unknown — not stated by the source
Rear panel I/O ports1 differ
USB 2.0 ports quantityDiffers	4	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityKnown for one	Unknown — not stated by the source	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantityKnown for one	Unknown — not stated by the source	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantityKnown for one	Unknown — not stated by the source	2
Ethernet LAN (RJ-45) ports	1	1
HDMI ports quantityKnown for one	Unknown — not stated by the source	2
HDMI versionKnown for one	Unknown — not stated by the source	2.1
DisplayPorts quantityKnown for one	Unknown — not stated by the source	2
DisplayPort versionKnown for one	Unknown — not stated by the source	1.4
Headphone outputs	1	1
Line-in	Yes	Yes
Microphone in	Yes	Yes
S/PDIF out portKnown for one	Unknown — not stated by the source	Yes
USB connector typeKnown for one	Unknown — not stated by the source	USB Type-A
PS/2 ports quantityKnown for one	2	Unknown — not stated by the source
COM ports quantityKnown for one	2	Unknown — not stated by the source
Network2 differ
Ethernet LAN	Yes	Yes
Ethernet interface typeDiffers	Gigabit Ethernet	2.5 Gigabit Ethernet
LAN controllerKnown for one	Unknown — not stated by the source	Realtek RTL8125-BG
Wi-FiDiffers	No	Yes
Top Wi-Fi standardKnown for one	Unknown — not stated by the source	Wi-Fi 6E (802.11ax)
BluetoothKnown for one	Unknown — not stated by the source	Yes
Bluetooth versionKnown for one	Unknown — not stated by the source	5.3
Features3 differ
Component for	PC	PC
Motherboard form factorDiffers	ATX	micro ATX
Motherboard chipset family	Intel	Intel
Motherboard chipsetDiffers	Intel 865P	Intel B760
Audio chipDiffers	RealTek ALC850	Realtek ALC897
Audio output channelsKnown for one	Unknown — not stated by the source	7.1 channels
Power source typeKnown for one	Unknown — not stated by the source	ATX
Expansion slotsidentical
PCI Express x4 (Gen 4.x) slotsKnown for one	Unknown — not stated by the source	1
PCI Express x16 (Gen 3.x) slotsKnown for one	Unknown — not stated by the source	1
PCI Express x16 (Gen 4.x) slotsKnown for one	Unknown — not stated by the source	1
Number of M.2 (M) slotsKnown for one	Unknown — not stated by the source	2
PCI slotsKnown for one	5	Unknown — not stated by the source
Weight & dimensions2 differ
WidthDiffers	244 mm	243.8 mm
DepthDiffers	305 mm	243.8 mm
Packaging contentidentical
Cables includedKnown for one	Unknown — not stated by the source	SATA
BIOSidentical
BIOS typeKnown for one	AWARD	Unknown — not stated by the source
BIOS memory sizeKnown for one	3 Mbit	Unknown — not stated by the source

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
