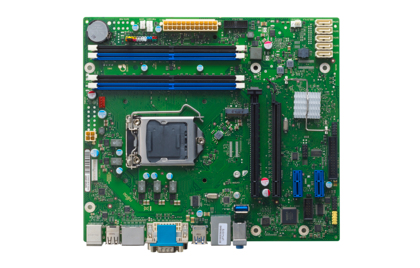

Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX
Model D3402-B
73 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA III
- USB 2.0 connectors1
- USB 2.0 ports quantity2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Ethernet LAN
- Yes
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D3402-B
- Part number
- D3402-B
- Also known as
- Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX
Specifications
73 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2,2.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| DirectX version | 12.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 5 |
| Number of SATA connectors | 5 |
| S/PDIF out connector | No |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
| Serial port headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| S/PDIF out port | No |
| COM ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel I219LM |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Q170 |
| Audio chip | Realtek ALC671 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Watch Dog function | Yes |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free | Yes |
| Intel ME Firmware Version | 11 |
| Intel Rapid Storage Technology | Yes |
| Intel Rapid Storage Technology enterprise | No |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 213.4 mm |
| Depth | 243.8 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | No |
| Intel® vPro™ Platform Eligibility | Yes |
What people say
Reviews & ratings
Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX
No reviews yet
Be the first to tell others how Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX
All motherboard comparisons- Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsFujitsu D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATXCompare specs
- Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsFujitsu D3417-B motherboard Intel® C236 LGA 1151 (Socket H4) micro ATXCompare specs
- Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsFujitsu D3400-B motherboard Intel® H110 LGA 1151 (Socket H4) micro ATXCompare specs
- Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsFujitsu D3236-S GS3Compare specs

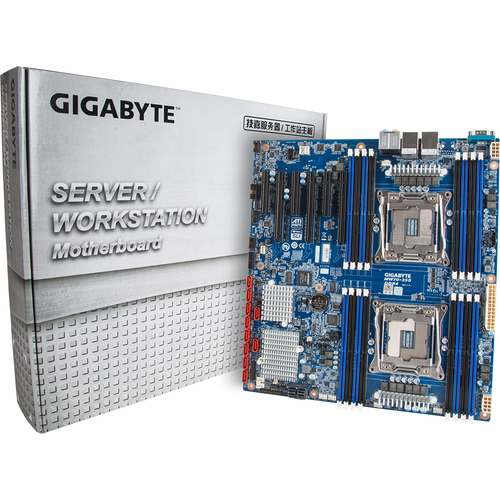

- Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsGIGABYTE MW70-3S0 Intel® C612 LGA 2011-v3 Extended ATXCompare specs
- Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsASUS B150 PRO GAMING/AURACompare specs

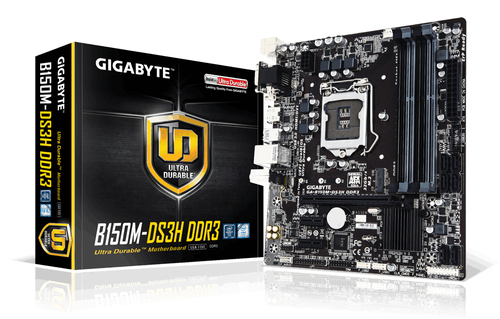

- Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsGIGABYTE GA-B150M-DS3H DDR3Compare specs

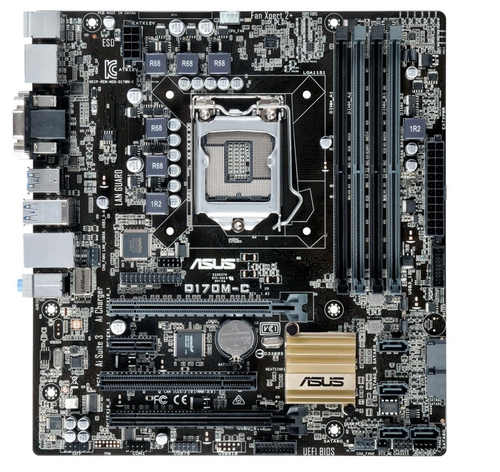

- Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsASUS Q170M-C Intel® Q170 LGA 1151 (Socket H4) micro ATXCompare specs
