Product comparison · 2 motherboards

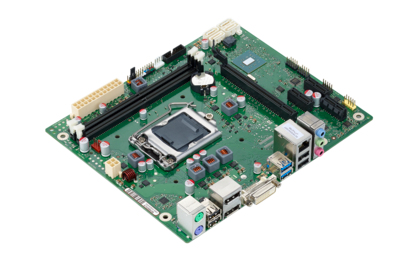

Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vs Fujitsu D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX

56specifications compared
16differ
40identical
27known for one product only

Key differences

Number of memory slots
- D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX:4
- D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX:2
Maximum internal memory
- D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX:64 GB
- D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX:32 GB
Supported storage drive interfaces
- D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX:M.2, SATA III
- D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX:SATA III
Number of SATA III connectors
- D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX:5
- D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX:6
USB 2.0 ports quantity
- D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX:2
- D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX:4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX:4
- D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX:2
LAN controller
- D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX:Intel I219LM
- D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX:Realtek RTL8111G
Motherboard chipset
- D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX:Intel® Q170
- D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX:Intel® B150

Side by side

Differences highlightedShow differences only

Comparison of D3402-B, D3410-B
83 specifications	A Fujitsu D3402-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX Model D3402-B View product	B Fujitsu D3410-B motherboard Intel® B150 LGA 1151 (Socket H4) micro ATX Model D3410-B View product
Processoridentical
Processor manufacturer	Intel	Intel
Processor socket	LGA 1151 (Socket H4)	LGA 1151 (Socket H4)
Compatible processor series	Intel® Celeron®, Intel® Pentium®	Intel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesKnown for one	Unknown — not stated by the source	i3-6xxx, i5-6xxx, i7-6xxx
Memory2 differ
Supported memory types	DDR4-SDRAM	DDR4-SDRAM
Number of memory slotsDiffers	4	2
Memory slots type	DIMM	DIMM
Memory channels	Dual-channel	Dual-channel
Memory voltageKnown for one	1.2,2.5 V	Unknown — not stated by the source
ECC сompatibility	Non-ECC	Non-ECC
Supported memory clock speeds	2133 MHz	2133 MHz
Maximum internal memoryDiffers	64 GB	32 GB
Storage controllers1 differ
Supported storage drive interfacesDiffers	M.2, SATA III	SATA III
RAID levelsKnown for one	0, 1, 5, 10	Unknown — not stated by the source
Graphicsidentical
Graphics card family	Intel	Intel
DirectX version	12.0	12.0
Graphics cardKnown for one	Unknown — not stated by the source	HD Graphics
Discrete graphics supportKnown for one	Unknown — not stated by the source	Yes
Number of displays supportedKnown for one	Unknown — not stated by the source	3
Internal I/O1 differ
USB 2.0 connectorsKnown for one	1	Unknown — not stated by the source
USB 3.2 Gen 1 (3.1 Gen 1) connectorsKnown for one	1	Unknown — not stated by the source
USB 3.2 Gen 2 (3.1 Gen 2) connectorsKnown for one	0	Unknown — not stated by the source
Number of SATA III connectorsDiffers	5	6
Number of SATA connectorsKnown for one	5	Unknown — not stated by the source
S/PDIF out connectorKnown for one	No	Unknown — not stated by the source
Front panel audio connector	Yes	Yes
ATX Power connector (24-pin)	Yes	Yes
Chassis intrusion connectorKnown for one	Yes	Unknown — not stated by the source
Parallel connectorKnown for one	Yes	Unknown — not stated by the source
Serial port headers	1	1
Rear panel I/O ports2 differ
USB 2.0 ports quantityDiffers	2	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantityDiffers	4	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0	0
Ethernet LAN (RJ-45) ports	1	1
PS/2 ports quantity	2	2
Firewire (IEEE 1394) portsKnown for one	0	Unknown — not stated by the source
VGA (D-Sub) ports quantityKnown for one	0	Unknown — not stated by the source
DVI-D ports quantity	1	1
DVI-I ports quantityKnown for one	0	Unknown — not stated by the source
DisplayPorts quantity	2	2
DisplayPort version	1.2	1.2
S/PDIF out port	No	No
COM ports quantityKnown for one	1	Unknown — not stated by the source
Serial ports quantityKnown for one	1	Unknown — not stated by the source
Network1 differ
Ethernet LAN	Yes	Yes
LAN controllerDiffers	Intel I219LM	Realtek RTL8111G
Ethernet interface typeKnown for one	Unknown — not stated by the source	Gigabit Ethernet
Wake-on-LAN readyKnown for one	Unknown — not stated by the source	Yes
Features2 differ
Component for	PC	PC
Motherboard form factor	micro ATX	micro ATX
Motherboard chipset family	Intel	Intel
Motherboard chipsetDiffers	Intel® Q170	Intel® B150
Audio chip	Realtek ALC671	Realtek ALC671
Audio output channels	5.1 channels	5.1 channels
Power source type	ATX	ATX
Watch Dog functionKnown for one	Yes	Unknown — not stated by the source
Windows operating systems supportedDiffers	Yes	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window
Linux operating systems supportedKnown for one	Unknown — not stated by the source	Yes
Expansion slotsidentical
Number of M.2 (M) slotsKnown for one	1	Unknown — not stated by the source
PCI Express x1 (Gen 3.x) slotsKnown for one	Unknown — not stated by the source	2
PCI Express x16 (Gen 3.x) slotsKnown for one	Unknown — not stated by the source	1
BIOSidentical
BIOS type	UEFI AMI	UEFI AMI
Processor special features3 differ
Conflict-Free	Yes	Yes
Intel ME Firmware Version	11	11
Intel Rapid Storage Technology	Yes	Yes
Intel Rapid Storage Technology enterprise	No	No
Intel Stable Image Platform Program (SIPP)Differs	Yes	No
Intel Trusted Execution TechnologyDiffers	Yes	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes	Yes
Intel® Smart Response TechnologyDiffers	Yes	No
Intel® Virtualization Technology (Intel® VT)	VT-d	VT-d
Trusted Platform Module (TPM)	Yes	Yes
Trusted Platform Module (TPM) version	2.0	2.0
Operational conditions1 differ
Operating temperature (T-T)Differs	10 - 50 °C	10 - 45 °C
Weight & dimensions2 differ
WidthDiffers	213.4 mm	218 mm
DepthDiffers	243.8 mm	183 mm
Other features1 differ
S/PDIF in connectorKnown for one	No	Unknown — not stated by the source
Intel® vPro™ Platform EligibilityDiffers	Yes	No
S/PDIF in portKnown for one	Unknown — not stated by the source	No

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
