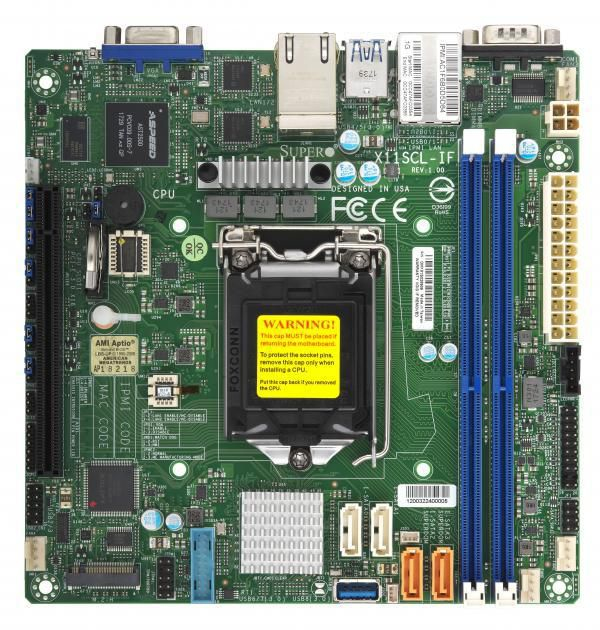

E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4)
Model E-MBD-X11SCL-IF-O
49 specifications
- Weight900 g
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics card modelAspeed AST2500
- USB 2.0 connectors2
Overview
- Weight
- 900 g
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card model
- Aspeed AST2500
- USB 2.0 connectors
- 2
- Brand
- Ernitec
- Category
- Motherboard
- Model
- E-MBD-X11SCL-IF-O
- Part number
- E-MBD-X11SCL-IF-O
- Also known as
- Ernitec E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4)
Specifications
49 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron® |
| Processor number of cores supported | 6 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID support | Yes |
| RAID levels | 0 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard chipset | Intel C242 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.0 |
| Plug and Play | Yes |
| Real-time clock (RTC) | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170.2 mm |
| Depth | 170.2 mm |
Other features
| Specification | Value |
|---|---|
| UEFI version | 2.7 |
| Supported RDIMM module capacity | 4GB |
| Weight | 900 g |
| Number of DIMM slots | 2 |
| Number of processors supported | 1 |
| Thermal Design Power (TDP) | 95 W |
