Product comparison · 2 motherboards

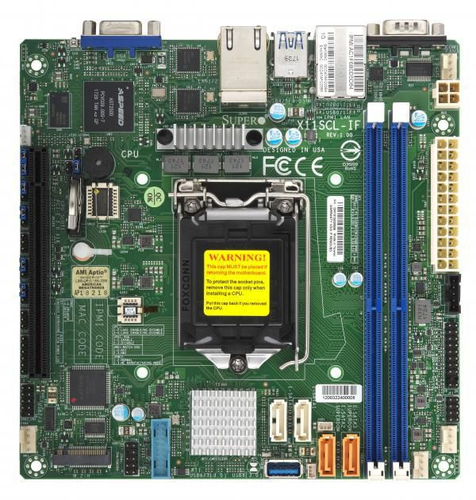

Ernitec E-H510M-HDV/M.2 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX vs Ernitec E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4)

27specifications compared
12differ
15identical
40known for one product only

Key differences

Processor socket
- E-H510M-HDV/M.2 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX:LGA 1200 (Socket H5)
- E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4):LGA 1151 (Socket H4)
Supported storage drive interfaces
- E-H510M-HDV/M.2 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX:M.2
- E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4):SATA III
USB 2.0 connectors
- E-H510M-HDV/M.2 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX:1
- E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4):2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
- E-H510M-HDV/M.2 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX:1
- E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4):2
USB 2.0 ports quantity
- E-H510M-HDV/M.2 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX:4
- E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4):2
Ethernet LAN (RJ-45) ports
- E-H510M-HDV/M.2 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX:1
- E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4):2
LAN controller
- E-H510M-HDV/M.2 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX:Intel® I219-V
- E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4):Intel I210
Component for
- E-H510M-HDV/M.2 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX:PC
- E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4):Server

Side by side

Differences highlightedShow differences only

Comparison of E-H510M-HDV/M.2, E-MBD-X11SCL-IF-O
67 specifications	A Ernitec E-H510M-HDV/M.2 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX Model E-H510M-HDV/M.2 View product	B Ernitec E-MBD-X11SCL-IF-O motherboard Intel C242 LGA 1151 (Socket H4) Model E-MBD-X11SCL-IF-O View product
Processor1 differ
Processor manufacturer	Intel	Intel
Processor socketDiffers	LGA 1200 (Socket H5)	LGA 1151 (Socket H4)
Compatible processor seriesKnown for one	Unknown — not stated by the source	Intel® Celeron®
Processor number of cores supportedKnown for one	Unknown — not stated by the source	6
Maximum number of SMP processorsKnown for one	1	Unknown — not stated by the source
Memoryidentical
Supported memory types	DDR4-SDRAM	DDR4-SDRAM
Memory voltageKnown for one	Unknown — not stated by the source	1.2 V
Supported memory clock speeds	2133 MHz	2133 MHz
Maximum internal memory	64 GB	64 GB
Unbuffered memoryKnown for one	Unknown — not stated by the source	Yes
Number of memory slotsKnown for one	2	Unknown — not stated by the source
Memory slots typeKnown for one	DIMM	Unknown — not stated by the source
Memory channelsKnown for one	Dual-channel	Unknown — not stated by the source
Storage controllers1 differ
Supported storage drive interfacesDiffers	M.2	SATA III
RAID supportKnown for one	Unknown — not stated by the source	Yes
RAID levelsKnown for one	Unknown — not stated by the source	0
Supported storage drive typesKnown for one	HDD & SSD	Unknown — not stated by the source
Number of HDDs supportedKnown for one	4	Unknown — not stated by the source
Graphicsidentical
On-board graphics card modelKnown for one	Unknown — not stated by the source	Aspeed AST2500
Internal I/O2 differ
USB 2.0 connectorsDiffers	1	2
USB 3.2 Gen 1 (3.1 Gen 1) connectorsDiffers	1	2
Number of SATA III connectors	4	4
Number of COM connectors	1	1
TPM connector	Yes	Yes
Front panel audio connectorKnown for one	Yes	Unknown — not stated by the source
ATX Power connector (24-pin)Known for one	Yes	Unknown — not stated by the source
CPU fan connectorKnown for one	Yes	Unknown — not stated by the source
Rear panel I/O ports2 differ
USB 2.0 ports quantityDiffers	4	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2	2
Ethernet LAN (RJ-45) portsDiffers	1	2
VGA (D-Sub) ports quantity	1	1
PS/2 ports quantityKnown for one	2	Unknown — not stated by the source
HDMI ports quantityKnown for one	1	Unknown — not stated by the source
DVI-D ports quantityKnown for one	1	Unknown — not stated by the source
Network1 differ
Ethernet LAN	Yes	Yes
Ethernet interface type	Gigabit Ethernet	Gigabit Ethernet
LAN controllerDiffers	Intel® I219-V	Intel I210
Wi-Fi	No	No
Wake-on-LAN readyKnown for one	Yes	Unknown — not stated by the source
Features2 differ
Component forDiffers	PC	Server
Motherboard chipsetDiffers	Intel H510	Intel C242
Motherboard form factorKnown for one	micro ATX	Unknown — not stated by the source
Audio chipKnown for one	Realtek ALC897	Unknown — not stated by the source
Audio output channelsKnown for one	7.1 channels	Unknown — not stated by the source
Expansion slotsidentical
PCI Express x16 (Gen 3.x) slots	1	1
Number of M.2 (M) slotsKnown for one	Unknown — not stated by the source	1
PCI Express x1 (Gen 3.x) slotsKnown for one	1	Unknown — not stated by the source
PCI Express x16 (Gen 4.x) slotsKnown for one	1	Unknown — not stated by the source
BIOS1 differ
BIOS typeDiffers	UEFI AMI	UEFI
BIOS memory sizeKnown for one	Unknown — not stated by the source	256 Mbit
ACPI version	6.0	6.0
Plug and PlayKnown for one	Unknown — not stated by the source	Yes
Real-time clock (RTC)Known for one	Unknown — not stated by the source	Yes
System Management BIOS (SMBIOS) version	2.7	2.7
Operational conditionsidentical
Storage temperature (T-T)Known for one	Unknown — not stated by the source	-40 - 70 °C
Operating relative humidity (H-H)Known for one	Unknown — not stated by the source	8 - 90%
Storage relative humidity (H-H)Known for one	Unknown — not stated by the source	5 - 95%
Packaging data1 differ
Package weightDiffers	1.3 kg	1 kg
Logistics dataidentical
Harmonized System (HS) codeKnown for one	Unknown — not stated by the source	84733020
Weight & dimensionsidentical
WidthKnown for one	Unknown — not stated by the source	170.2 mm
DepthKnown for one	Unknown — not stated by the source	170.2 mm
Other features1 differ
UEFI versionKnown for one	Unknown — not stated by the source	2.7
Supported RDIMM module capacityKnown for one	Unknown — not stated by the source	4GB
WeightDiffers	1 kg	900 g
Number of DIMM slotsKnown for one	Unknown — not stated by the source	2
Number of processors supportedKnown for one	Unknown — not stated by the source	1
Thermal Design Power (TDP)Known for one	Unknown — not stated by the source	95 W

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
