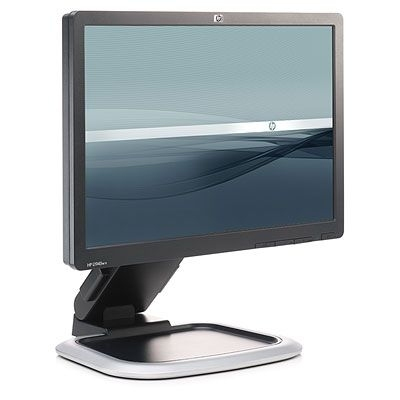

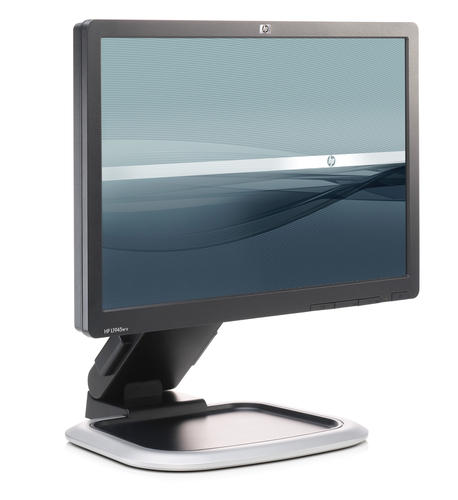

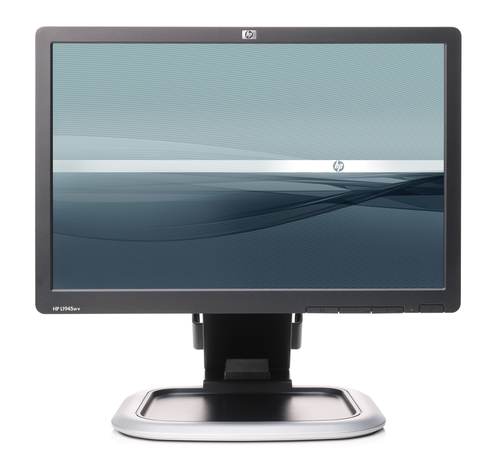

HP L1945wv 19-inch Widescreen LCD Monitor

Model L1945wv 19-inch Widescreen LCD MonitorPart no. KH128AA#ABB?TDEAN 883585662081

55 specifications Checked yesterday

Display48.3 cm (19")
Resolution1440 x 900 pixels
ColourSilver
Panel mounting interface100 x 100 mm
Power consumption (typical)65 W
Operating temperature (T-T)5 - 35 °C

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1440 x 900 pixels
Colour: Silver
Panel mounting interface: 100 x 100 mm
Power consumption (typical): 65 W
Operating temperature (T-T): 5 - 35 °C

Brand: HP
Category: Monitor
Model: L1945wv 19-inch Widescreen LCD Monitor
Part numbers: KH128AA#ABB?TD, KH128AT, KH128AA
EAN / UPC: 883585662081, 883585662098, 883585662104, 883585662111 +7 more
Also known as: HP L1945wv 19-inch Widescreen LCD Monitor computer monitor 48.3 cm (19") 1440 x 900 pixels Silver

Specifications

55 specifications in 10 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1440 x 900 pixels
Touchscreen	No
Display brightness (typical)	300 cd/m²
Response time	5 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Pixel pitch	0.282 x 0.282 mm
Horizontal scan range	24 - 83 kHz
Vertical scan range	50 - 76 Hz
Pixel frequency	140 MHz
Display scanning frequency	Horizontal frequency: 24-83 kHz, Vertical frequency: 50-76 Hz
Surface treatment	Wide-Aspect Active Matrix TFT (thin film transistor)

Design

Specification	Value
Product colour	Silver

Ports & interfaces

Specification	Value
I/O ports	USB 2.0 Hub: self-powered, two ports (cable included)

Ergonomics

Specification	Value
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Adjustable height (max)	13 cm
Swivel angle range	-45 - 45°
Tilt angle range	-5 - 35°
Plug and Play	Yes
Ergonomics	The monitor meets the ergonomic requirement of EN-ISO 13406-2 for flat panel displays.
Display tilt and swivel range	Tilt range: -5° to + 35° vertical tilt, swivel range: -45° to +45°, height adjust: 130 mm, pivot rotation, attachable base

Power

Specification	Value
Power consumption (typical)	65 W
Power consumption (standby)	2 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Relative humidity	20 - 80%
Non-operating relative humidity (non-condensing)	5 - 90%

Weight & dimensions

Specification	Value
Width (with stand)	446 mm
Depth (with stand)	301 mm
Height (with stand)	456 mm
Width (without stand)	446 mm
Depth (without stand)	301 mm
Height (without stand)	456 mm
Weight (without stand)	6.8 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	562 x 235 x 381 mm
Package weight	8.5 kg

Packaging content

Specification	Value
Bundled software	HP Display Assistant is a software utility that enables theft deterrence and allows monitor adjustment, color calibration, and security/asset management using the Display Data Channel Command Interface (DDC/CI) protocol of the connected PC; HP Display LiteSaver allows you to schedule Sleep mode at p

Other features

Specification	Value
Country of origin	China
Audio system	No audio included at platform level
Power requirements	100 - 240 VAC, 50 - 60 Hz
Security features	Kensington Lock-ready
Certification	TCO’03, ISO 13406-2 VDT Guidelines Approval, CISPR Requirements, VCCI Approvals, MIC (Korean) Requirements, CSA, Australian ACA Approval, “GS” Mark, TUV Approvals, CE Marking, FCC Approval, ENERGY STAR qualified, PC-2001 Certified, Microsoft Windows Certification (Microsoft Windows 98, Microsoft Win
Display resolution at frequency	Preset VESA Graphic Modes (non-interlaced): 1280 x 1024 @ 60 and 75 Hz, 1024 x 768 @ 60 and 75 Hz, 1152 x 870 @ 75 Hz (Mac), 1152 x 900 @ 66 Hz (Sun), 832 x 624 @ 75 Hz (Mac), 800 x 600 @ 60 and 75 Hz, 720 x 400 @ 70 Hz, 640 x 480 @ 60 and 75 Hz, 1440 x 900 @ 60 Hz, 1280 x 960 @ 60 Hz
Display video input type connector	15-pin D-sub VGA
Multimedia	Optional HP LCD Speaker Bar: powered directly by the monitor or PC, the Speaker Bar seamlessly attaches to the monitor's lower bezel to bring full audio support to select HP LCD monitors. Features include dual speakers with full sound range and external jack for headphones, part number EE418AA. For
Multimedia connections	Optional HP LCD Speaker Bar: powered directly by the monitor or PC, the Speaker Bar seamlessly attaches to the monitor's lower bezel to bring full audio support to select HP LCD monitors. Features include dual speakers with full sound range and external jack for headphones, part number EE418AA. For
UNSPSC-code	43211902
User controls	Power on/off; 3-button OSD (menu, plus, minus) Brightness, contrast, positioning, color temperature (6500k, 9300k, custom), serial number, display, clock, clock phase, monitor management, factory reset
Supplied AC adapter type	AC
