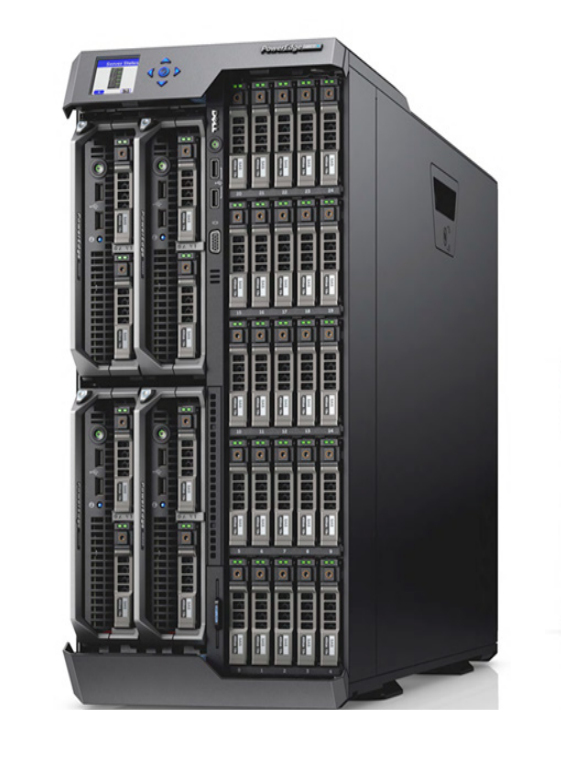

VRTX Tower 4 TB
Model VRTXPart no. VRTX-2574EAN 5397063775897
28 specifications
- Weight45.3 kg
- ColourBlack
- Chassis typeTower
- Storage drives installedYes
- PCI Express slots quantity2
- AC input voltage100-240 V
Overview
- Weight
- 45.3 kg
- Colour
- Black
- Chassis type
- Tower
- Storage drives installed
- Yes
- PCI Express slots quantity
- 2
- AC input voltage
- 100-240 V
- Brand
- Dell
- Category
- Modular Server Chassis
- Model
- VRTX
- Part numbers
- VRTX-2574, VRTX-3995, VRTX-5897, VRTX-5903
- EAN / UPC
- 5397063775897, 5397184012574, 5397184073995
- Also known as
- DELL VRTX Tower 4 TB
Specifications
28 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Device class | Small & Medium Business |
| Product colour | Black |
| Built-in display | Yes |
| Display type | LCD |
| Redundant fans support | Yes |
| Rack rails | Yes |
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 4 |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive capacity | 1 TB |
| Total installed storage capacity | 4 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 25 |
| Storage drive size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots quantity | 2 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| Number of power supply units | 4 |
| Power supply unit (PSU) capacity | 1600 W |
| Redundant power supply (RPS) support | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 310 mm |
| Depth | 730 mm |
| Height | 484 mm |
| Weight | 45.3 kg |
