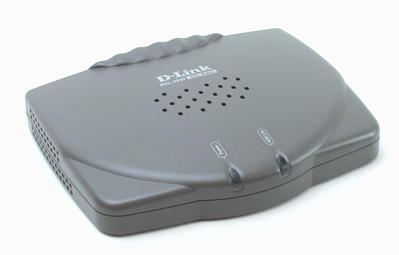

Modem EN ADSL ext USB Annex B RJ11
Model Modem EN ADSL ext USB Annex B RJ11Part no. DSL-260I/EU
13 specifications
- ConnectivityUSB
- Modem speed8000 Kbit/s
- Digital signal protocolADSL
- Operating temperature (T-T)0 - 40 °C
- Depth115 mm
Overview
- Connectivity
- USB
- Modem speed
- 8000 Kbit/s
- Digital signal protocol
- ADSL
- Operating temperature (T-T)
- 0 - 40 °C
- Depth
- 115 mm
- Brand
- D-Link
- Category
- Modem
- Model
- Modem EN ADSL ext USB Annex B RJ11
- Part number
- DSL-260I/EU
- Also known as
- D-Link EN ADSL ext USB Annex B RJ11 modem 8000 Kbit/s
Specifications
13 specifications in 6 groups
Modem
| Specification | Value |
|---|---|
| Modem speed | 8000 Kbit/s |
| Interface | USB |
Performance
| Specification | Value |
|---|---|
| Supported data transfer rates | G.dmt full rate: Downstream up to 8 Mbps, Upstream up to 640 Kbps; G.lite ADSL: Downstream up to 1.5Mbps, Upstream up to 512Kbps |
| Data link protocols | ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.994.1 (G.hs), ANSI T1.413 Issue 2 |
| Digital signal protocol | ADSL |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | ADSL interface: RJ-11 connector for connection to 26 AWG twisted-pair telephone line Host interface: USB Type B port for upstream connection to USB host |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows 98, Microsoft Windows 98 Second Edition, Microsoft Windows Millennium Edition, Microsoft Windows 2000 / XP |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 115 mm |
| Height | 27 mm |
| Width | 140 mm |
