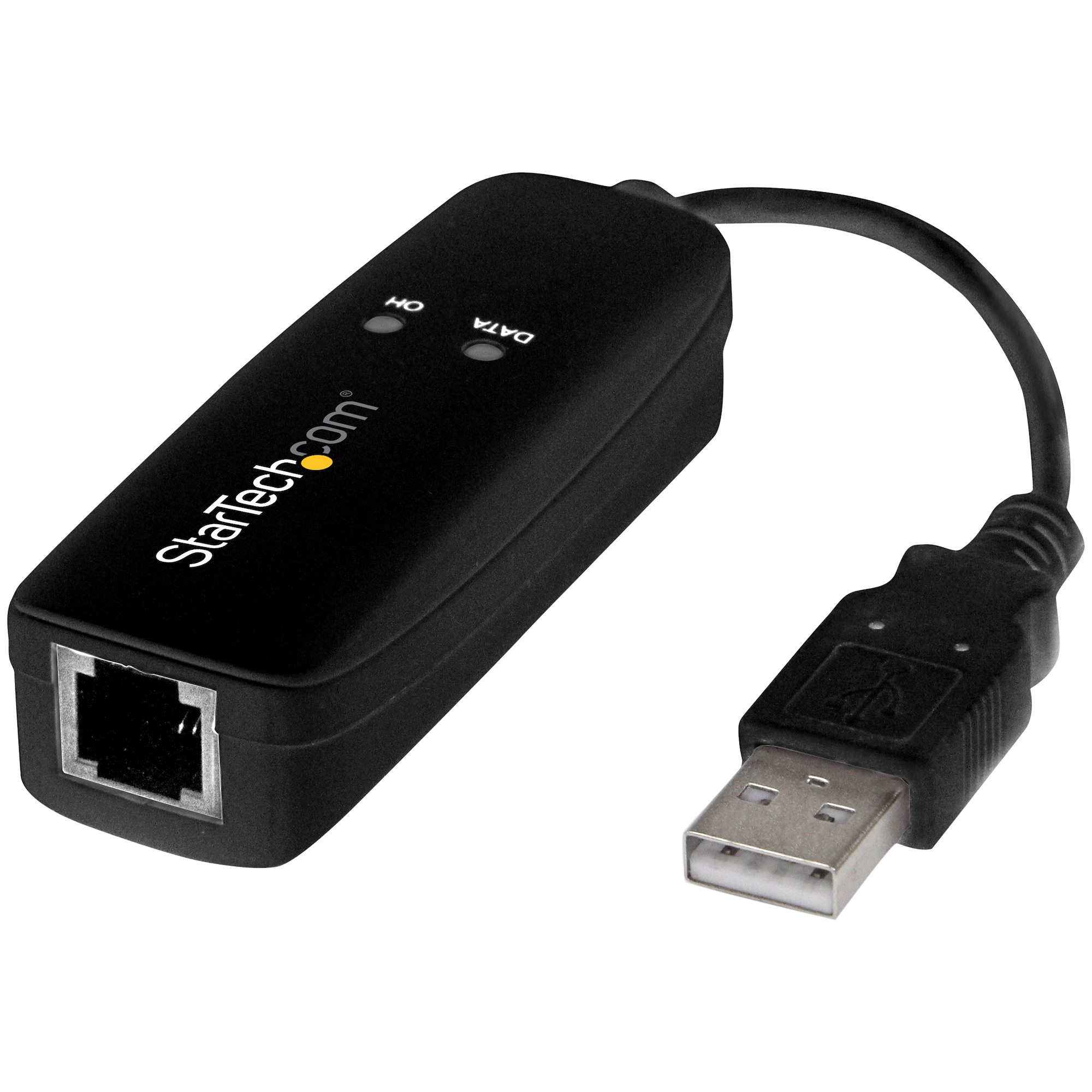

USB 2.0 Fax Modem - 56K External Hardware Dial Up V.92 Modem/ Dongle/Adapter - Computer/Laptop Fax Modem - USB to Telephone Jack - USB Data Modem -
Model USB56KEMH2EAN 065030866477
31 specifications
- ConnectivityUSB 2.0
- Weight28 g
- Modem speed56 Kbit/s
- Upstream data rate0.036 Mbit/s
- LED indicatorsData
- Modem (RJ-11) ports1
Overview
- Connectivity
- USB 2.0
- Weight
- 28 g
- Modem speed
- 56 Kbit/s
- Upstream data rate
- 0.036 Mbit/s
- LED indicators
- Data
- Modem (RJ-11) ports
- 1
- Brand
- StarTech.com
- Category
- Modem
- Model
- USB56KEMH2
- Part number
- USB56KEMH2
- EAN / UPC
- 065030866477
- Also known as
- StarTech.com USB 2.0 Fax Modem - 56K External Hardware Dial Up V.92 Modem/ Dongle/Adapter - Computer/Laptop Fax Modem - USB to Telephone Jack - USB Data Modem -
Specifications
31 specifications in 11 groups
Modem
| Specification | Value |
|---|---|
| Modem speed | 56 Kbit/s |
| Interface | USB 2.0 |
| Chipset | Conexant - CX93010-21Z |
Performance
| Specification | Value |
|---|---|
| Supported data transfer rates | 56 Kbps Down, 36.6 Kbps Up, 14.4 Kbps Fax |
| Upstream data rate | 0.036 Mbit/s |
| Downstream data rate | 0.056 Mbit/s |
| Maximum fax transfer rate | 14.4 Kbps |
| Supported protocols | Modem ITU-T V.92 / V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21 Bell 212A, Bell 103 Fax V.17, V.29, V.27 Ter, V.21 channel 2 Data V.44, V.42bis, MNP 5 |
Features
| Specification | Value |
|---|---|
| LED indicators | Data |
Ports & interfaces
| Specification | Value |
|---|---|
| Modem (RJ-11) ports | 1 |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | - Windows 7, 8, 8.1, 10 - Windows Server 2008 R2, 2012 R2, 2016, 2019 - Mac OS 10.9 to 10.10 - Linux kernel 3.16 to 4.4 LTS |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE, Federal Communications Commission (FCC), REACH, Trade Agreements Act (TAA) |
| Certification | CE, FCC, RoHS, REACH, TAA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 77 mm |
| Height | 20 mm |
| Weight | 28 g |
| Width | 27 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Phone (RJ-11) |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 166 mm |
| Package dimensions (WxDxH) | 136 x 163 x 32 mm |
| Package height | 36 mm |
| Package weight | 136 g |
| Package width | 139 mm |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 369 mm |
| Master (outer) case length | 379 mm |
| Master (outer) case width | 725 mm |
| Products per master (outer) case | 100 pc(s) |
