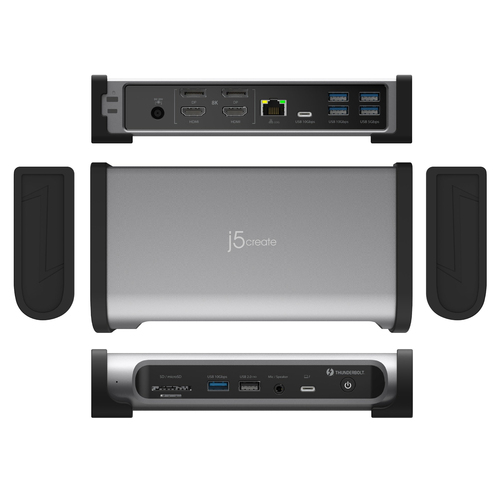

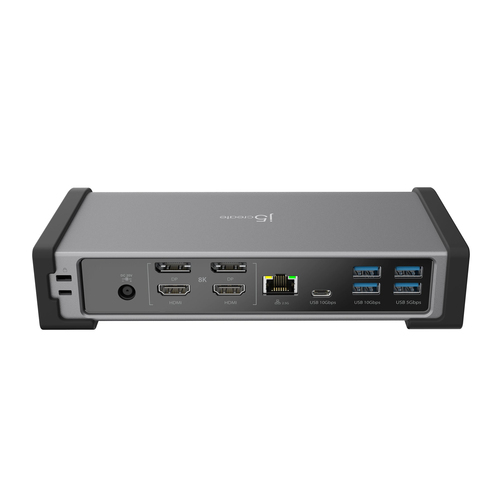

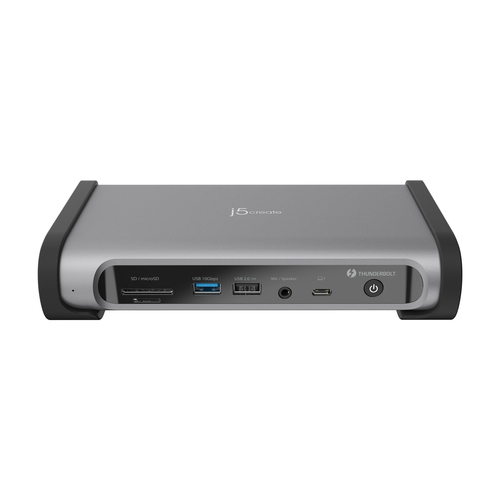

JTD568 mobile device dock station Universal Grey
Model JTD568
37 specifications
- Weight681 g
- ColourGrey
- Basic device typeUniversal
- BluetoothNo
- Docking connector typeUSB Type-C
- AC input voltage20 V
Overview
- Weight
- 681 g
- Colour
- Grey
- Basic device type
- Universal
- Bluetooth
- No
- Docking connector type
- USB Type-C
- AC input voltage
- 20 V
- Brand
- j5create
- Category
- Mobile Device Dock Station
- Model
- JTD568
- Part number
- JTD568
- Also known as
- j5create JTD568 mobile device dock station Universal Grey
Specifications
37 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Basic device type | Universal |
| Brand compatibility | Universal |
| Product colour | Grey |
| Material | Aluminium |
| Maximum refresh rate | 240 Hz |
| Maximum resolution | 7860 x 4320 pixels |
| Data transfer rate | 40 Gbit/s |
| Card reader integrated | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Number of displays supported | 4 |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |

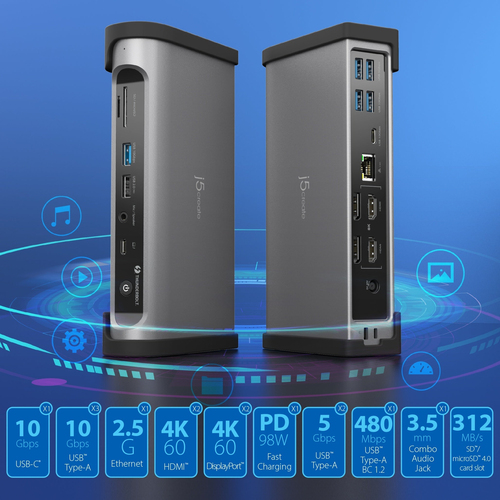

Ports & interfaces
| Specification | Value |
|---|---|
| Docking connector type | USB Type-C |
| USB hub | Yes |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |

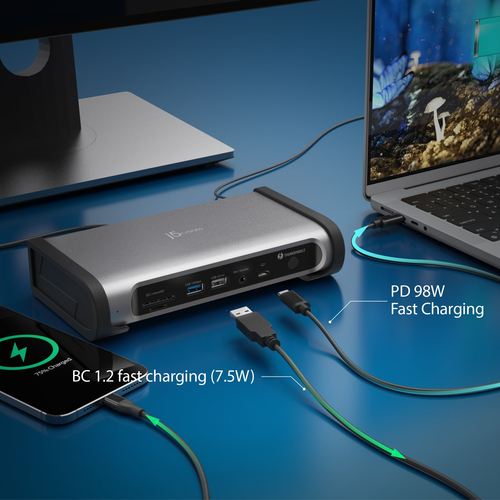

| USB Power Delivery up to | 98 W |
| USB Type-C ports quantity | 1 |
| Audio output | 3.5 mm |
| Combo headphone/mic port | Yes |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 20 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 201 mm |
| Depth | 109 mm |
| Height | 43 mm |
| Weight | 681 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 48 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
