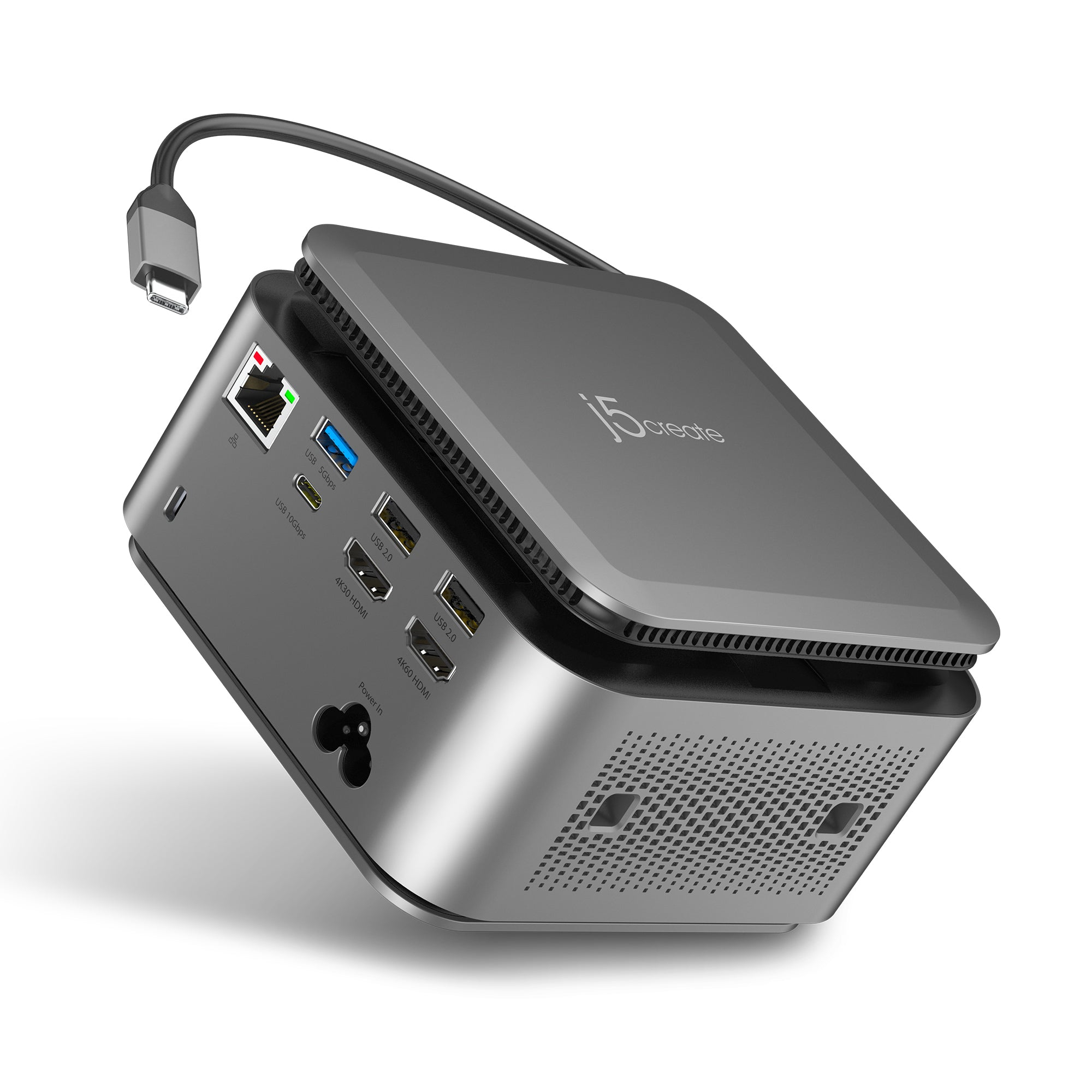

JCDP4140 mobile device dock station Universal Grey
Model JCDP4140
39 specifications
- Weight759 g
- ColourGrey
- Basic device typeUniversal
- BluetoothNo
- Docking connector typeUSB Type-C
- AC input voltage100 - 240 V
Overview
- Weight
- 759 g
- Colour
- Grey
- Basic device type
- Universal
- Bluetooth
- No
- Docking connector type
- USB Type-C
- AC input voltage
- 100 - 240 V
- Brand
- j5create
- Category
- Mobile Device Dock Station
- Model
- JCDP4140
- Part number
- JCDP4140
- Also known as
- j5create JCDP4140 mobile device dock station Universal Grey
Specifications
39 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Basic device type | Universal |
| Brand compatibility | Universal |
| Product colour | Grey |
| Material | Plastic |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate | 10 Gbit/s |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |

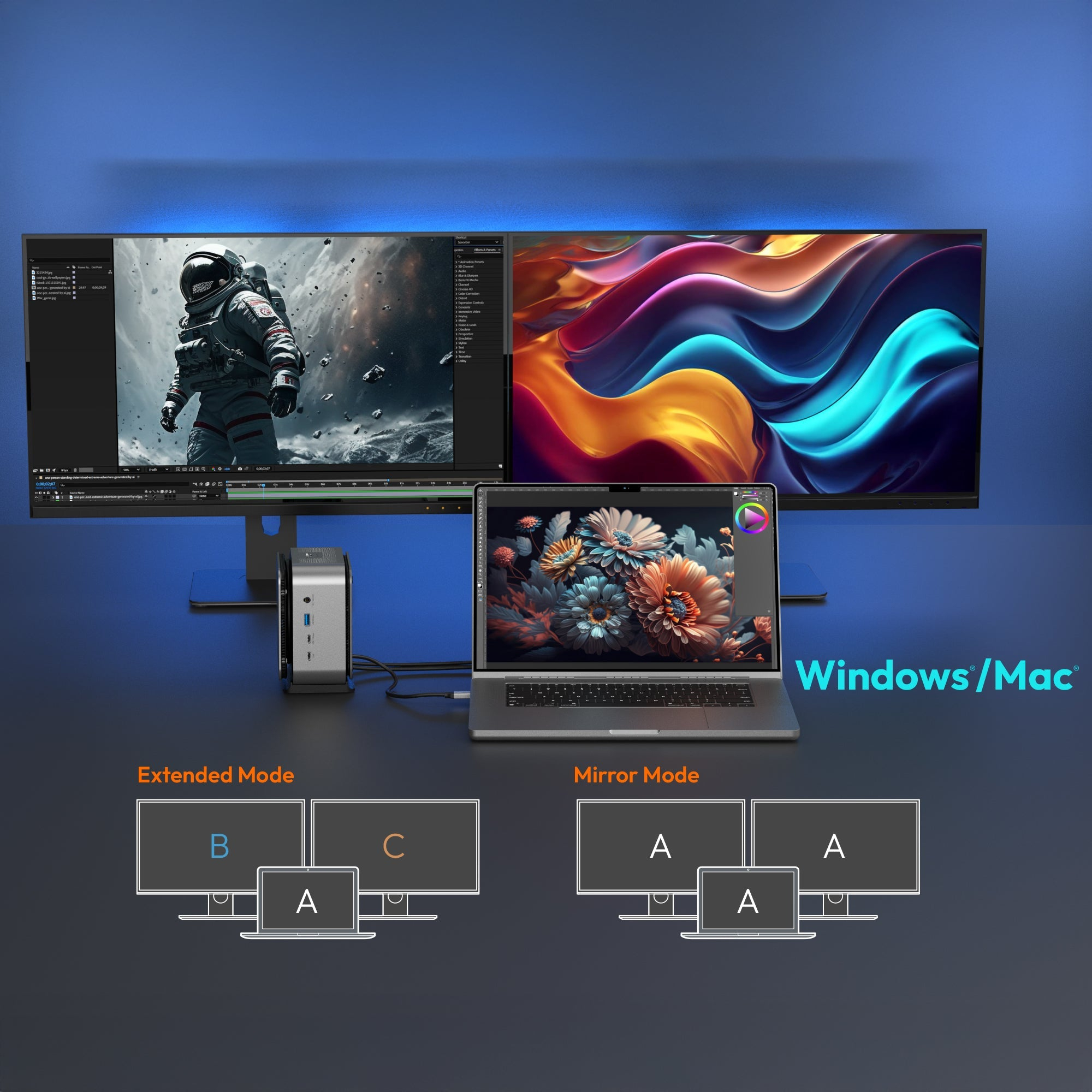

| Number of displays supported | 2 |
Network
| Specification | Value |
|---|---|
| Bluetooth | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

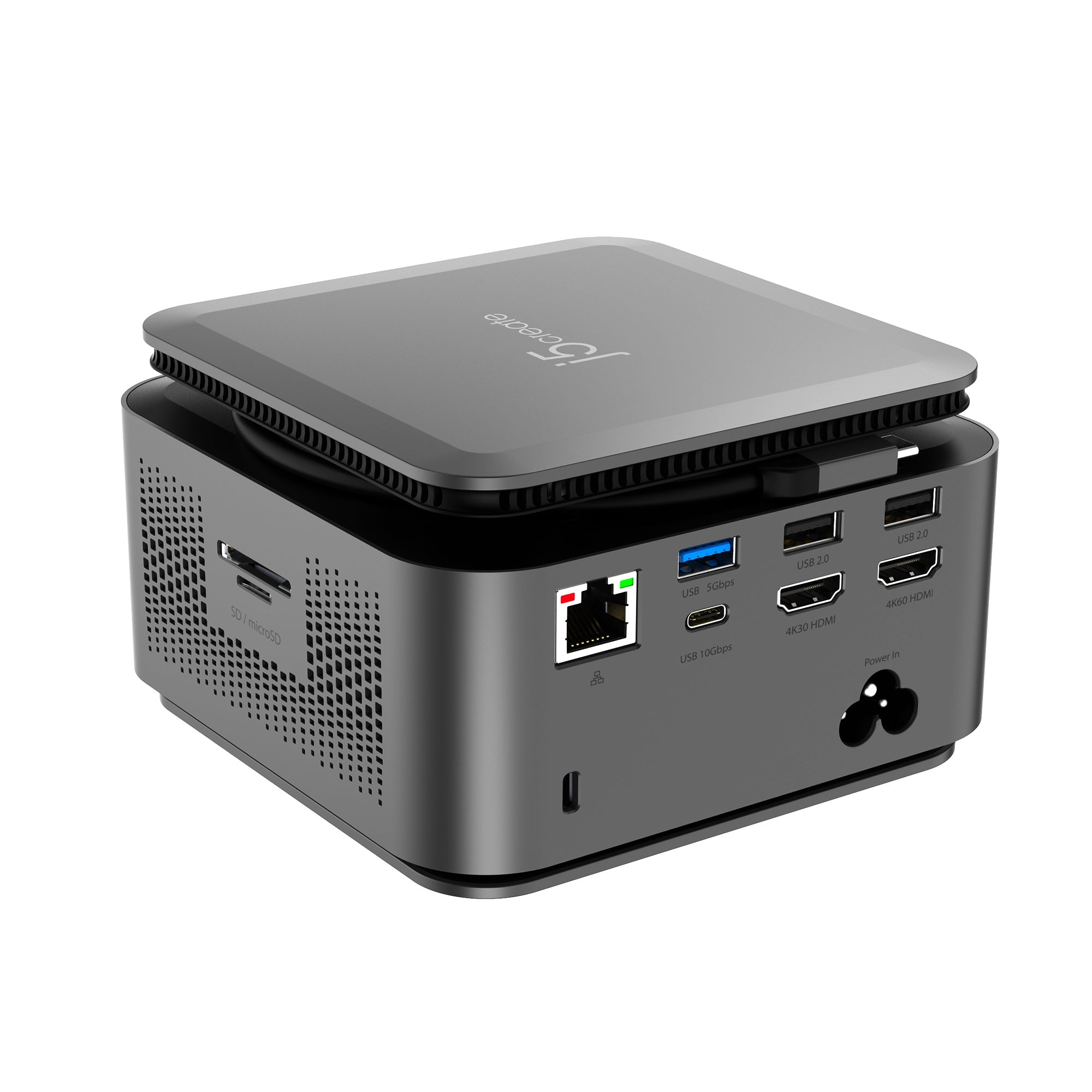

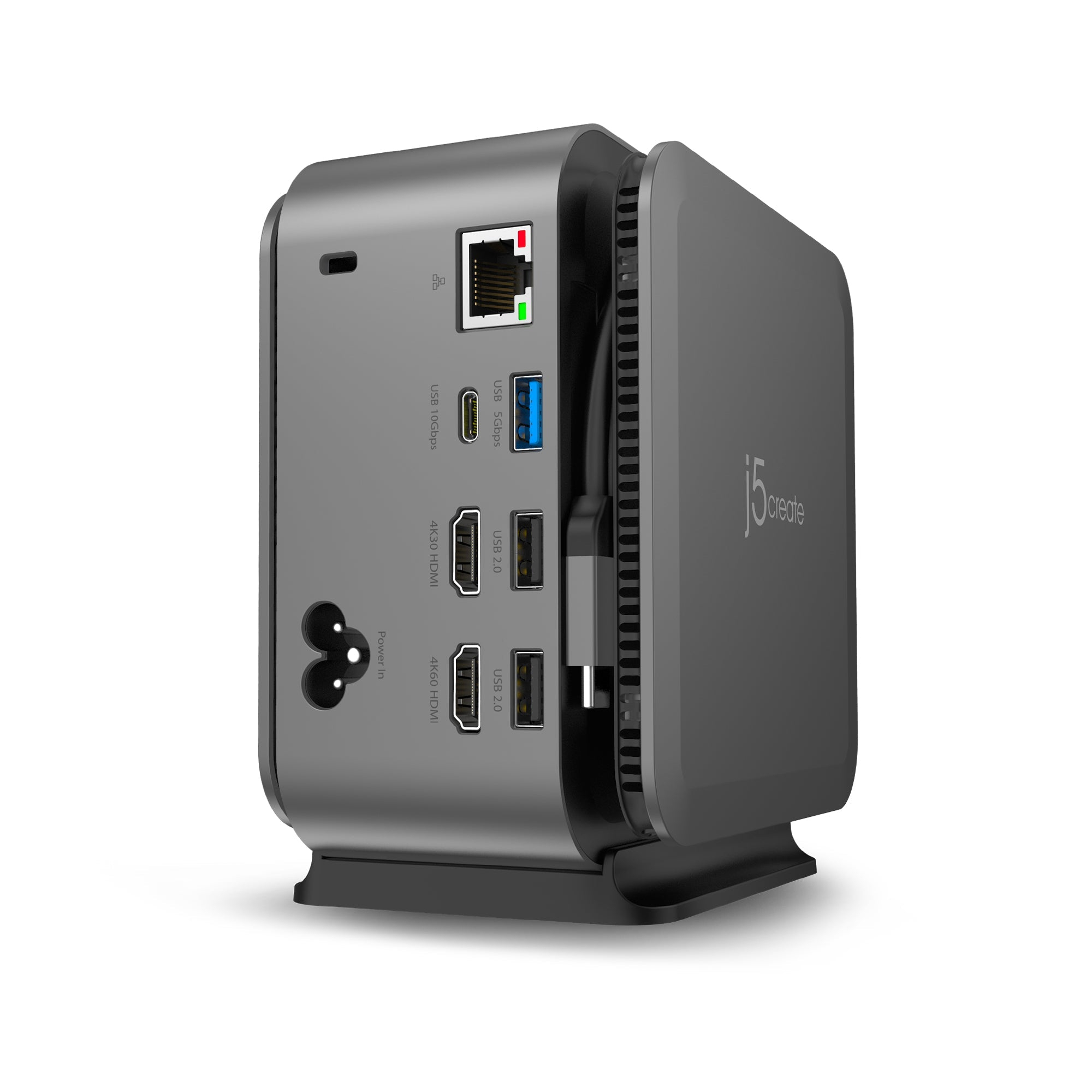

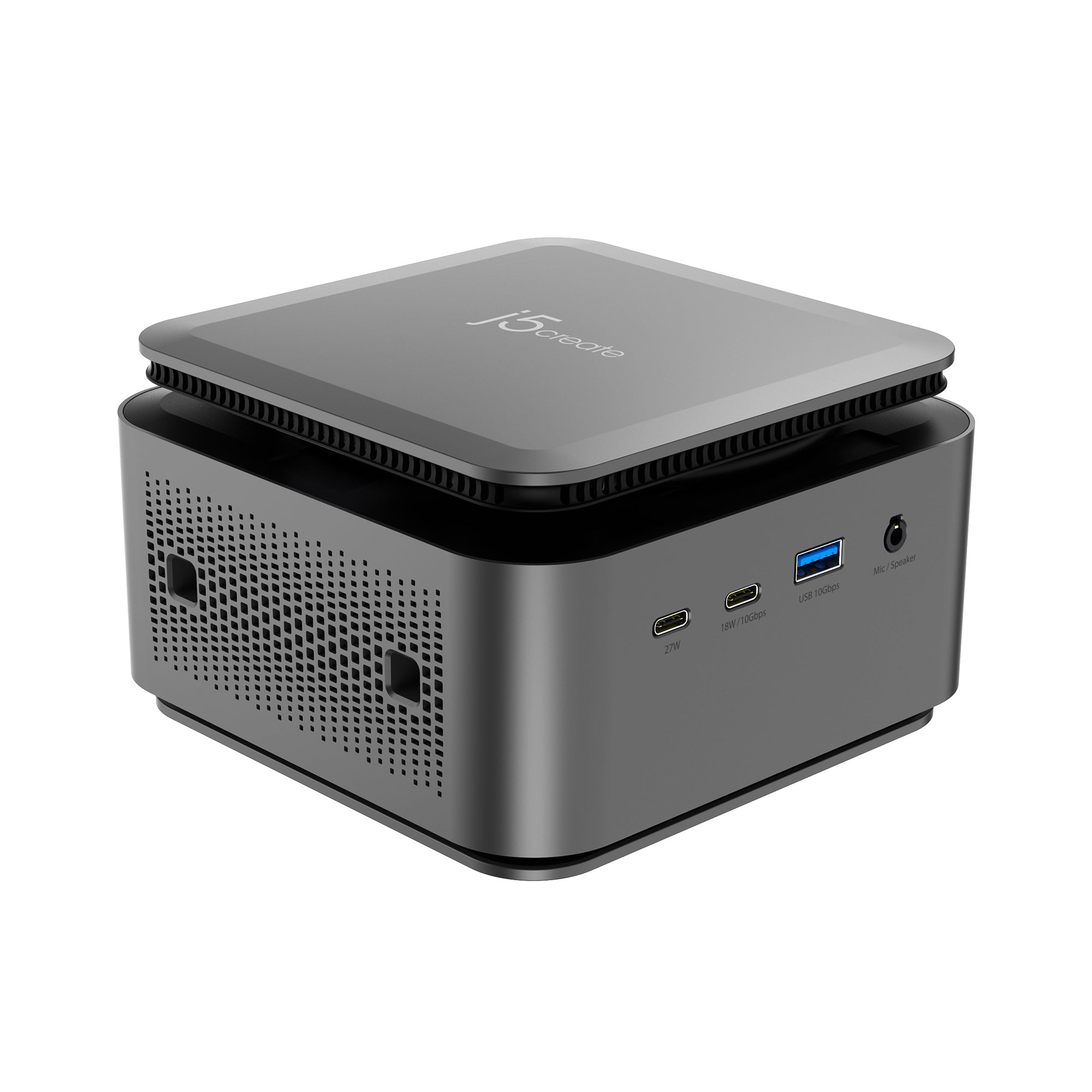

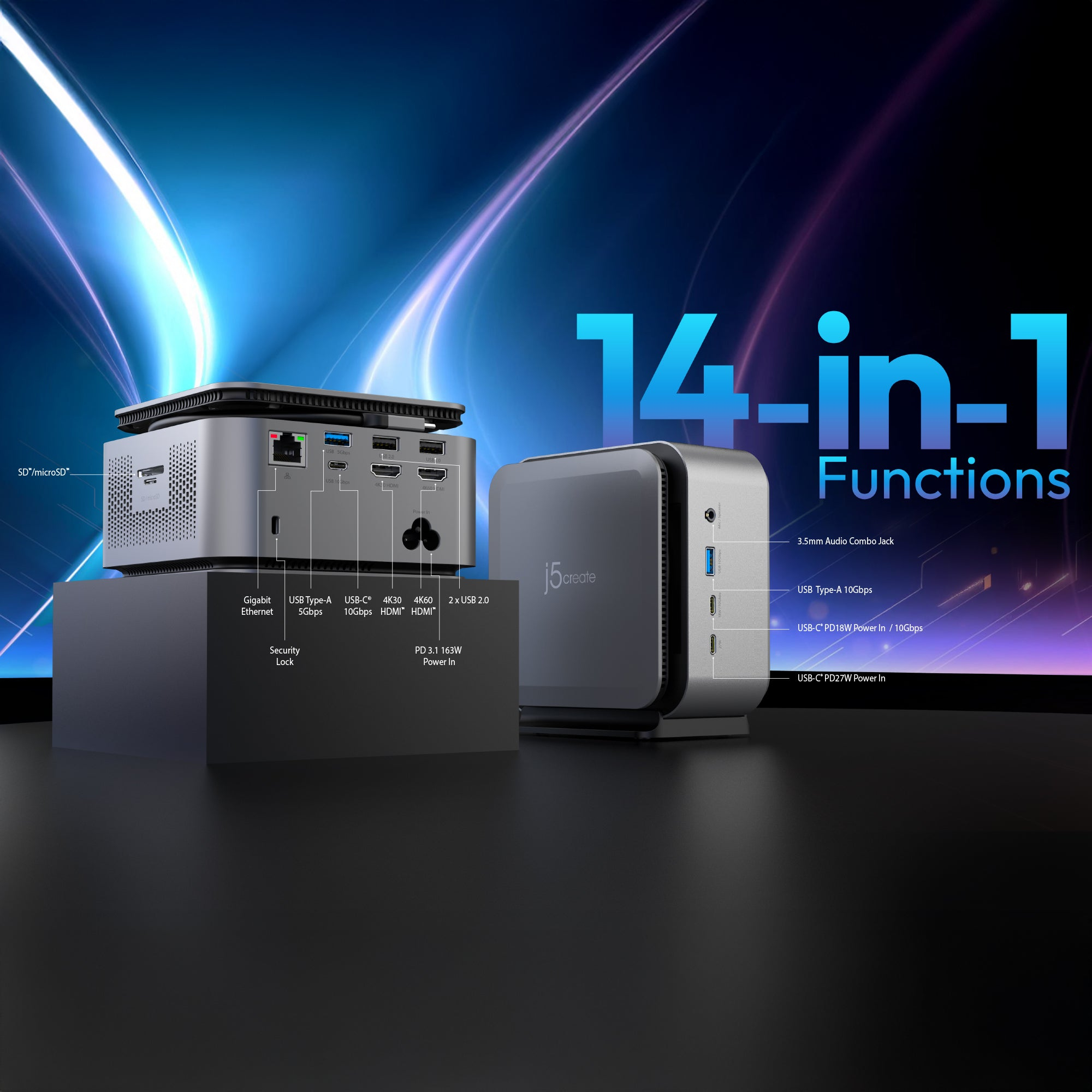

Ports & interfaces
| Specification | Value |
|---|---|
| Docking connector type | USB Type-C |
| USB hub | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Type-C ports quantity | 3 |
| Audio output | 3.5 mm |
| Combo headphone/mic port | Yes |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| DC input voltage | 20 V |
| DC output current | 5 A |

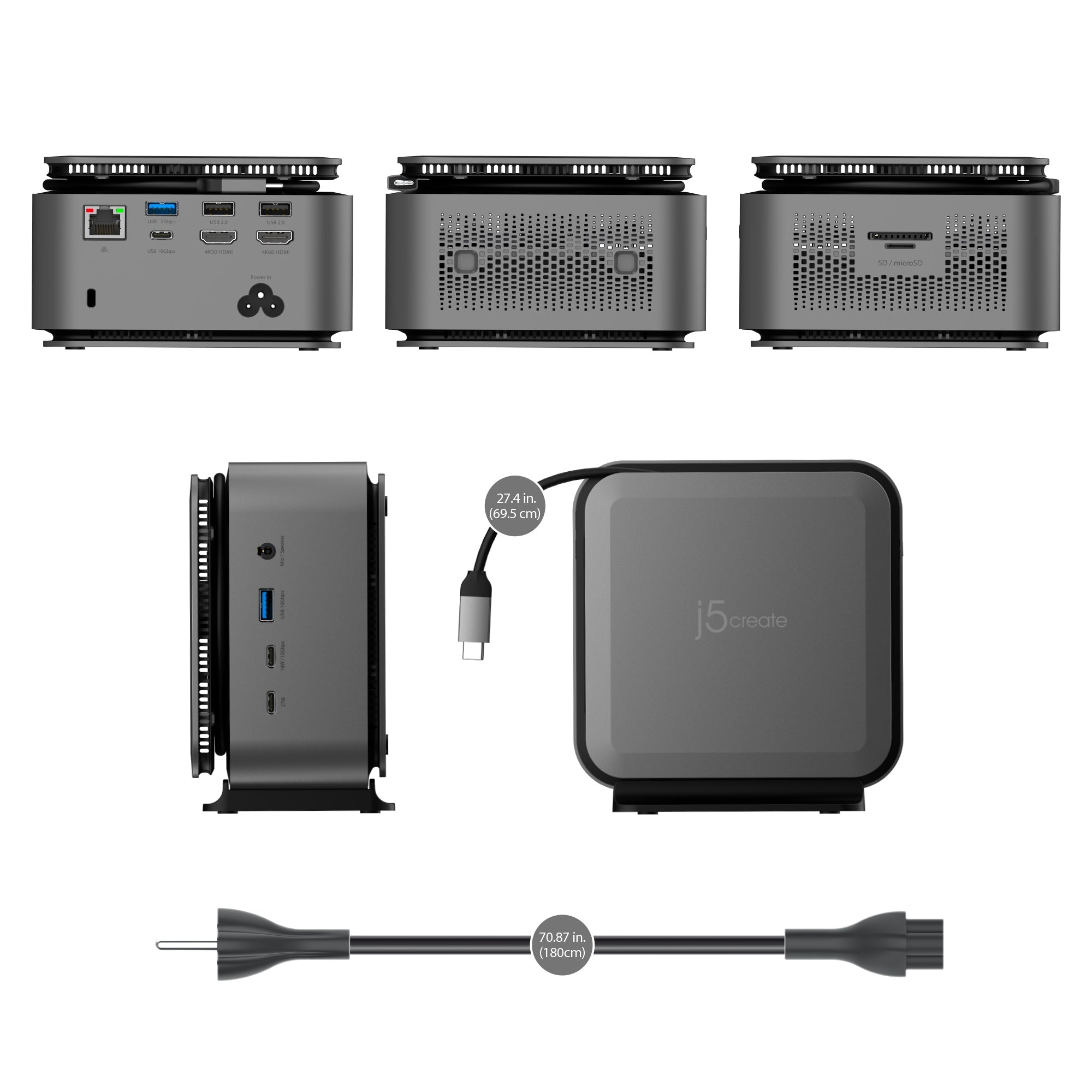

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130.4 mm |
| Depth | 130.4 mm |
| Height | 78.8 mm |
| Cable length | 0.695 m |
| Weight | 759 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -1 - 41 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
