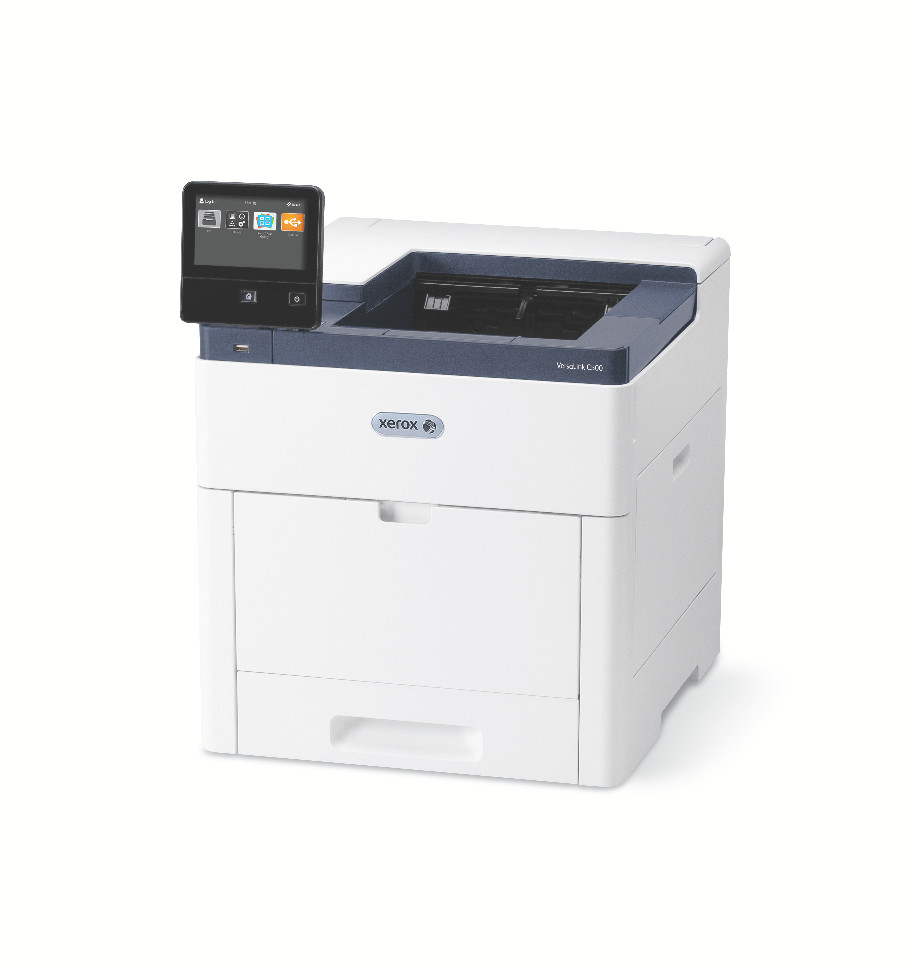

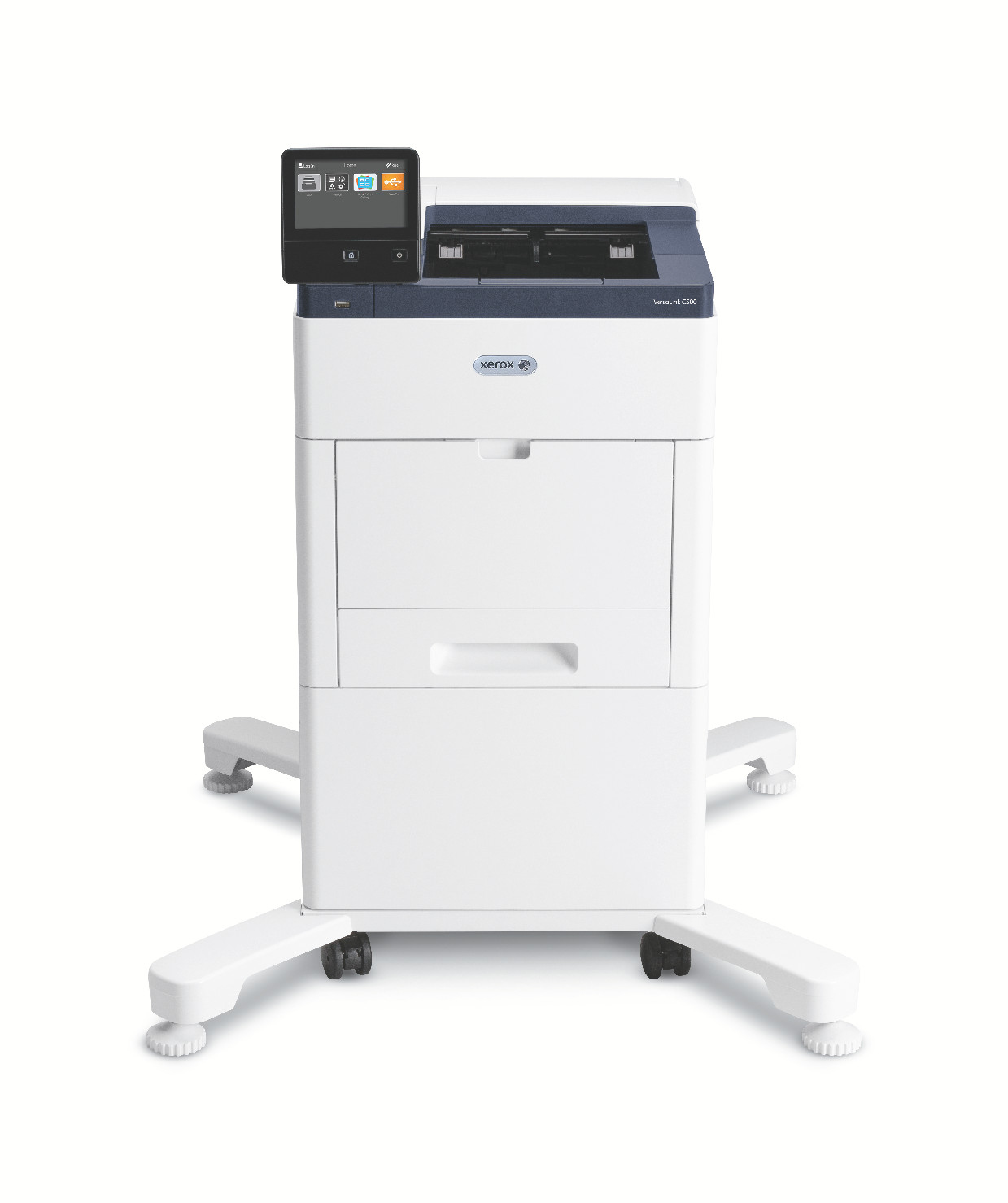

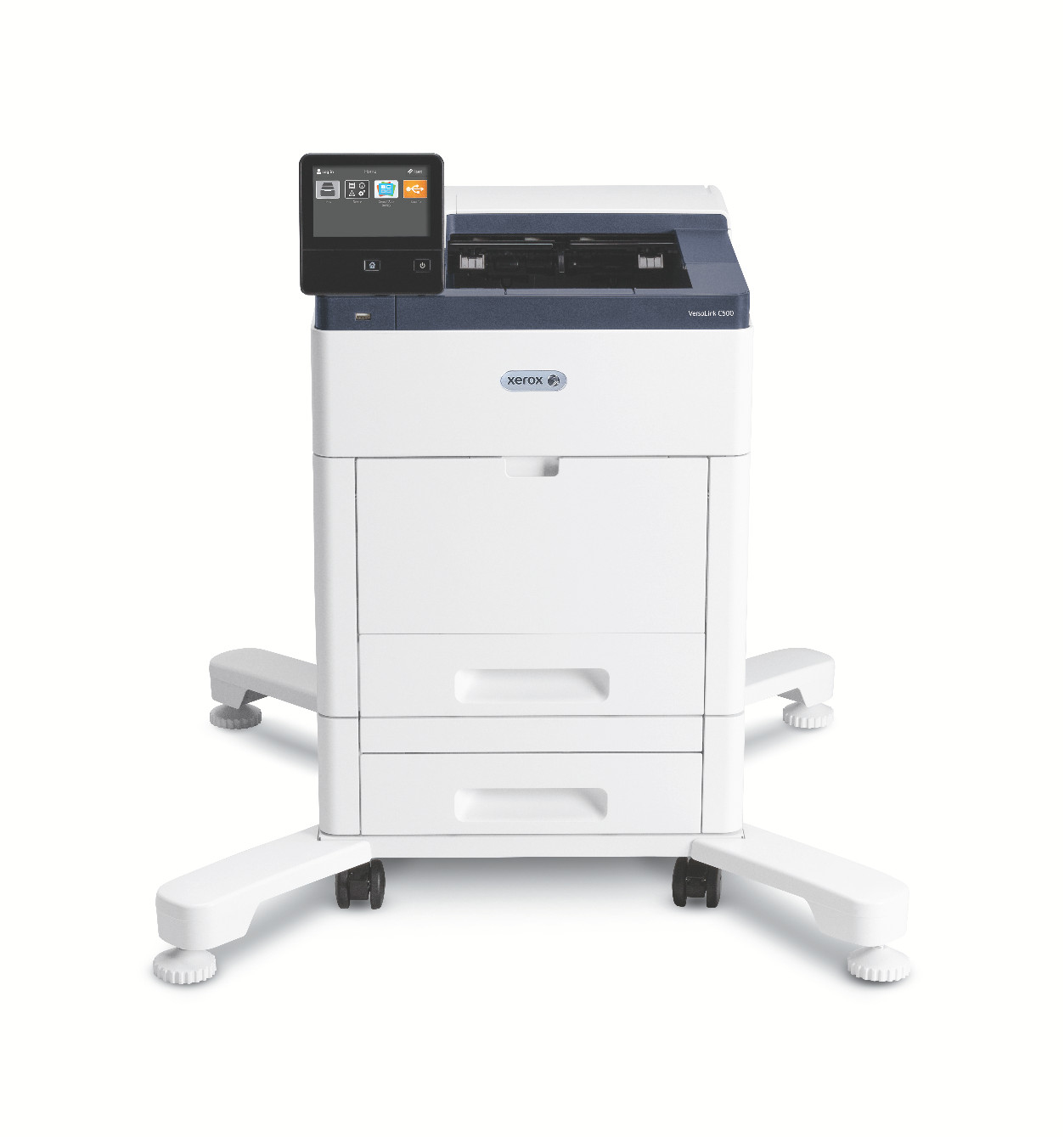

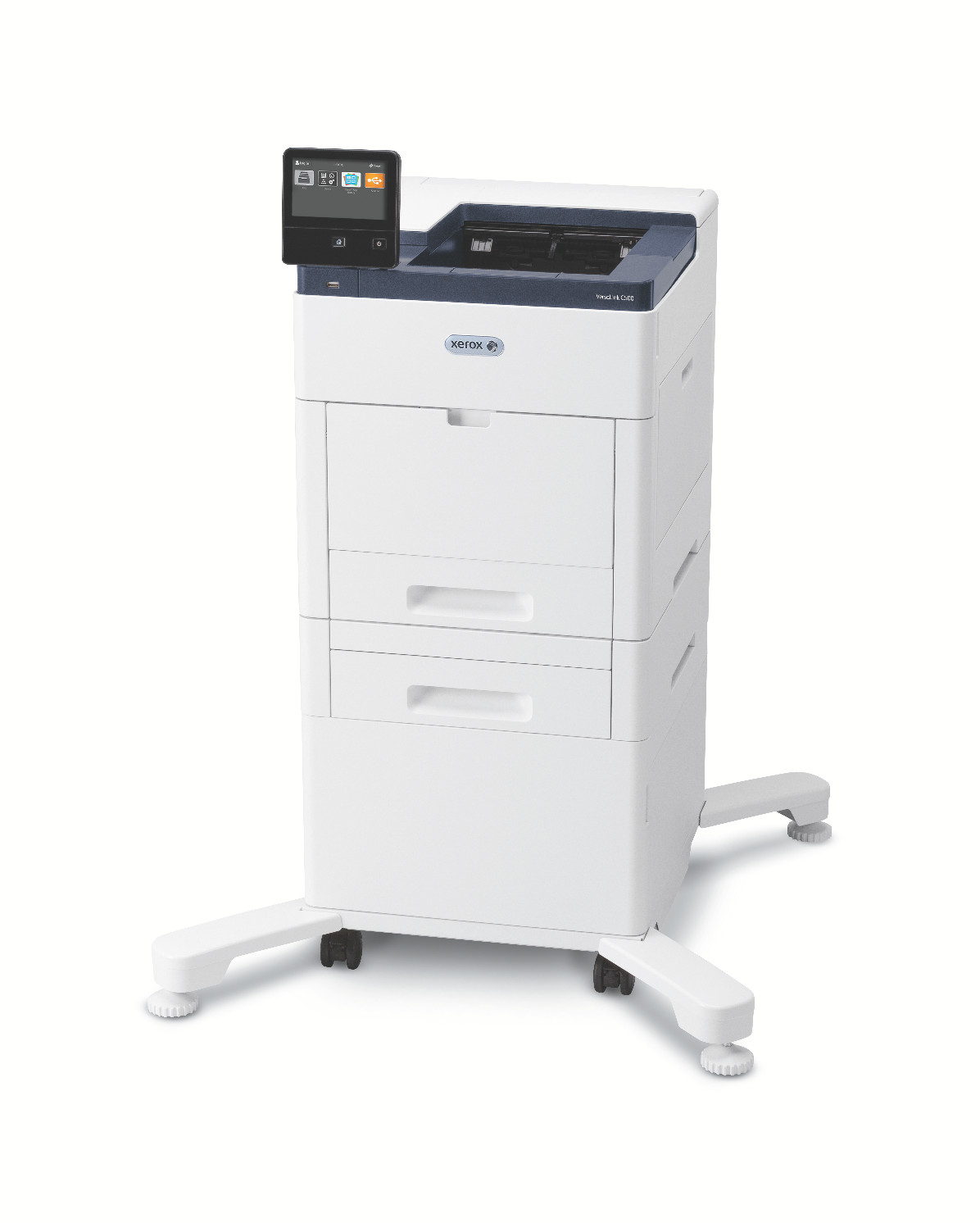

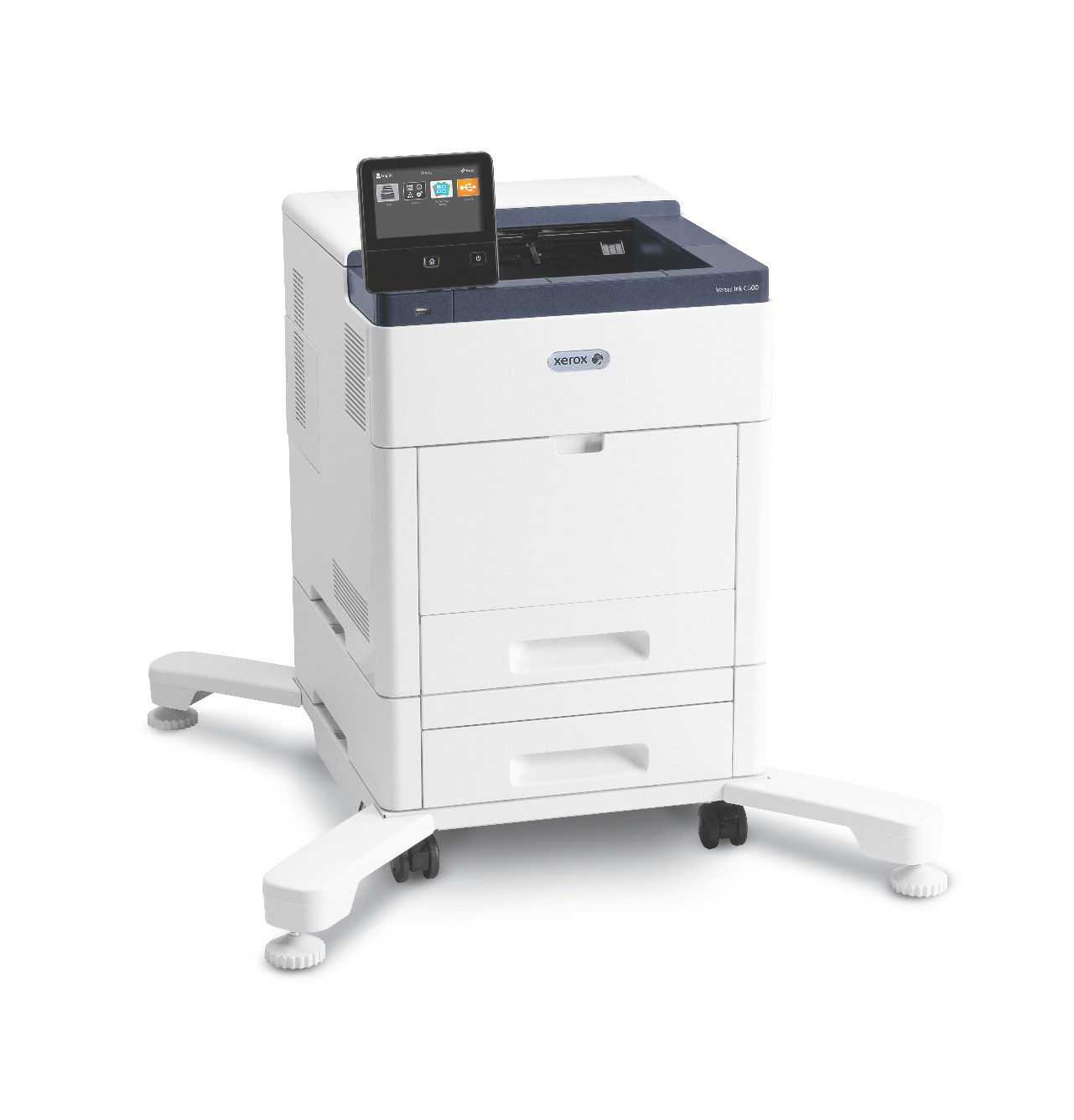

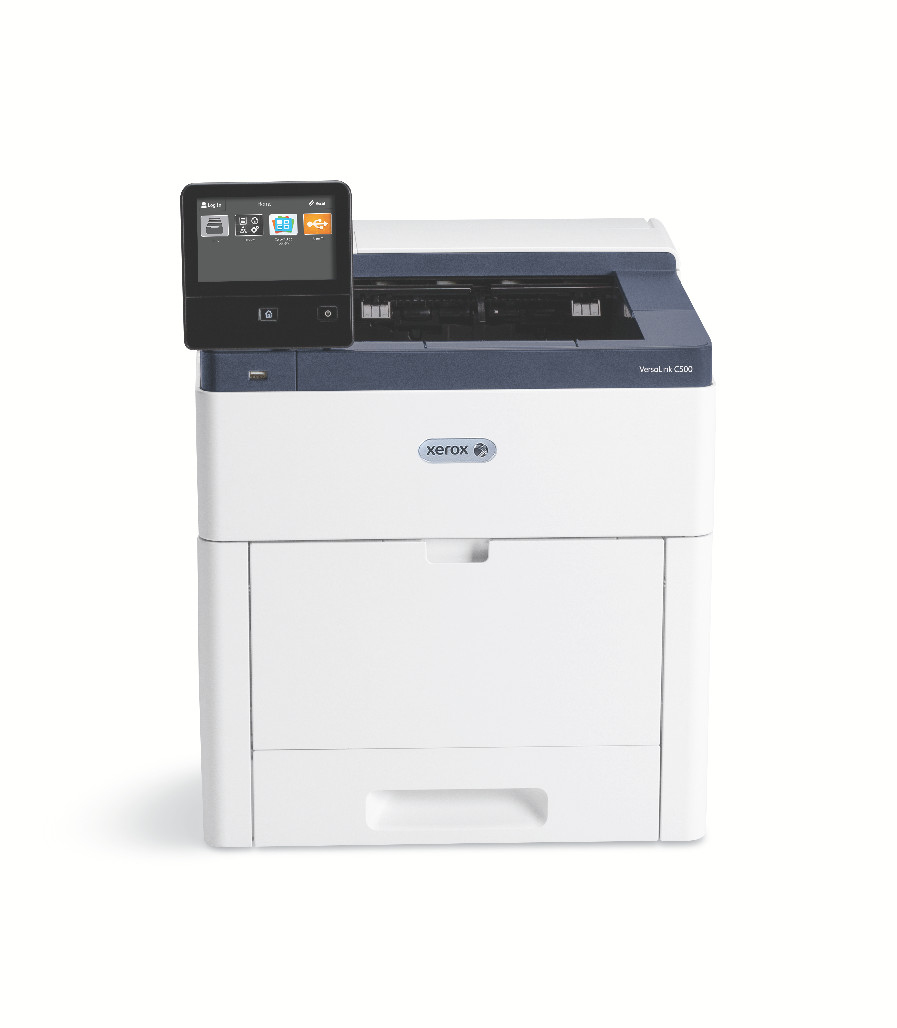

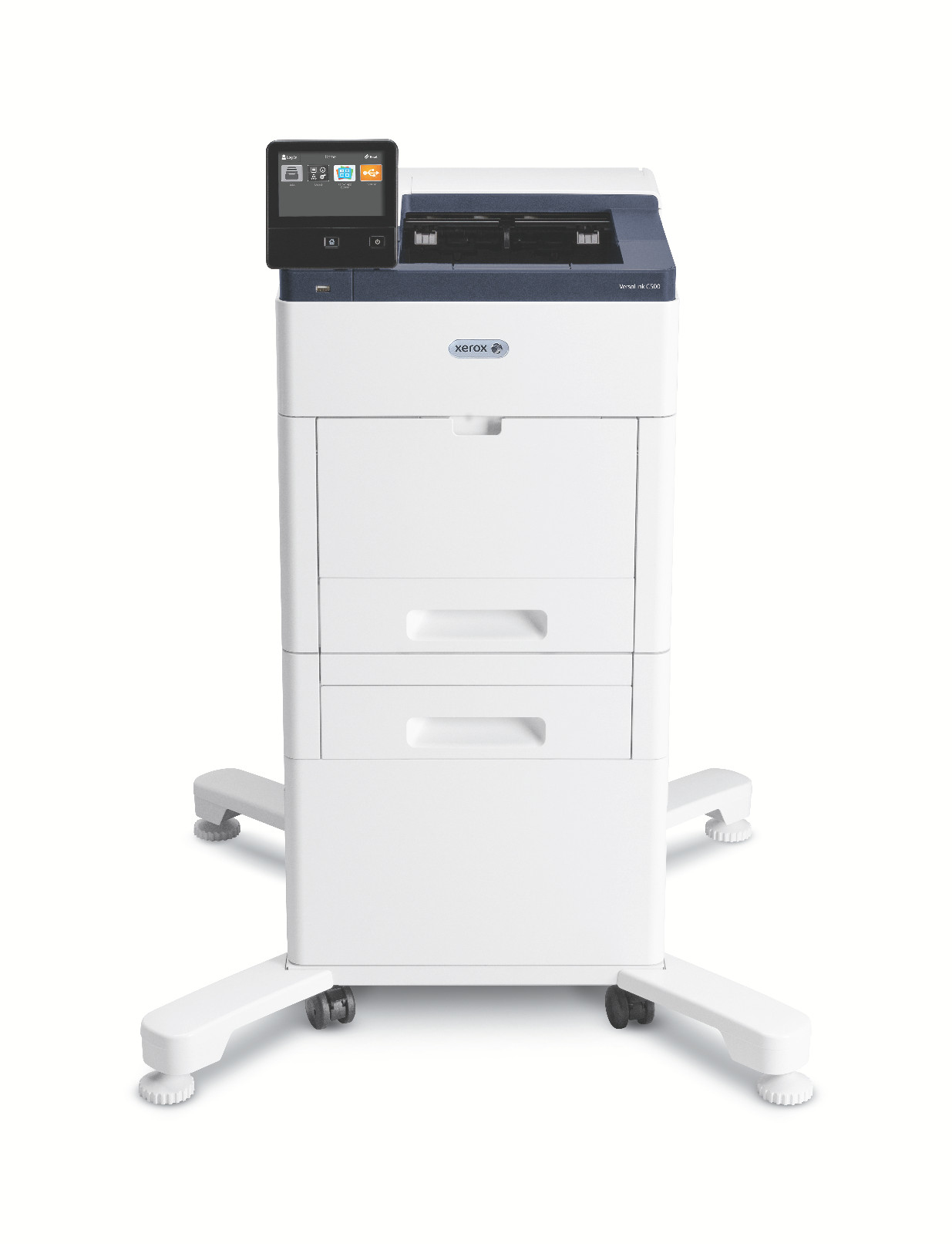

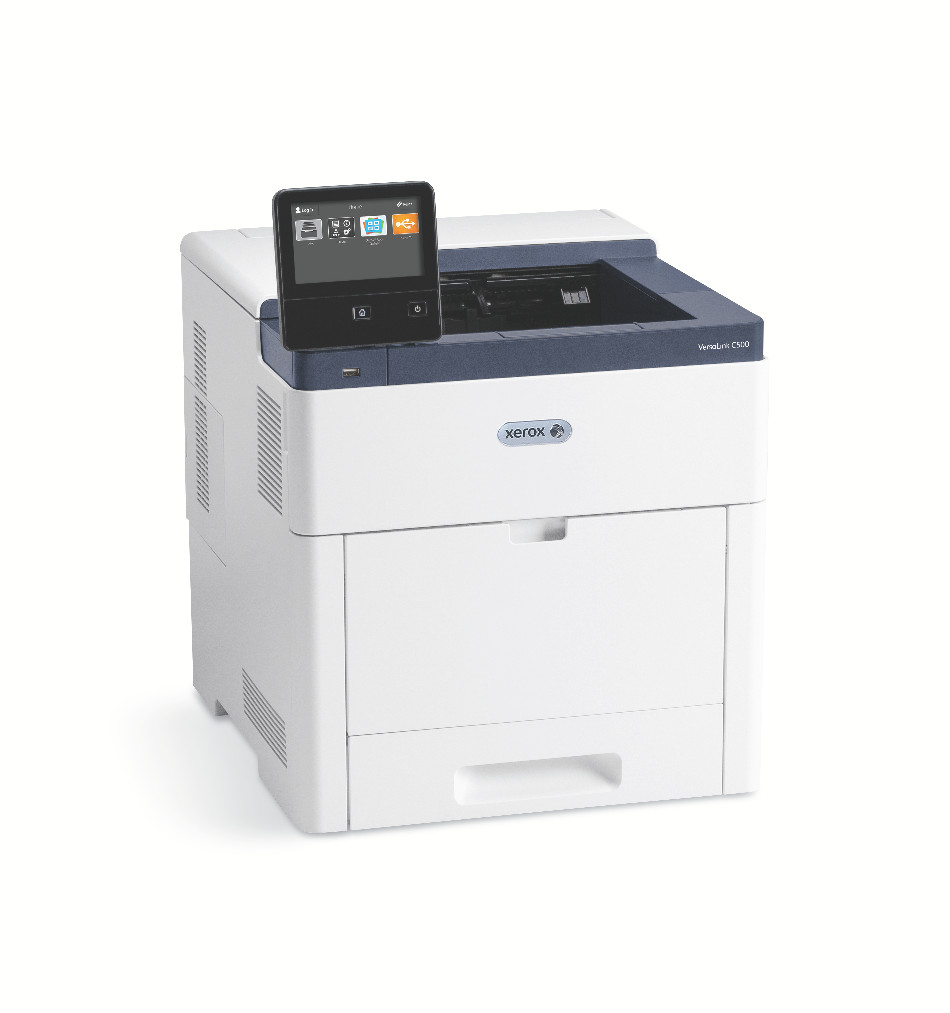

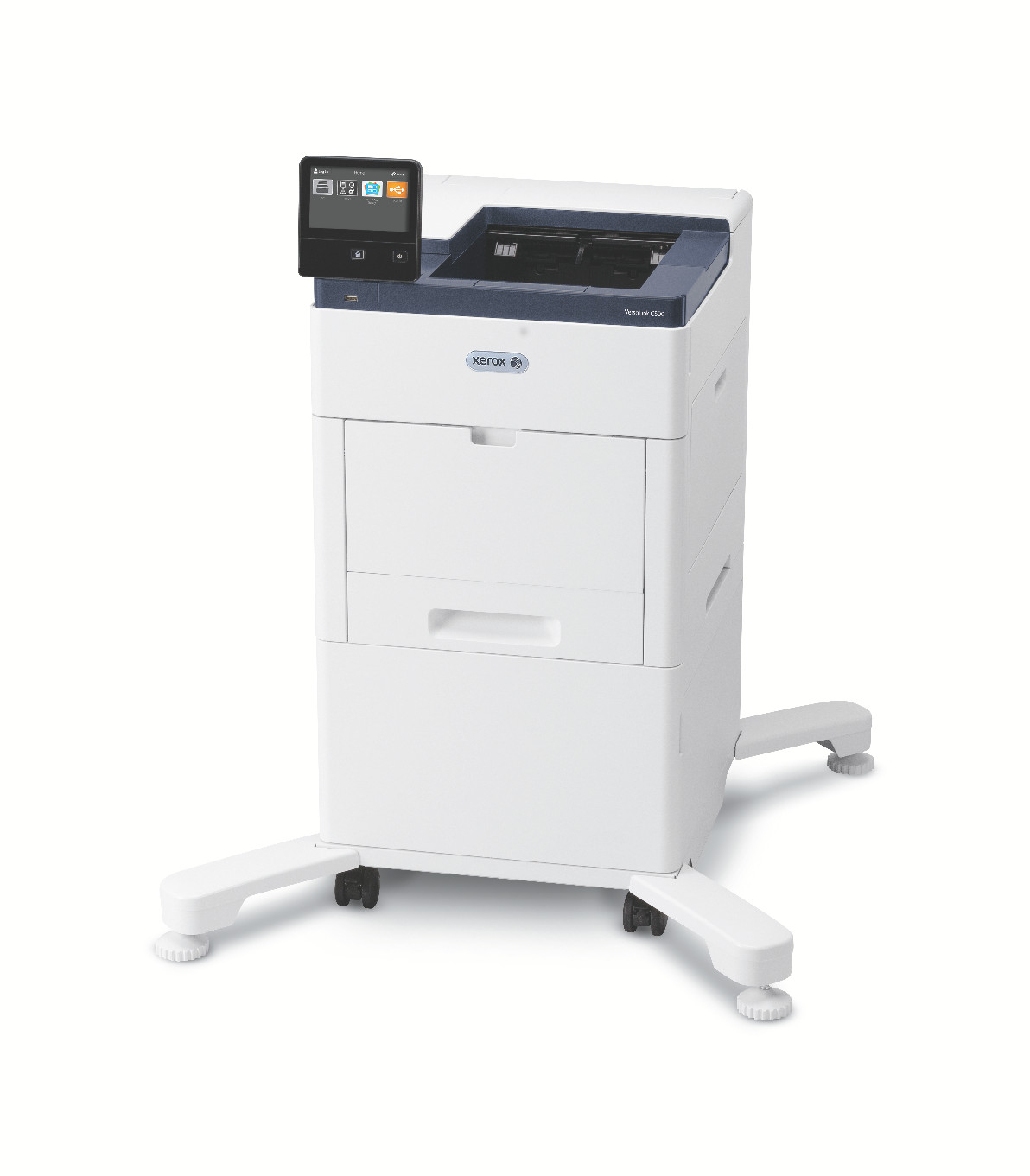

Xerox VersaLink C500 Colour

1200 x 2400 DPI A4

Model C500Part no. C500_DNMEAN 095205847772

95 specifications

Display12.7 cm (5")
Memory2048 MB
Weight27.6 kg
ColourYes
Maximum duty cycle120000 pages per month
Total number of input trays2

See all specifications

Overview

Display: 12.7 cm (5")
Memory: 2048 MB
Weight: 27.6 kg
Colour: Yes
Maximum duty cycle: 120000 pages per month
Total number of input trays: 2

Brand: Xerox
Category: Laser Printer
Model: C500
Part numbers: C500_DNM, C500/DN, C500
EAN / UPC: 095205847772, 095205847765
Also known as: Xerox VersaLink C500 Colour 1200 x 2400 DPI A4

Specifications

95 specifications in 16 groups

Printing

Specification	Value
Colour	Yes
Print technology	LED
Duplex printing	Yes
Maximum resolution	1200 x 2400 DPI
Print resolution colour	1200 x 2400 DPI
Print resolution black	1200 x 2400 DPI
Print speed (black, normal quality, A4/US Letter)	43 ppm
Duplex print speed (black, normal quality, A4/US Letter)	42 ppm
Duplex print speed (colour, normal quality, A4/US Letter)	42 ppm
Warm-up time	11 s
Warm-up time (from sleep mode)	74 s
Time to first page (black, normal)	5 s
Time to first page (colour, normal)	5.3 s
Print margins (top, bottom, right, left)	4 mm
Booklet printing function	Yes
N-up printing	2, 4, 6, 8, 9, 16
Secure printing	Yes
Watermark printing	Yes

Features

Specification	Value
Maximum duty cycle	120000 pages per month
Recommended duty cycle	0 - 10000 pages per month
Printing colours	Black, Cyan, Magenta, Yellow
Number of print cartridges	4
Page description languages	PCL 5e, PCL 6, PDF 1.7, PostScript 3, TIFF, XPS
Printer fonts	PCL, PostScript
Number of printer fonts	219
Number of PCL fonts	83
Number of PostScript fonts	136

Input & output capacity

Specification	Value
Total number of input trays	2
Total input capacity	700 sheets
Total output capacity	500 sheets
Paper tray 1 input capacity	550 sheets
Paper input type	Paper tray
Multi-Purpose tray	Yes
Multi-Purpose tray input capacity	150 sheets
Maximum input capacity	3250 sheets

Paper handling

Specification	Value
Maximum ISO A-series paper size	A4
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Lightweight paper, Plain paper, Pre-printed, Recycled paper
ISO A-series sizes (A0...A9)	A4
Custom media width	76 - 190 mm
Custom media length	216 - 356 mm
Paper tray media weight	60 - 220 g/m²

Ports & interfaces

Specification	Value
Standard interfaces	Ethernet, USB 3.2 Gen 1 (3.1 Gen 1)
Direct printing	Yes
USB port	Yes
USB 2.0 ports quantity	2
USB connector	USB Type-A / USB Type-B
Optional connectivity	Wireless LAN

Network

Specification	Value
Ethernet LAN	Yes
Network ready	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Near Field Communication (NFC)	Yes
Security algorithms	256-bit AES, HTTPS, IPSEC, SNMP, SSL/TLS
Supported network protocols (IPv4)	TCP/IP: HTTP/HTTPS, IPP, LPR/LDP, Raw Socket Printing/Port 9100, IPv4/IPv6, WSD
Management protocols	DHCP, SNMP, WINS, HTTP, HTTPS, TLS, SNTP, MDNS
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service, Xerox PrintBack

Performance

Specification	Value
Internal memory	2048 MB
Built-in processor	Yes
Processor frequency	1050 MHz
Sound pressure level (printing)	56.2 dB
Sound power level (standby)	33.6 dB

Design

Specification	Value
Market positioning	Home & office
Product colour	Blue, White
Built-in display	Yes
Display	LCD
Colour display	Yes
Display diagonal	12.7 cm (5")
Touchscreen	Yes
Control type	Touch

Power

Specification	Value
Power consumption (printing)	730 W
Power consumption (ready)	74 W
Power consumption (PowerSave)	0.84 W

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11, SuSE Linux 11.1, SuSE Linux 11.2, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 9.3
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 32 °C
Storage temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	10 - 85%

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width	427.4 mm
Depth	465.5 mm
Height	434.4 mm
Weight	27.6 kg

Packaging data

Specification	Value
Package width	580 mm
Package depth	634 mm
Package height	607 mm
Package weight	34 kg

Packaging content

Specification	Value
Cartridge(s) included	Yes
Included cartridge capacity (black)	5000 pages
Included cartridge capacity (CMY)	2400 pages
Cables included	AC
Drivers included	Yes
Manual	Yes
Quick start guide	Yes

Other features

Specification	Value
Languages support	CAT, Czech, Danish, German, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Turkish, Ukrainian
