Designjet Z6810 large format printer Thermal inkjet Colour
2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Model Z6810Part no. 2QU14A#B19EAN 192018992016
37 specifications
- Storage500 GB
- Weight190 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- Maximum print sizeA1 (594 x 841 mm)
Overview
- Storage
- 500 GB
- Weight
- 190 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- Maximum print size
- A1 (594 x 841 mm)
- Brand
- HP
- Category
- Large Format Printer
- Model
- Z6810
- Part number
- 2QU14A#B19
- EAN / UPC
- 192018992016
- Also known as
- HP Designjet Z6810 large format printer Thermal inkjet Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Specifications
37 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 8 |
| Page description languages | HP-GL/2, HP-RTL |

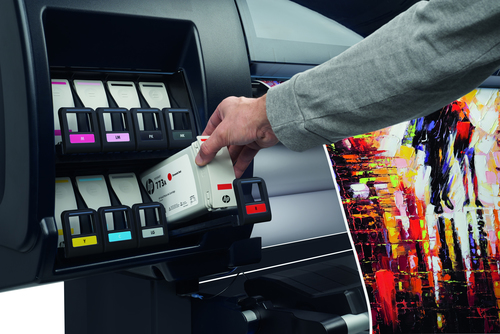

| Printing colours | Chromatic red, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo black, Yellow |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Bond paper, Coated paper |
| ISO A-series sizes (A0...A9) | A1 |
| Media thickness | 0.6 mm |
| Maximum roll diameter | 17 cm |
| Media width (rolls) | 280 - 1524 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | No |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Internal storage capacity | 500 GB |
| Storage media | HDD |
Brand-specific features
| Specification | Value |
|---|---|
| HP Jetdirect | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 270 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 2430 mm |
| Depth | 690 mm |
| Height | 1370 mm |
| Weight | 190 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 2684 mm |
| Package depth | 750 mm |
| Package height | 1200 mm |
| Package weight | 222 kg |
