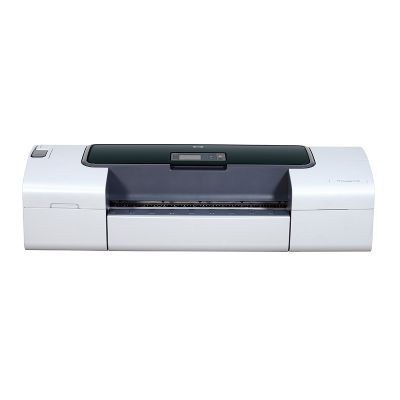

Designjet T1120 24-in Printer
Model Designjet T1120 24-in PrinterPart no. CK837A#B1K1052EAN 8844206117450
114 specifications
- Storage80 GB
- Weight47 kg
- ColourYes
- Total number of input trays1
- Maximum print sizeA1 (594 x 841 mm)
- Power consumption (PowerSave)27 W
Overview
- Storage
- 80 GB
- Weight
- 47 kg
- Colour
- Yes
- Total number of input trays
- 1
- Maximum print size
- A1 (594 x 841 mm)
- Power consumption (PowerSave)
- 27 W
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet T1120 24-in Printer
- Part numbers
- CK837A#B1K1052, CK837A, CK837A#B1K-A1
- EAN / UPC
- 8844206117450, 884420611745, 884420611752, 884420611769 +10 more
- Also known as
- HP Designjet T1120 24-in Printer
Specifications
114 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | HP-GL/2, HP-RTL |
| Printing colours | Cyan, Magenta, Matte black, Photo black, Yellow |
| Print cartridge volume (metric) | HP 72 Ink Cartridge: cyan, gray, magenta, matte black, photo black, yellow (130 ml); cyan, gray, magenta, photo black, yellow (69 ml) |
| Print head | 3 (matte black and yellow, magenta and cyan, photo black and gray) |
| Print head nozzles | 2112 |
| Colour management | HP Color Center, HP Vivera inks, Closed-loop color system |
| Colour printing technology | HP Colour Layering technology |
| Print speed (colour image, best quality, glossy paper) | 2.4 m²/hr 26 ft²/hr |
| Print speed (colour image, draft quality, coated paper) | 34 m²/hr 364 ft²/hr |
| Print speed (colour image, normal quality, coated paper) | 93 ft²/hr 8.6 m²/hr |
| Print speed (colour image, normal quality, glossy paper) | 61 ft²/hr 5.6 m²/hr |
| Print speed (imperial) | 72 D prints per hour |
| Print speed colour line drawing (draft, A1 plain paper) | 56 A1 prints per hour |
| Print time black and white line drawing (draft, metric A1 plain paper) | 35 sec/page |
| Print time colour line drawing (draft, A1) | 35 sec/page |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 1 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Media types supported | Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, coloured), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, ind |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Media thickness | > 0.8 |
| Maximum roll length | 91.4 m |
| Maximum roll diameter | 13.5 cm |
| Print margin cut-sheet | 5 x 16.75 x 5 x 5 mm |
| Print margin roll | 5 mm |
| Maximum media width | 610 mm |
| Roll top margin | 5 mm |
| Roll paper | Yes |
| Paper handling | Sheet feed, roll feed, output basket |
| Duplex print options | None (not supported) |
| Maximum length of sheet media | 1676.4 mm |
| Standard media sizes | A4, A3, A2, A1 |
| Custom media sizes | 216 x 279 to 610 x 1676 mm |
| Maximum paper trays | 1 |
| Media handling | Sheet feed, roll feed, automatic cutter |
| Media sizes supported (imperial) | A; B; C; D |
| Media thickness (by paper path) | Up to 0.8 mm |
| Media weights by paper path | 60 to 328 g/m² |
| Non-printable area roll media (imperial) | 0.2 x 0.2 x 0.2 x 0.2 in (borderless on photo papers) |
| Paper handling standard/input | Roll loading; single-sheet rear tray |
| Paper handling standard/output | Basket |
| Recommended media weight | 60 - 328 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Internal storage capacity | 80 GB |
| Storage media | HDD |
| Built-in processor | Intel® Pentium® M |
| Processor frequency | 800 MHz |
| Certification | WEEE; EU RoHS; China RoHS; REACH; EuP |
| Storage drive type | Standard, 80 GB |
Power
| Specification | Value |
|---|---|
| Power requirements | Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A max |
| Power consumption (PowerSave) | 27 W |
| Power consumption (standby) | 43 W |
| Power consumption (typical) | 200 W |
| Power consumption (active) | 200 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 59 - 95 °F |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
| Recommended operating temperature range (T-T) | 15 - 35 °C |
| Operating altitude (imperial) | 9842 ft |
System requirements
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer (5.0 or higher); Netscape (6.0.1 or higher); Safari for Mac OS (10.3 or higher); Mozilla (1.5 or higher) |
| Compatible operating systems | Windows Vista (32 and 64-bit), Microsoft Windows Server 2008 (32 and 64-bit), XP Home and Professional (32 and 64-bit), Server 2003 (32 and 64-bit), Mac OS X v10.4, Mac v10.5, Novell NetWare 5.x, 6.x, Citrix XenApp, Citrix XenServer |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1262 x 661 x 391 mm |
| Weight | 47 kg |
| Product dimensions when open (LxWxD) | 126.2 cm (49.7") |
| Size (imperial) | 61 cm (24") |
| Maximum dimensions (W x D x H) | 1262 x 732 x 1047 mm |
| Weight (imperial) | 103.6 lb |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 89 kg |
| Package dimensions (WxDxH) | 1440 x 766 x 623 mm |
| Bundled software | HP Instant Printing Utility |
| Package dimensions (W x D x H) | 1439.9 x 766.1 x 772.2 mm (56.7 x 30.2 x 30.4") |
| Package weight (imperial) | 101.6 kg (224 lbs) |
Other features
| Specification | Value |
|---|---|
| Minimum system requirements for Macintosh | Mac OS X v10.4 or higher: PowerPC G3 or Intel Core Processor, 256 MB RAM, 1 GB available hard disk space |
| Line accuracy | +/- 0.1% |
| Minimum system requirements | Microsoft Windows XP Home, XP Professional: Intel Pentium 4 (1 GHz), 512 MB RAM, 2 GB available hard disk space |
| Coated paper | Yes |
| Electromagnetic compatibility | Compliance for Class A ITE products: EU (EMC Directive) |
| Embedded web server | Yes |
| Glossy paper | Yes |
| Maximum media length (imperial) | 66" |
| Print resolution (colour, normal quality) | 600 x 600 DPI |
| Printer management | HP Web Jetadmin, HP Printer Utility |
| Safety | EU (LVD and EN60950-1 compliant), Russia (GOST) |
| Compatible ink types, supplies | Dye-based (C, M, Y, G, PK), pigment-based (MK) |
| Acoustic power emissions | 6.9 B(A) (active/printing), 4.4 B(A) (standby) |
| Acoustic pressure emissions | 57 dB |
| Print quality (colour, best quality) | 2400 DPI |
| Acoustic power emissions (standby) | 44 dB |
| Acoustic pressure emissions (standby) | 29 dB(A) |
| Control panel | 240 x 160 pixel greyscale graphical display with Asian fonts support, 4 direct-access buttons and 7 navigation buttons, 2 bicolor lights (Ready, Processing, Attention, Error) |
| Driver LAN | Novell NetWare 5.x/6.x clients |
| Driver updates | Latest driver upgrade information available on http:// |
| Ink drop | 6 pl (C, M, PK, G), 9 pl (Y, MK) |
| JetDirect Compatible Products | Yes |
| Line width minimum | 0.002 in |
| Maximum print length (imperial) | 300 ft (operating system and application dependent) |
| Media sizes standard (imperial rolls) | Letter to D-size sheets; 11 to 24-in rolls |
| Non-printable area (imperial cut-sheet) | 0.2 x 0.67 x 0.2 x 0.2 in |
| Print quality (black, best quality) | 2400 x 1200 DPI |
| Print quality (black, draft quality) | 600 DPI |
| Print quality (black, normal quality) | 600 DPI |
| Roll maximum input | 1 |
