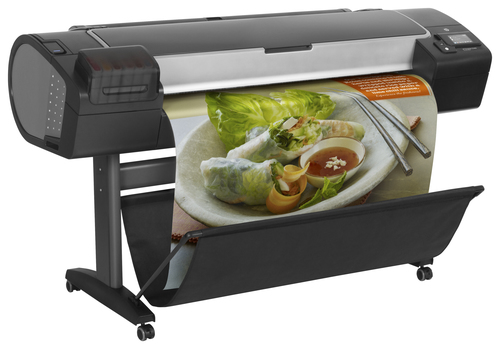

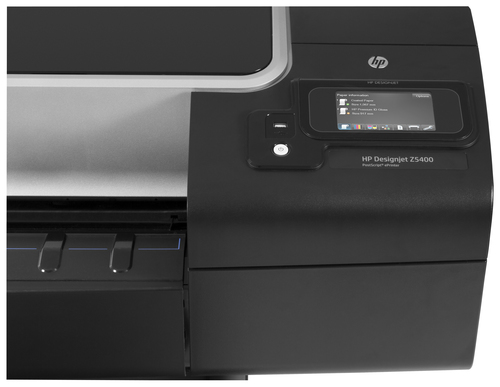

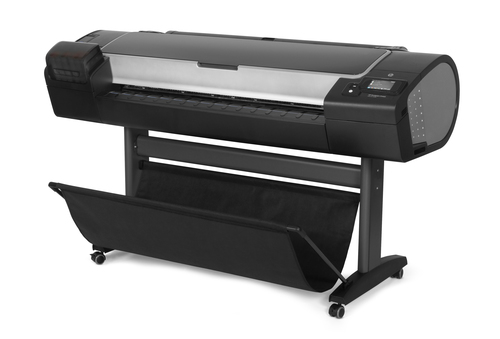

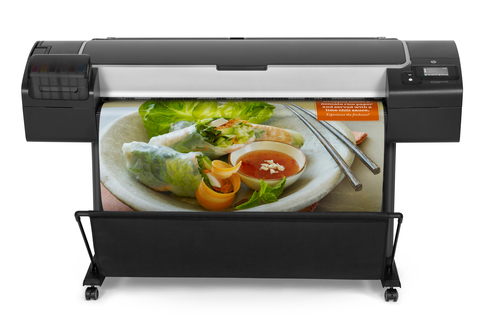

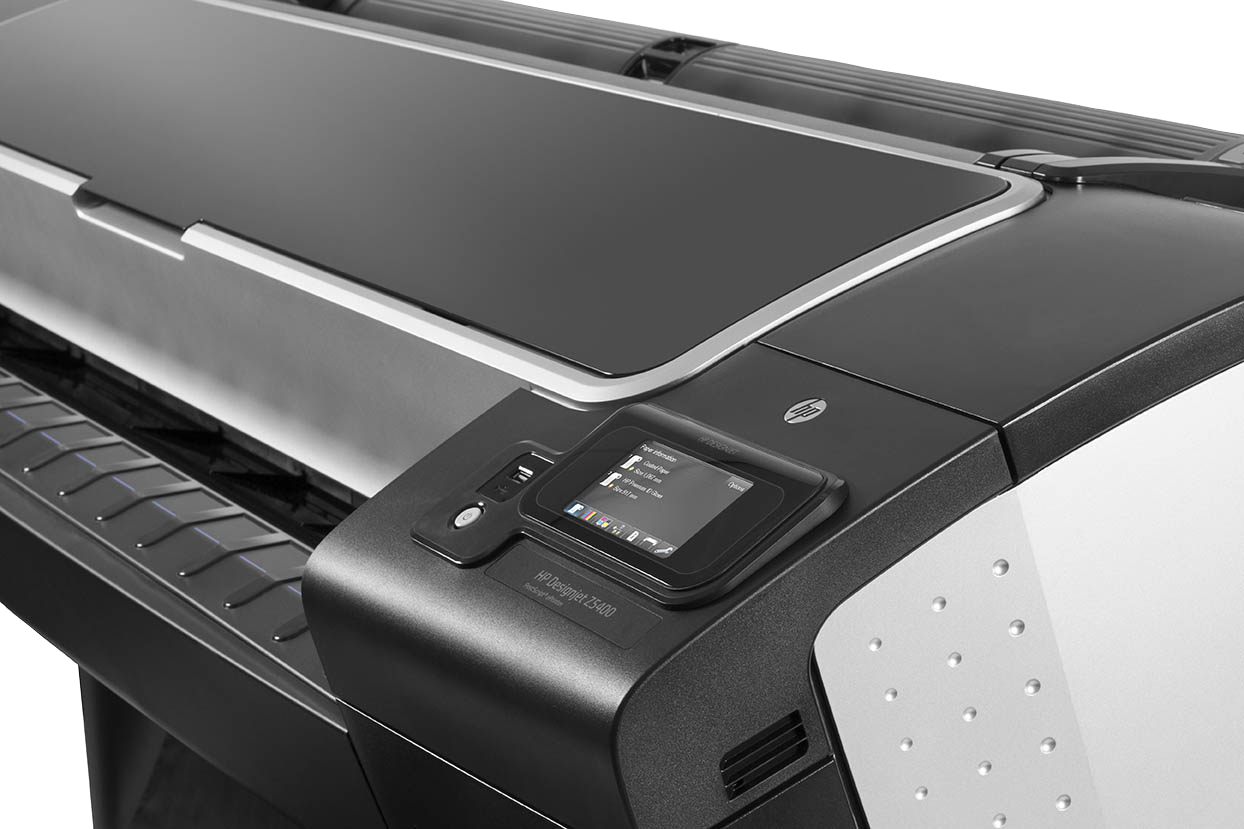

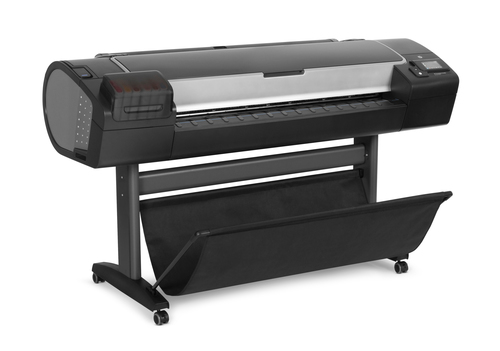

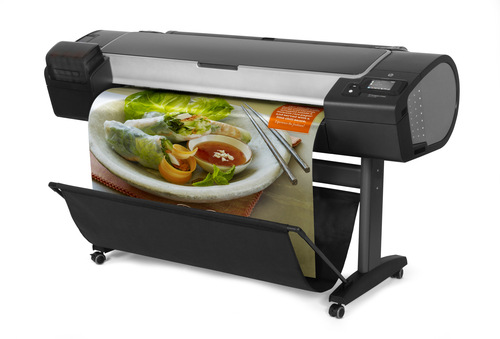

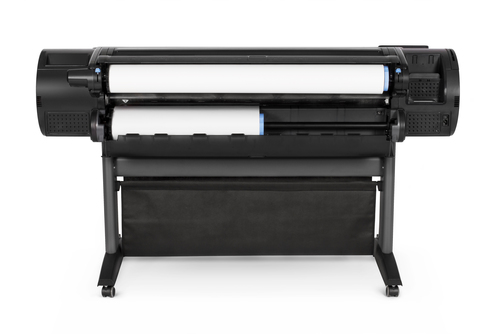

HP Designjet Z5400
1118mm PostScript Printer
Model Z5400Part no. E1L21AEAN 8877587054526
50 specifications
- Memory65536 MB
- Storage320 GB
- Weight86 kg
- ColourYes
- Print technologyThermal inkjet
- Maximum print size1118 x 1676 mm
Overview
- Memory
- 65536 MB
- Storage
- 320 GB
- Weight
- 86 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Maximum print size
- 1118 x 1676 mm
- Brand
- HP
- Category
- Large Format Printer
- Model
- Z5400
- Part number
- E1L21A
- EAN / UPC
- 8877587054526, 887758696156, 887758705421, 887758705438 +5 more
- Also known as
- HP Designjet Z5400 1118mm PostScript Printer
Specifications
50 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3, PDF 1.7, PostScript 3, TIFF |
| Printing colours | Cyan, Light grey, Magenta, Matte black, Photo black |
| Print cartridge volume (metric) | HP 772 Ink Cartridge: cyan, magenta, yellow, light grey, matte black, photo black (300 ml); HP 70 Ink Cartridge: cyan, magenta, yellow, light grey, matte black, photo black (130 ml) |
| Print head | 3 (magenta and yellow, matte black and cyan, photo black and light grey) |
| Print speed (normal quality) | 53 m²/hr |
| Print head nozzles | 2112 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 1118 x 1676 mm |
| Media types supported | Photographic, proofing, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit, fabric/textile |
| Paper tray media types | Banner, Bond paper, Coated paper |
| Maximum roll diameter | 13.5 cm |
| Maximum media width | 1118 mm |
| Maximum length of sheet media | 1676 mm |
| Standard media sizes | A4; A3; A2; A1; A0 |
| Custom media sizes | 210 x 279 to 1118 x 1676 mm |
| Media handling | Two automatic roll feeds; smart roll-switching; sheet feed; media output bin; automatic cutter (cuts all media except canvas and banners) |
| Media thickness (by paper path) | Up to 0.5 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Internal memory | 65536 MB |
| Internal storage capacity | 320 GB |
| Storage media | HDD |
| Certification | ENERGY STAR; WEEE; EU RoHS; REACH |
Power
| Specification | Value |
|---|---|
| Power requirements | Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A max |
| Power consumption (typical) | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1770 mm |
| Depth | 721 mm |
| Height | 1050 mm |
| Weight | 86 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1930 mm |
| Package depth | 770 mm |
| Package height | 710 mm |
| Package weight | 115 kg |
| Bundled software | Printer driver, HP Instant Printing PRO for Windows, HP Printer Utility including HP Color Center, HP Designjet Excel Accounting Tool |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.1% |
| Electromagnetic compatibility | Compliant with Class B requirements: EU (EMC Directive) |
| Functions | |
| Safety | EU (LVD and EN 60950-1 compliant); Russia/Kazakhstan (EAC) |
| Compatible ink types, supplies | Pigment-based |
| Acoustic power emissions | 6.7 B(A) |
| Acoustic pressure emissions (standby) | 23 dB(A) |
| Ink drop | 4 pl (lg, pK), 6 pl (C, M, Y, mK) |
| Roll maximum input | 2 |
