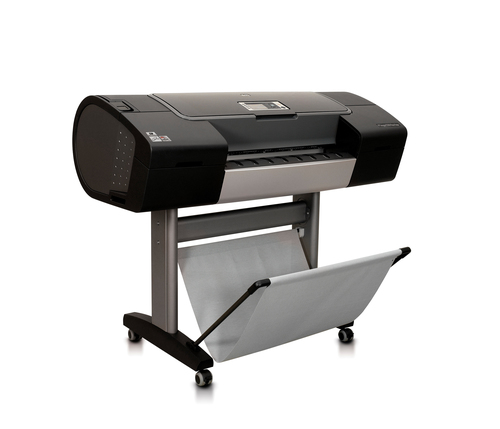

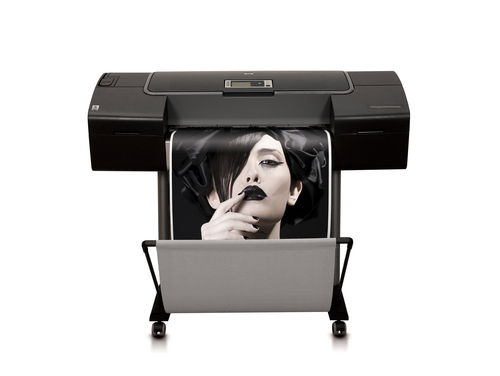

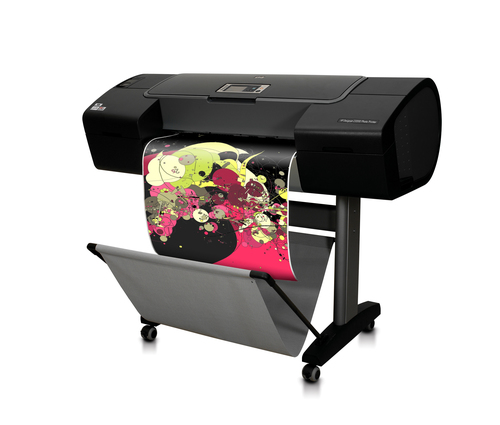

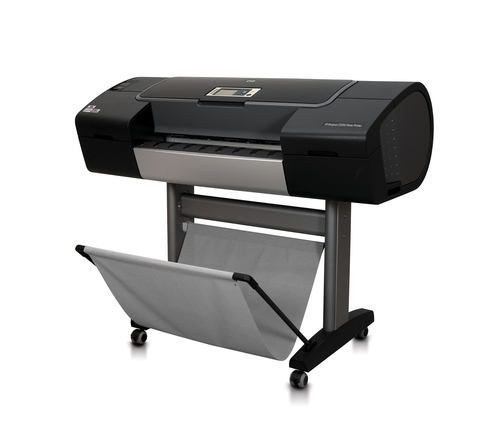

Designjet Z3200 large format printer Colour
2400 x 1200 DPI 610 x 1067 mm Ethernet LAN
Model Z3200Part no. Q6720BEAN 8861116443080
60 specifications
- Memory256 MB
- Storage80 GB
- Weight65 kg
- ColourYes
- Maximum print size610 x 1067 mm
- Power consumption (off)0 W
Overview
- Memory
- 256 MB
- Storage
- 80 GB
- Weight
- 65 kg
- Colour
- Yes
- Maximum print size
- 610 x 1067 mm
- Power consumption (off)
- 0 W
- Brand
- HP
- Category
- Large Format Printer
- Model
- Z3200
- Part numbers
- Q6720B, Q6718A
- EAN / UPC
- 8861116443080, 884420138617, 884420138624, 884420138631 +22 more
- Also known as
- HP Designjet Z3200 large format printer Colour 2400 x 1200 DPI 610 x 1067 mm Ethernet LAN
Specifications
60 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 12 |
| Printing colours | Blue, Gloss enhancer, Green, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo black, Red, Yellow |
| Print speed (best quality) | 12.4 min/page |
| Print speed (normal quality) | 7.2 min/page |
| Print head nozzles | 2112 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 610 x 1067 mm |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Media thickness | 31.5 mm |
| Maximum roll length | 91.4 m |
| Maximum roll diameter | 13.6 cm |
| ANSI paper sizes | A, B, C, D |
| Supported media weight (imperial) | 60.3 kg (133 lbs) |
| Media thickness (by paper path) | 31.5mm |
| Recommended media weight | 500 g/m² |
| Recommended media weight (imperial) | 500 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | Fast Ethernet |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Internal storage capacity | 80 GB |
| Storage media | HDD |
| Processor frequency | 600 MHz |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0 W |
| Power consumption (typical) | 200 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 41 - 104 °F |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | - Microsoft Windows Vista (32/64-bit), XP Home, XP Professional, XP Professional x64, Server 2008 (32/64-bit), Windows Server 2003 (32/64 bit), Windows Terminal Services - Citrix MetaFrame - Mac OS X v 10.4, v 10.5 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1262 x 690 x 1047 mm |
| Weight | 65 kg |
| Product dimensions when open (LxWxD) | 126.2 cm (49.7") |
| Size (imperial) | 61 cm (24") |
| Maximum dimensions (W x D x H) | 1262 x 690 x 1047 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 102 kg |
| Package dimensions (WxDxH) | 1470 x 780 x 740 mm |
| Bundled software | HP Printer Utility |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.2% |
| Coated paper | Yes |
| Embedded web server | Yes |
| Glossy paper | Yes |
| Maximum media length (imperial) | 66" |
| Opaque film | Yes |
| Opaque paper | Yes |
| Photo paper | Yes |
| Proofing paper | Yes |
| Minimum line width | 0.0558 mm |
| Print quality (colour, best quality) | 2400 DPI |
| Ink drop | 4 pl (lc, lm, lg, pK, E, G), 6 pl (M, Y, mK, R, GN, B) |
| JetDirect Compatible Products | Yes |
| Print quality (black, draft quality) | 1200 DPI |
| Print quality (black, normal quality) | 1200 DPI |
| Roll maximum input | 1 |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 1 pc(s) |
