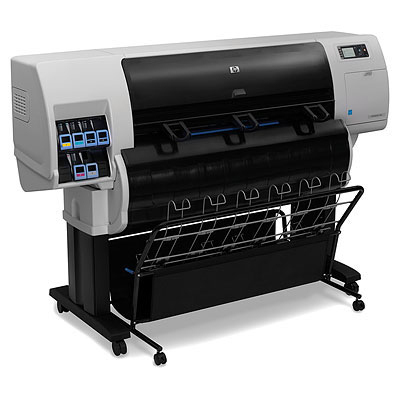

T7100 + CQ745A
Model T7100 + CQ745APart no. CQ105A#B19#*KIT3
35 specifications
- Memory1024 MB
- Weight187 kg
- ColourYes
- Maximum print sizeA1 (594 x 841 mm)
- Power supply typeAC
- Operating temperature (T-T)5 - 40 °C
Overview
- Memory
- 1024 MB
- Weight
- 187 kg
- Colour
- Yes
- Maximum print size
- A1 (594 x 841 mm)
- Power supply type
- AC
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- HP
- Category
- Large Format Printer
- Model
- T7100 + CQ745A
- Part number
- CQ105A#B19#*KIT3
- Also known as
- HP Designjet T7100 + CQ745A large format printer Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Specifications
35 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Printing colours | Black, Cyan, Grey, Magenta, Yellow |
| Print speed (normal quality) | 165 pph A1 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| ISO A-series sizes (A0...A9) | A1 |
| Roll top margin | 5 mm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Sound power level (standby) | 38 dB |
| Sound pressure level (printing) | 53 dB |
| Memory type | RAM |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power requirements | 100 - 127, 220 - 240V |
| Power consumption (typical) | 420 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1974 x 700 x 1374 mm |
| Weight | 187 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 220 kg |
| Package dimensions (WxDxH) | 2232 x 761 x 1269 mm |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Coated paper | Yes |
| Glossy paper | Yes |
| Opaque film | Yes |
| Photo paper | Yes |
| Vinyl media | Yes |
