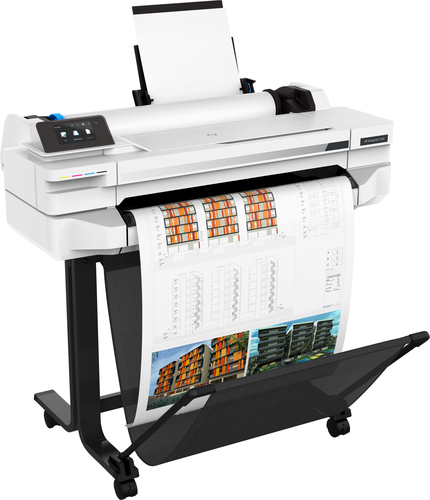

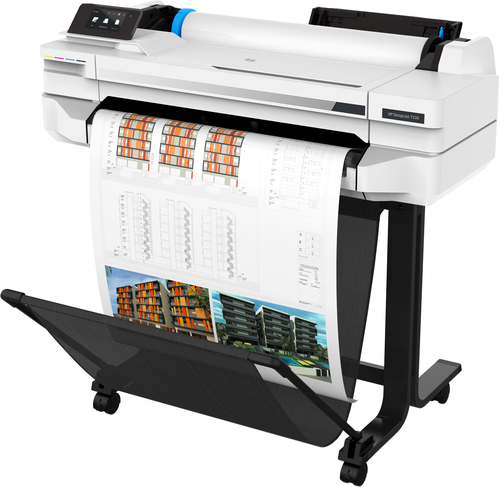

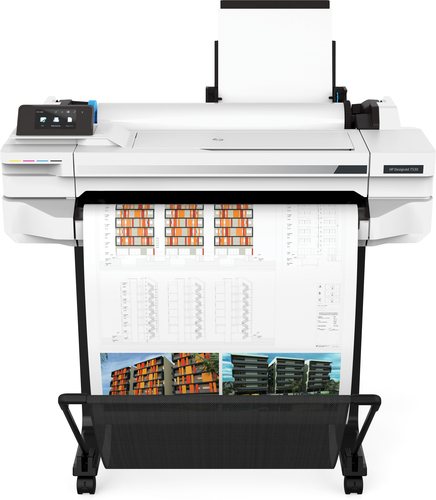

Designjet T530 large format printer Wi-Fi Thermal inkjet Colour
2400 x 1200 DPI Ethernet LAN
Model T530Part no. 5ZY60A#B19EAN 193808354663
42 specifications
- Memory1 GB
- Weight26 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- Paper tray media typesBond paper, Coated paper
Overview
- Memory
- 1 GB
- Weight
- 26 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- Paper tray media types
- Bond paper, Coated paper
- Brand
- HP
- Category
- Large Format Printer
- Model
- T530
- Part number
- 5ZY60A#B19
- EAN / UPC
- 193808354663
- Also known as
- HP Designjet T530 large format printer Wi-Fi Thermal inkjet Colour 2400 x 1200 DPI Ethernet LAN
Specifications
42 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, HP-RTL |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head | 1376 |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Bond paper, Coated paper |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Media thickness | 0.3 mm |
| Maximum roll diameter | 10 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Direct printing | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Sound power level (standby) | 16 dB |
| RAM capacity | 1 GB |
| Certification | ENERGY STAR; EPEAT; Gold IPv6 Ready; Wi-Fi CERTIFIED; Windows 10 Compatible |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 35 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 987 mm |
| Depth | 530 mm |
| Height | 932 mm |
| Weight | 26 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1090 mm |
| Package depth | 570 mm |
| Package height | 480 mm |
| Package weight | 48.5 kg |
| Cartridge(s) included | Yes |
| Quick start guide | Yes |
