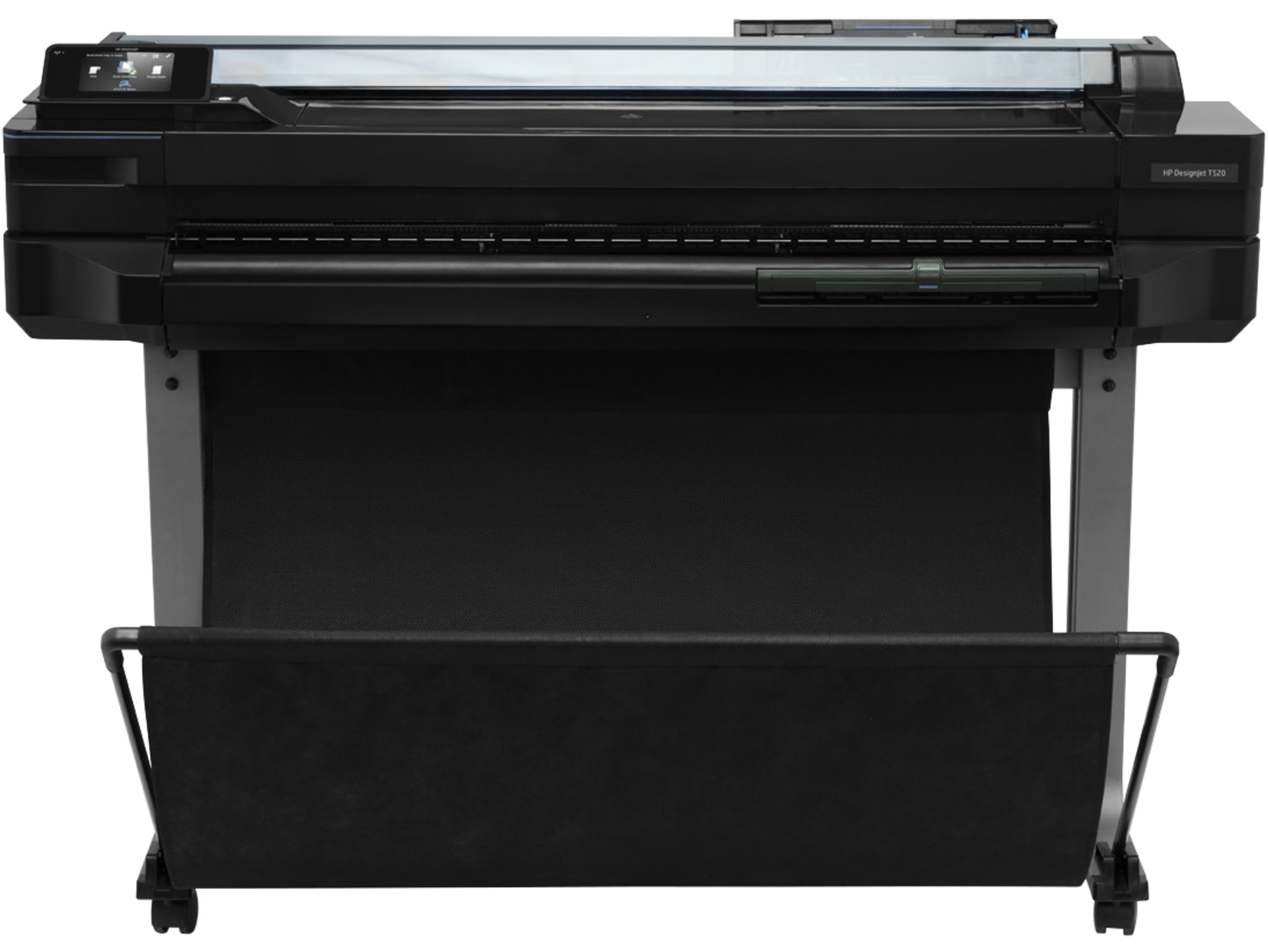

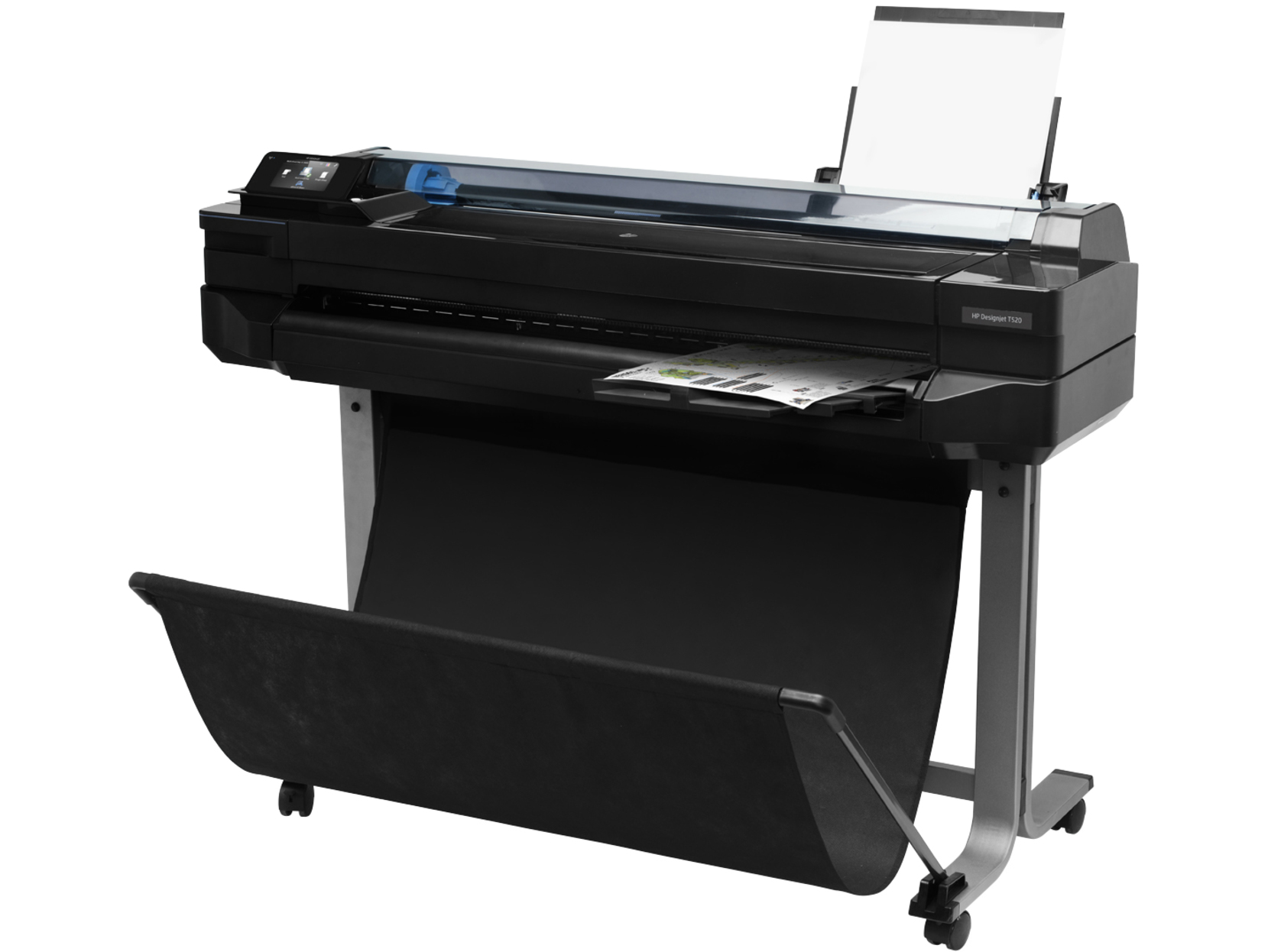

HP T520 36"
Model T520 36"Part no. CQ893A#B19?KIT
48 specifications
- Memory1024 MB
- Weight39.2 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- Maximum print sizeA0 (841 x 1189 mm)
Overview
- Memory
- 1024 MB
- Weight
- 39.2 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- Maximum print size
- A0 (841 x 1189 mm)
- Brand
- HP
- Category
- Large Format Printer
- Model
- T520 36"
- Part number
- CQ893A#B19?KIT
- Also known as
- HP Designjet T520 914mm Printer
Specifications
48 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3 |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head | 1 |
| Print speed (best quality) | 11.4 m/p |
| Print speed (normal quality) | 9.1 m/p |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Bond paper, Coated paper, Cut sheet, Glossy paper, Matte paper, Photo paper, Plain paper, Recycled paper, Roll |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Cut sheets | Yes |
| Media thickness | 0.29972 mm |
| Maximum roll length | 0.914 m |
| Maximum roll diameter | 9.9 cm |
| Print margin roll | 5 mm |
| Roll top margin | 5 mm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Supported network protocols | IPv6 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Internal memory | 1024 MB |
| Maximum internal memory | 1024 MB |
| Sound power level (standby) | 16 dB |
| Sound pressure level (printing) | 48 dB |
| Certification | FCC, ICES, EMC/R&TTE, ACMA, RSM, CCC, VCCI, KCC, WEEE, RoHS, REACH, EuP, FEMP |
Power
| Specification | Value |
|---|---|
| Power consumption (PowerSave) | 4.5 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 35 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 39.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 62 kg |
Other features
| Specification | Value |
|---|---|
| Minimum system requirements | Intel Pentium AMD K6/Athlon/Duron 1GB RAM 1GB HDD |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
| Safety | CSA, LVD, EN, GOST, PSB, CCC, NYCE |
